7203A Series
Manufacturer: Belden Inc.
Beta
⌘K

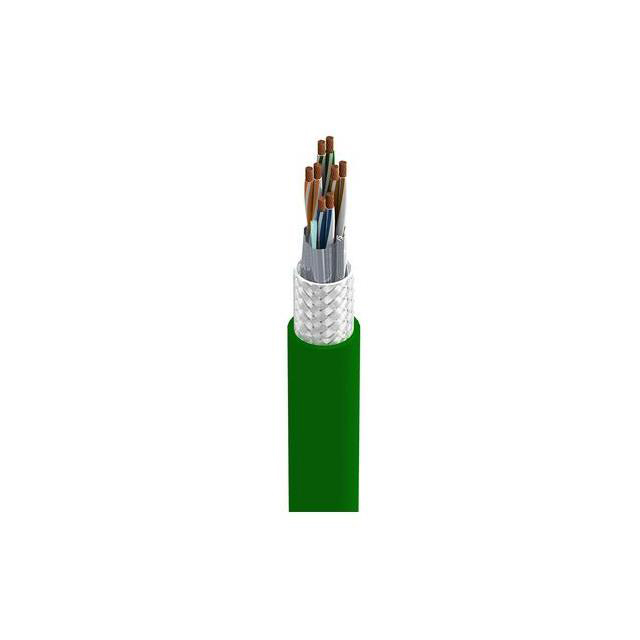

MULTI-PAIR 8COND 24AWG GRN
| Part | Shield Coverage | Shield Material | Conductor Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Jacket Color | Voltage | Number of Conductors | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Cable Type | Conductor Insulation | Features | Jacket (Insulation) Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Copper Bare | 304.8 m | 1000 ft | 41 | 40 | -20 ░C | 60 °C | Braid Foil | Green | 300 VDC | 8 | Industrial | 9.2 mm | 0.362 in | 1.143 mm | 0.045 in | Multi-Pair | Foam Polyethylene (FPE) | Drain Wire Oil Resistant | Poly-Vinyl Chloride (PVC) | 24 AWG |
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Copper Bare | 152.4 m | 500 ft | 41 | 40 | -20 ░C | 60 °C | Braid Foil | Green | 300 VDC | 8 | Industrial | 9.2 mm | 0.362 in | 1.143 mm | 0.045 in | Multi-Pair | Foam Polyethylene (FPE) | Drain Wire Oil Resistant | Poly-Vinyl Chloride (PVC) | 24 AWG |
