R16108 Series

Catalog

N / STRAIGHT PLUG FULL CRIMP-TYP

Part	Center Contact Plating	Insertion Loss	Voltage Rating	Body Finish	Mating Cycles	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Housing Color	Connector Type	Cable Group	Fastening Type	Connector Style	Ingress Protection	Contact Termination	Shield Termination	Number of Ports	Center Contact Material	Frequency - Max [Max]	Mounting Type	Impedance	Includes	Cable Group

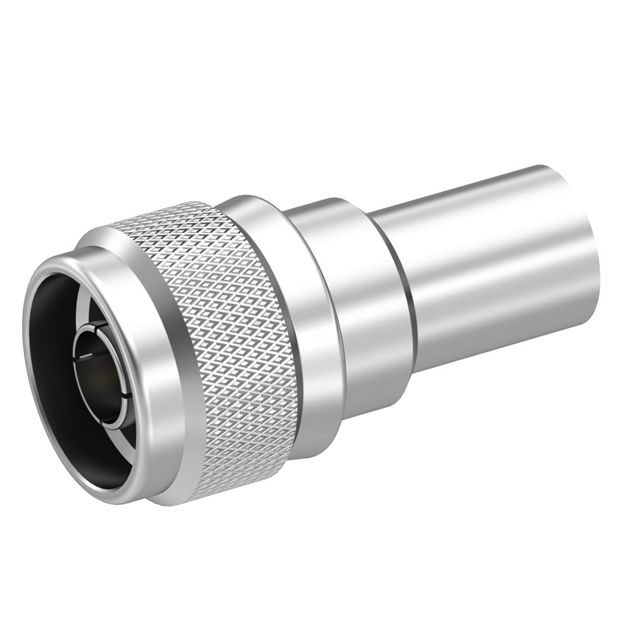

Radiall USA, Inc. R161088000	Gold	0.15 dB	1400 V	White Bronze	500	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass	Silver	Plug Male Pin	RG-214	Threaded	N Type	IP65 - Dust Tight Water Resistant	Crimp	Crimp	1	Brass	11 GHz	Free Hanging (In-Line)	50 Ohms

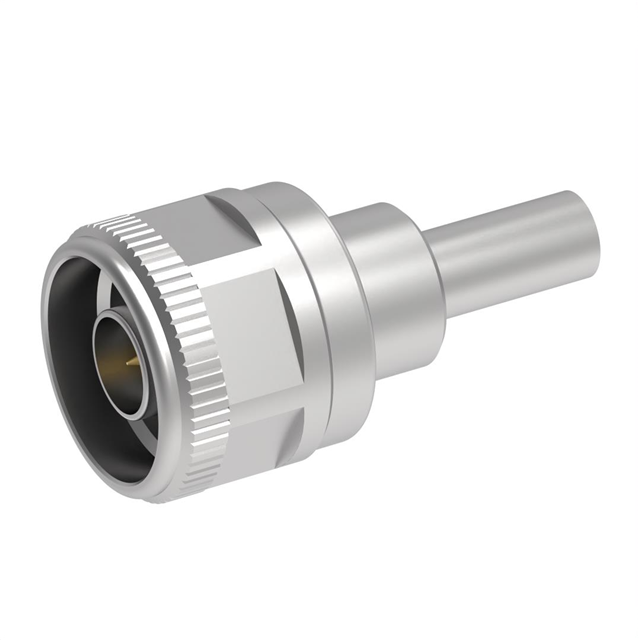

Radiall USA, Inc. R161083137	Silver		850 V		500	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass		Plug Male Pin	223 400 RG-142	Threaded	N Type		Crimp	Crimp	1	Brass	11 GHz	Free Hanging (In-Line)	50 Ohms	1 Connector 1 Contact 1 Ferrule
Radiall USA, Inc. R161083137W	Silver	0.15 dB	850 V	White Bronze	500	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass	Silver	Plug Male Pin	223 400 RG-142	Threaded	N Type	IP67 - Dust Tight Waterproof	Crimp	Crimp	1	Brass	11 GHz	Free Hanging (In-Line)	50 Ohms

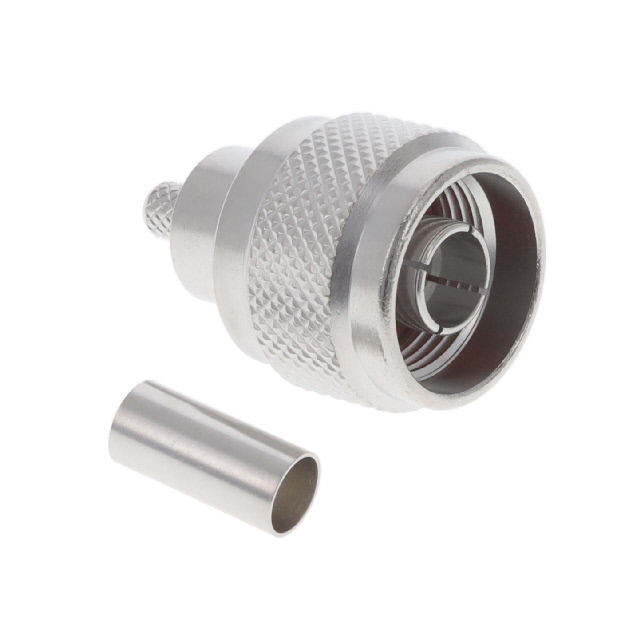

Radiall USA, Inc. R161083000	Gold	0.15 dB	850 V	White Bronze	500	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass	Silver	Plug Male Pin	223 400 RG-142	Threaded	N Type	IP65 - Dust Tight Water Resistant	Crimp	Crimp	1	Brass	11 GHz	Free Hanging (In-Line)	50 Ohms

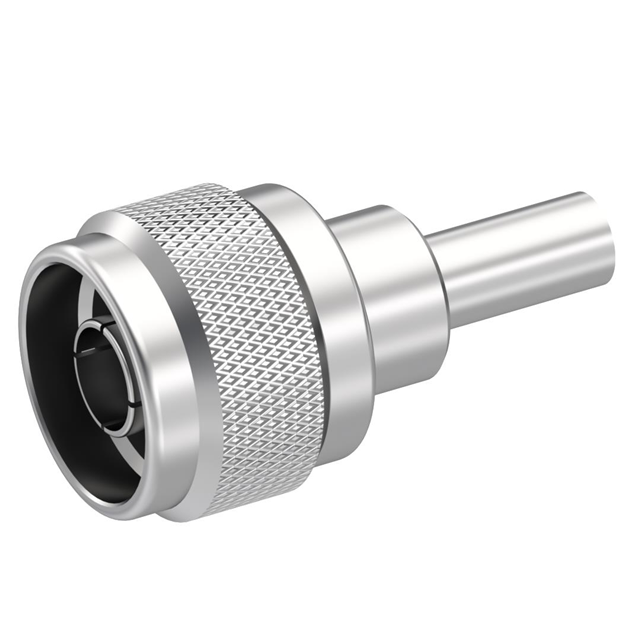

Radiall USA, Inc. R161082000	Gold	0.15 dB	850 V	White Bronze	500	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass	Silver	Plug Male Pin	RG-58	Threaded	N Type	IP65 - Dust Tight Water Resistant	Crimp	Crimp	1	Brass	11 GHz	Free Hanging (In-Line)	50 Ohms		141
Radiall USA, Inc. R161088000W	Gold	0.15 dB	1400 V	White Bronze	500	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass	Silver	Plug Male Pin	RG-214	Threaded	N Type	IP65 - Dust Tight Water Resistant	Crimp	Crimp	1	Brass	11 GHz	Free Hanging (In-Line)	50 Ohms
