337-060 Series
Manufacturer: EDAC Inc.
Beta
⌘K

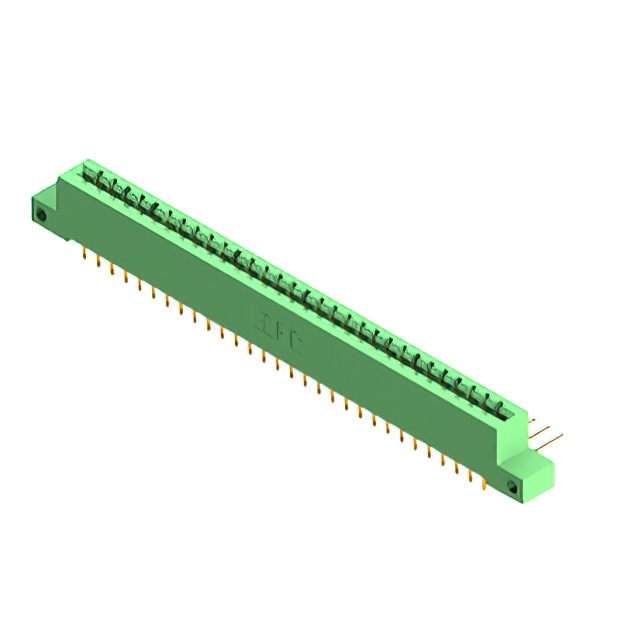

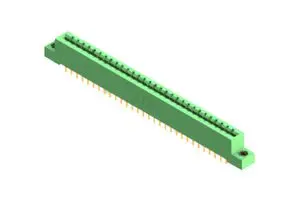

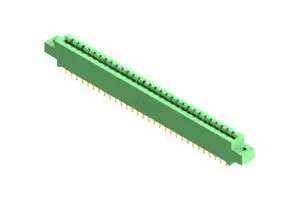

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Color | Termination | Number of Positions | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Contact Finish | Contact Material | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Rows [custom] | Contact Type | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | 3.25 mm | 0.128 " | Dual | Green | Solder | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | 3.96 mm | 0.156 " | Dual | Green | Wire Wrap | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | 2.95 mm | 0.116 " | Dual | Green | Wire Wrap | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | Floating Bobbin Flush Mount | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | 2.95 mm | 0.116 " | Dual | Green | Solder | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | Floating Bobbin Top Mount Opening | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | 3.96 mm | 0.156 " | Dual | Green | Solder | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | Flush Mount Top Opening Unthreaded | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | Dual | Green | Solder | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | Dual | Green | Solder | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Dual | Green | Solder | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | M3 Threaded Insert Top Mount Opening | Card Extender | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Right Angle Through Hole | 3.25 mm | 0.128 " | Dual | Green | Wire Wrap | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | Flush Mount Side Opening Unthreaded | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | 2.95 mm | 0.116 " | Dual | Green | Wire Wrap | 60 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | Gold | Copper Alloy | Non Specified - Dual Edge | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Cantilever | Floating Bobbin Flush Mount |
