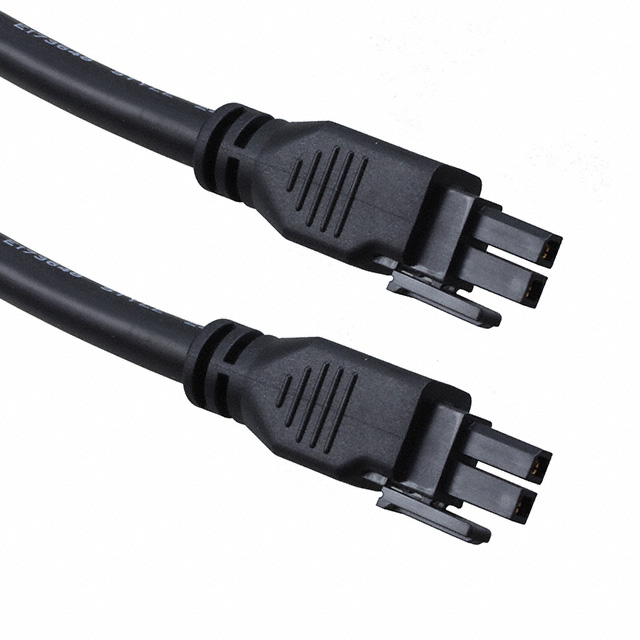

245136 Series

Manufacturer: Molex

Catalog

MEGAFIT 2 CIRCUIT BLACK 500MM OV

Part	Pitch - Connector	Pitch - Connector	Contact Finish	Cable Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Positions	Length [x]	Length [x]	Connector Type	Number of Rows
Molex 2451360205	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	2	1.64 ft	500 mm	Socket to Socket	1

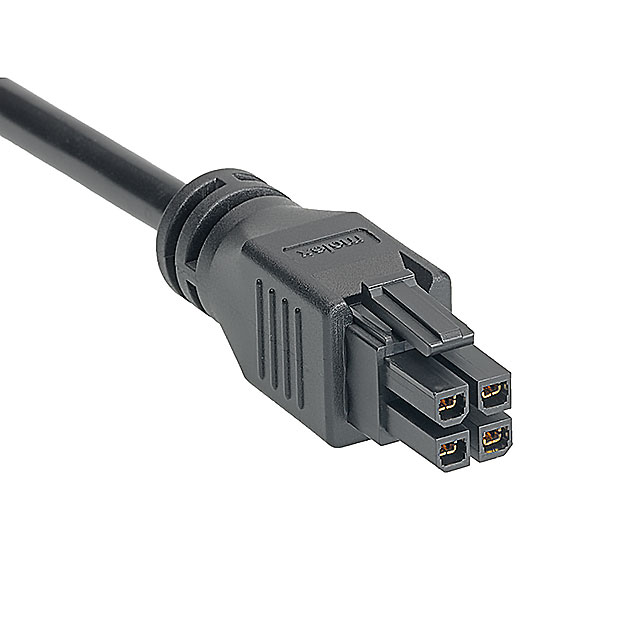

Molex 2451360410	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	4	3.28 ft	1 m	Socket to Socket	2
Molex 2451360405	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	4	1.64 ft	500 mm	Socket to Socket	2
Molex 2451360420	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	4	6.56 ft	2 m	Socket to Socket	2
Molex 2451360220	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	2	6.56 ft	2 m	Socket to Socket	1 2

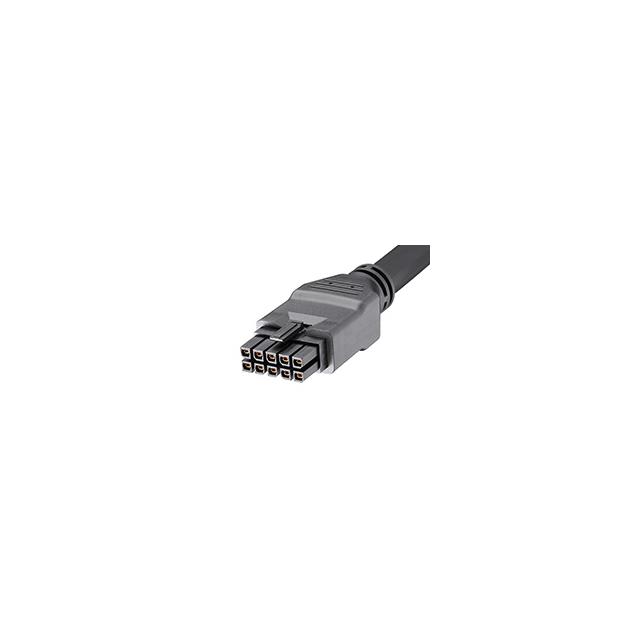

Molex 2451361005	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	10	1.64 ft	500 mm	Socket to Socket	2

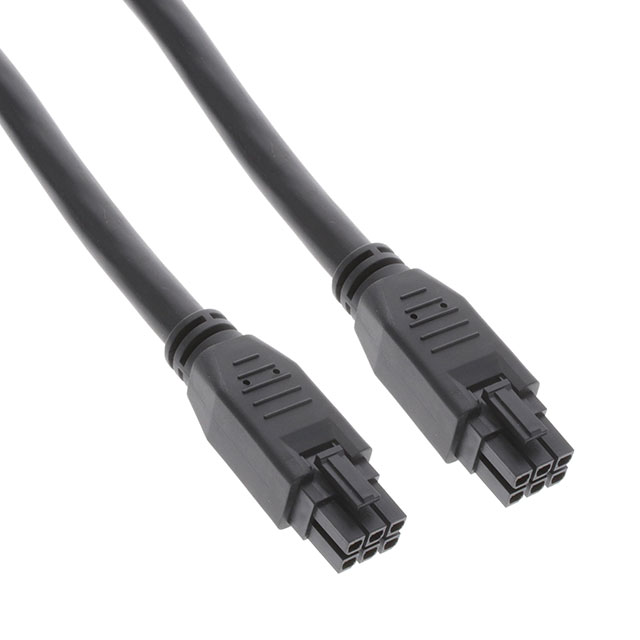

Molex 2451360620	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	6	6.56 ft	2 m	Socket to Socket	2
Molex 2451360820	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	8	6.56 ft	2 m	Socket to Socket	2
Molex 2451360605	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	6	1.64 ft	500 mm	Socket to Socket	2
Molex 2451361020	0.224 in	5.7 mm	Gold	Crimp	Latch Lock	15 µin	0.38 µm	Unshielded	10	6.56 ft	2 m	Socket to Socket	2
