822 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

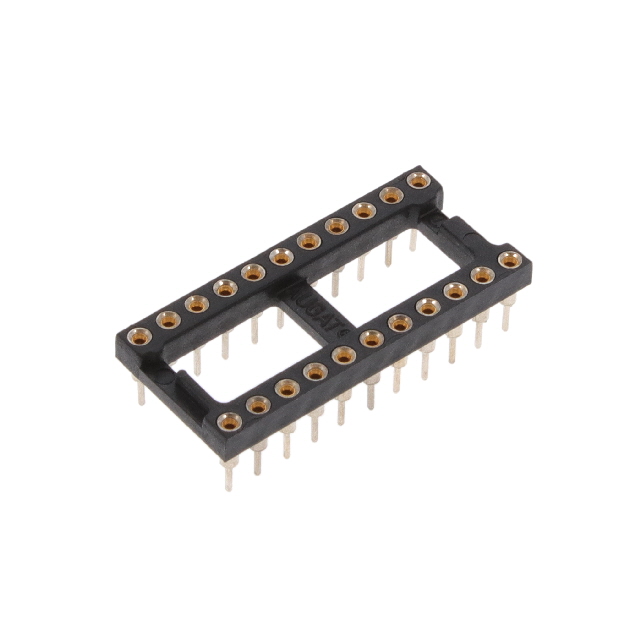

CONN IC DIP SOCKET 22POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Termination Post Length | Termination Post Length | Mounting Type | Contact Finish Thickness - Mating | Contact Finish - Mating | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Features | Contact Finish Thickness - Post | Type | Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Mating | Housing Material | Contact Material - Post [custom] | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Pitch - Post | Pitch - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

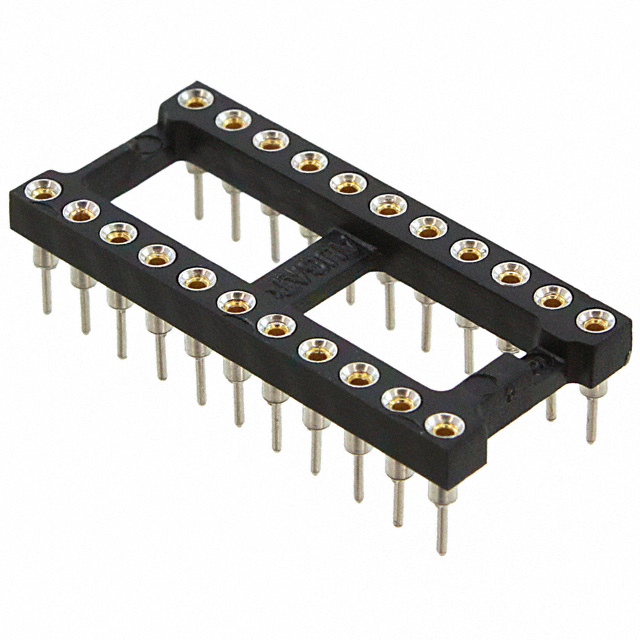

 TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Through Hole | Flash | Gold | 11 | 22 | 2 | Open Frame | Flash | 0.4 in | DIP | Solder | -55 C | 105 ░C | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Copper | 0.1 " | 2.54 mm | Gold | 0.1 in | 2.54 mm | |||
 TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Through Hole | Gold | 11 | 22 | 2 | Open Frame | 0.3 in | DIP | Solder | -55 C | 105 ░C | Copper Alloy | Polyester | Copper Alloy | 0.1 " | 2.54 mm | Tin-Lead | 0.1 in | 2.54 mm | 2.03 µm | 80 µin | 7.62 mm |
