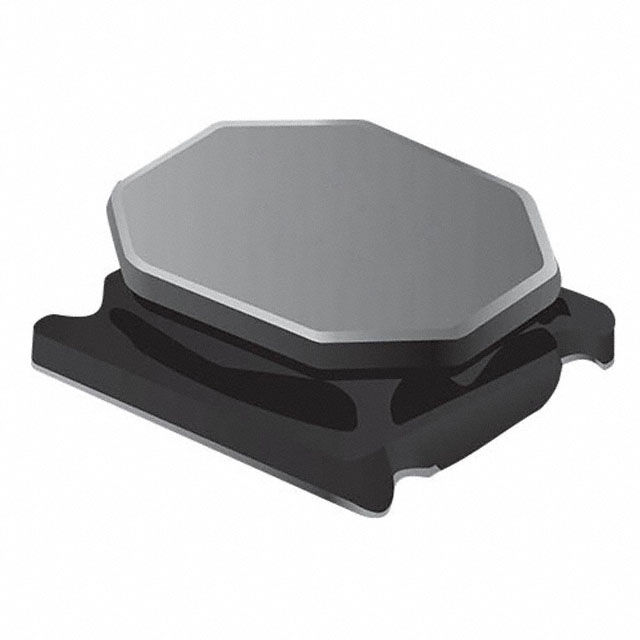

SRN5020 Series

Catalog

FIXED IND 1.5UH 3.2A 31 MOHM SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	DC Resistance (DCR) [Max]	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Current Rating (Amps)	Q @ Freq	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Inductance Frequency - Test	Mounting Type	Inductance	Shielding	Package / Case	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SRN5020-1R5Y	0.197 in	0.197 "	5 mm	5 mm	Drum Core Wirewound	31 mOhm	Ferrite	0.079 in	2 mm	60 MHz	3.2 A	7.96 MHz 13	125 °C	-40 C	30 %	100 kHz	Surface Mount	1.5 µH	Shielded	Nonstandard	3.35 A
Bourns Inc. SRN5020-4R7M	0.197 in	0.197 "	5 mm	5 mm	Drum Core Wirewound		Ferrite	0.079 in	2 mm	30 MHz	2 A	7.96 MHz 11	125 °C	-40 C	20 %	100 kHz	Surface Mount	4.7 ÁH	Shielded	Nonstandard	2 A	72 mOhm
Bourns Inc. SRN5020-150M	0.197 in	0.197 "	5 mm	5 mm	Drum Core Wirewound	198 mOhm	Ferrite	0.079 in	2 mm	15 MHz	1.2 A	2.52 MHz 14	125 °C	-40 C	20 %	100 kHz	Surface Mount	15 µH	Shielded	Nonstandard	1.1 A
Bourns Inc. SRN5020-3R3M	0.197 in	0.197 "	5 mm	5 mm	Drum Core Wirewound	58 mOhm	Ferrite	0.079 in	2 mm	40 MHz	2.4 A	7.96 MHz 11	125 °C	-40 C	20 %	100 kHz	Surface Mount	3.3 µH	Shielded	Nonstandard	2.4 A
Bourns Inc. SRN5020-330M	0.197 in	0.197 "	5 mm	5 mm	Drum Core Wirewound	516 mOhm	Ferrite	0.079 in	2 mm	10 MHz	900 mA	2.52 MHz 11	125 °C	-40 C	20 %	100 kHz	Surface Mount	33 µH	Shielded	Nonstandard	800 mA
Bourns Inc. SRN5020-6R8M	0.197 in	0.197 "	5 mm	5 mm	Drum Core Wirewound	108 mOhm	Ferrite	0.079 in	2 mm	23 MHz	1.65 A	7.96 MHz 11	125 °C	-40 C	20 %	100 kHz	Surface Mount	6.8 µH	Shielded	Nonstandard	1.6 A
