SUW60515 Series

Catalog

DC DC CONVERTER +/-15V 6W

Part	Voltage - Output 2	Voltage - Input (Min) [Min]	Power (Watts)	Efficiency	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features

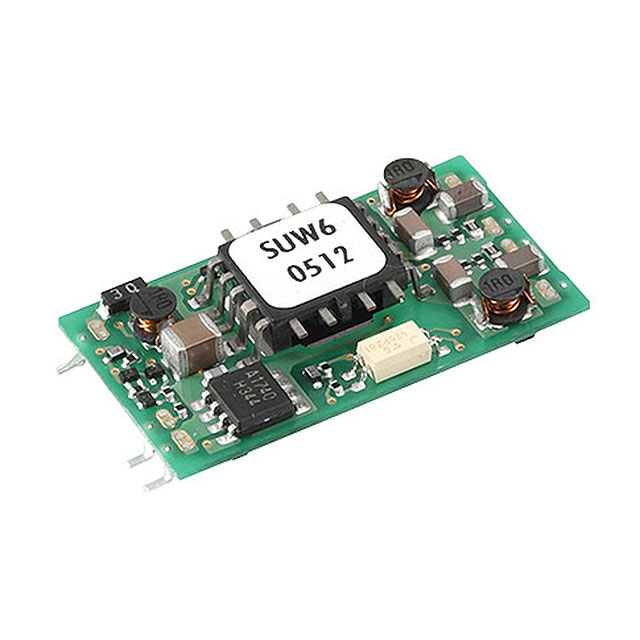

Cosel USA, Inc. SUW60515BP	-15 V	4.5 V	6 W	78 %	7-SMD Module	0.71 in	6.5 mm	1.24 in	18.1 mm	0.26 in	31.6 mm	15 V	500 V	9 V	2	ITE (Commercial)	Isolated Module	-40 °C	85 °C	Surface Mount
Cosel USA, Inc. SUW60515B	-15 V	4.5 V	6 W	78 %	7-SMD Module	0.71 in	6.5 mm	1.24 in	18.1 mm	0.26 in	31.6 mm	15 V	500 V	9 V	2	ITE (Commercial)	Isolated Module	-40 °C	85 °C	Surface Mount

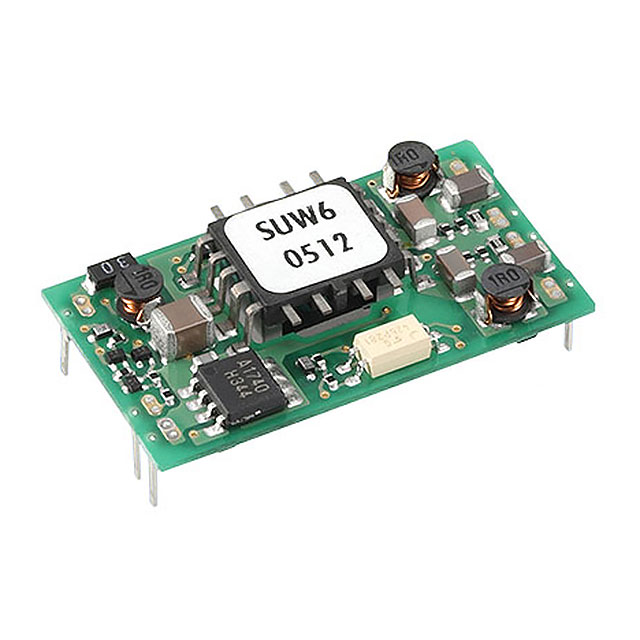

Cosel USA, Inc. SUW60515C	-15 V	4.5 V		78 %	7-DIP Module	0.71 in	6.5 mm	1.24 in	18.1 mm	0.26 in	31.6 mm	15 V	500 V	9 V	2	ITE (Commercial)	Isolated Module	-40 °C	85 °C	Through Hole	OCP Remote On/Off
