Cm0 Series Series

Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD Single Pole Power Rocker Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD Single Pole Power Rocker Switch

Part	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Electrical Life	Current Rating (Amps)	Mounting Type	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Switch Function	Illumination Voltage (Nominal)	Illumination Type, Color

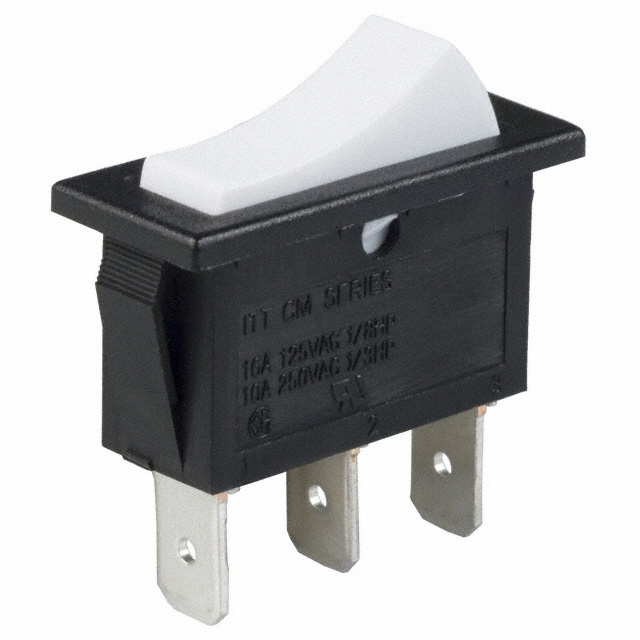

Littelfuse/Commercial Vehicle Products CM101J11S205QA	Concave (Curved)	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	No Marking	125 V	White	Quick Connect - 0.250" (6.3mm)	-20 C	80 C	SPDT	On-On
Littelfuse/Commercial Vehicle Products CM103J12S205QA	Concave (Curved)	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	No Marking	125 V	Black	Quick Connect - 0.250" (6.3mm)	-20 C	80 C	SPDT	On-Off-On
Littelfuse/Commercial Vehicle Products CM102J12S205HQA	Concave (Curved)	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	O I	125 V	Black	Quick Connect - 0.250" (6.3mm)	-20 C	80 C	SPST	On-Off

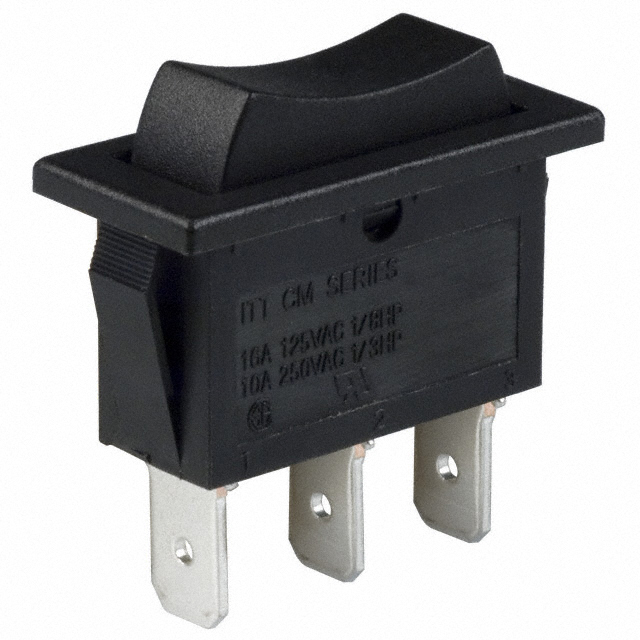

Littelfuse/Commercial Vehicle Products CM107J12S205QA	Concave (Curved)	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	No Marking	125 V	Black	Quick Connect - 0.250" (6.3mm)	-20 C	80 C	SPDT	On-Off-Mom

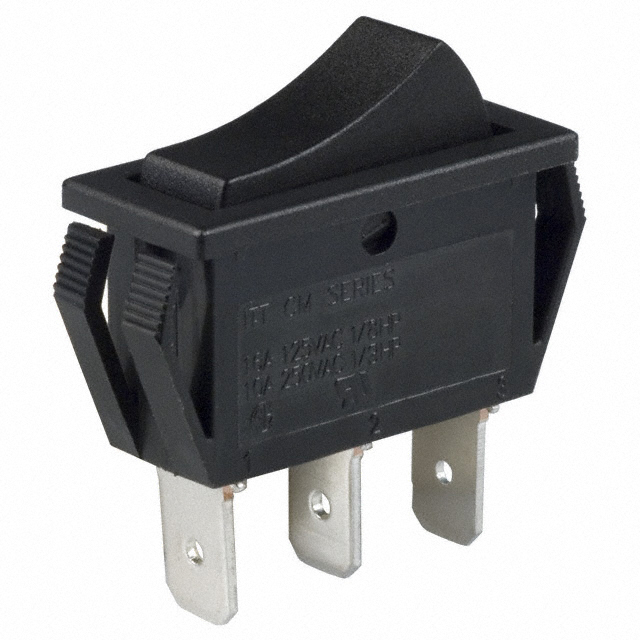

Littelfuse/Commercial Vehicle Products CM101J12S405QA	Concave (Curved)	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	No Marking	125 V	Black	Quick Connect - 0.250" (6.3mm)	-20 C	80 C	SPDT	On-On
Littelfuse/Commercial Vehicle Products CM102J12S205DQA	Concave (Curved)	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	ON OFF Vertical	125 V	Black	Quick Connect - 0.250" (6.3mm)	-20 C	80 C	SPST	On-Off
Littelfuse/Commercial Vehicle Products CM102J12S105PQA	Concave (Curved)	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	O -	125 V	Black	Quick Connect - 0.250" (6.3mm)	-20 C	80 C	SPST	On-Off

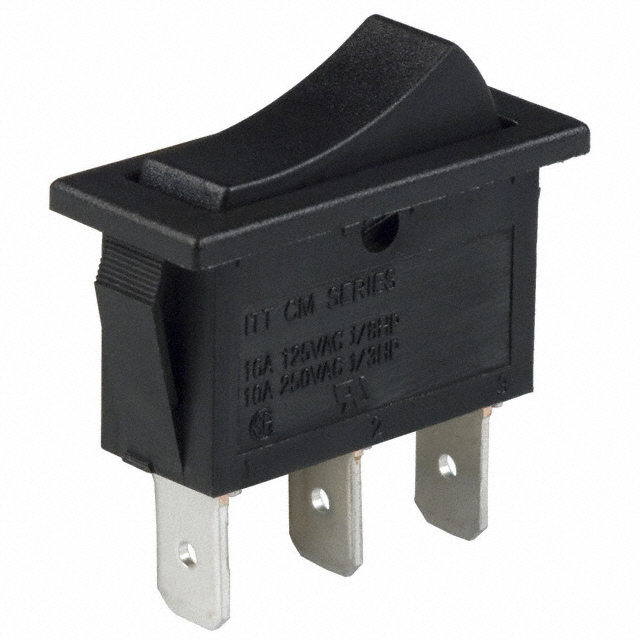

Littelfuse/Commercial Vehicle Products CM101J62S205QA	Flat	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	No Marking	125 V	Black	Quick Connect - 0.250" (6.3mm)	-20 C	80 C	SPDT	On-On

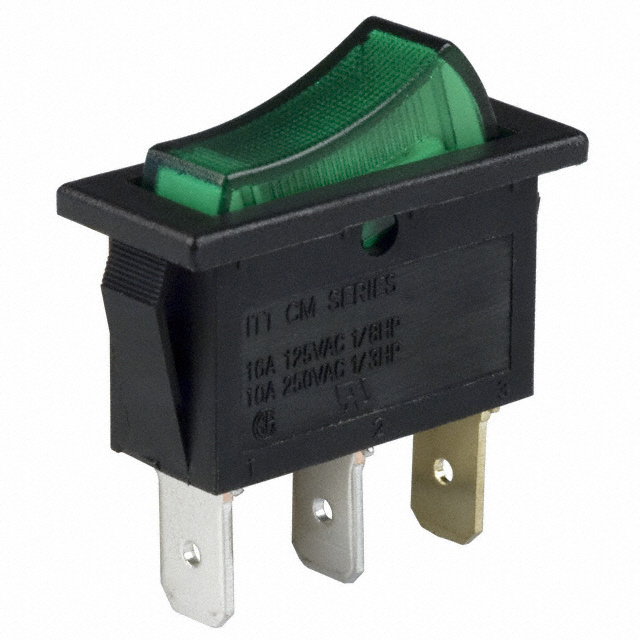

Littelfuse/Commercial Vehicle Products CM102J3GS205QA7	Concave (Curved) - Illuminated	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	No Marking	125 V	Green	Quick Connect - 0.250" (6.3mm)	-20 C	80 C	SPST	On-Off	125 VAC	Green Neon
Littelfuse/Commercial Vehicle Products CM101J12S207QA	Concave (Curved)	30.4 mm	11.2 mm	cULus	10000 Cycles	16 A	Panel Mount Snap-In	No Marking	125 V	Black	Solder Lug	-20 C	80 C	SPDT	On-On

Catalog

Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD Single Pole Power Rocker Switch

Key Features

• Illuminated versions available

• Easy to install snap-in design

• Multiple actuator and termination styles

Description

Designers of power supplies, industrial equipment and small appliances need a quality rocker switch that can withstand repeated use. That’s why so many turn to C&K’s CM series single pole power rocker switch. The CM series feature an easy to install snap-in design and are available with multiple actuator and termination styles as well as various types of illumination.
