MP3V5 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
SENSOR 1.45PSIG 0.13" 3.1V 8SOP
| Part | Termination Style | Features | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Pressure Type | Output Type | Package / Case | Output Voltage (Min) | Output Voltage (Max) | Accuracy | Maximum Pressure | Port Diameter | Port Gender | Port Feature | Applications | Operating Pressure | Package Name | Port Style | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | Gull Wing | Temperature Compensated | Surface Mount | 125 °C | -40 °C | Vented Gauge | Analog Voltage | 8-SMD Gull Wing Side Port | 0.1 V | 3.1 V | 5 % | 10.88 PSI | 0.13 " | Male | Tube | Board Mount | 1.45 PSI | 8-SOP | Barbless | 3.3 V | 2.7 V |
NXP USA Inc. | Gull Wing | Amplified Output Temperature Compensated | Surface Mount | 125 °C | -40 °C | Vacuum | Analog Voltage | 8-SMD Gull Wing Side Port | 60 mV | 2.82 V | 2.5 % | -58.02 PSI | 0.13 " | Male | Tube | Board Mount | -7.25 PSI | 8-SOP | Barbed | 3.3 V | 2.7 V |

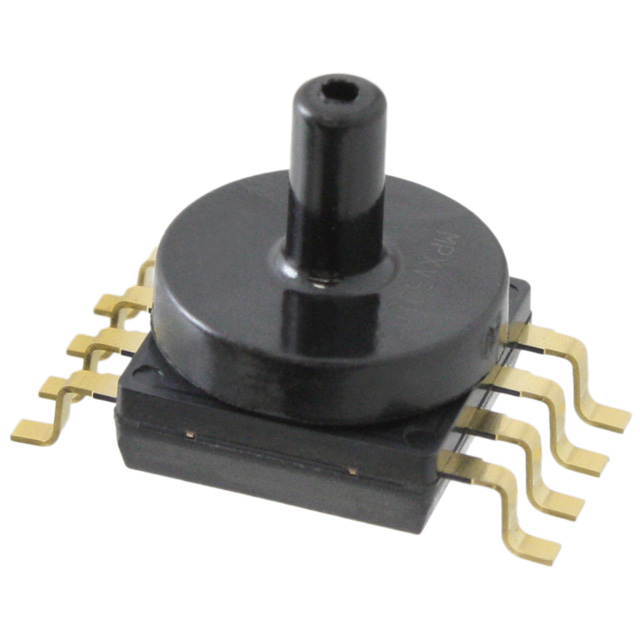

 NXP USA Inc. | Gull Wing | Amplified Output Temperature Compensated | Surface Mount | 125 °C | -40 °C | Vacuum | Analog Voltage | 8-SMD Gull Wing Top Port | 60 mV | 2.82 V | 2.5 % | -58.02 PSI | 0.13 " | Male | Tube | Board Mount | -7.25 PSI | Barbless | 3.3 V | 2.7 V | |
 NXP USA Inc. | Gull Wing | Temperature Compensated | Surface Mount | 125 °C | -40 °C | Vented Gauge | Analog Voltage | 8-SMD Gull Wing Top Port | 60 mV | 2.82 V | 2.5 % | 29.01 PSI | 0.13 " | Male | Dual Tube | Board Mount | 7.25 PSI | Barbless | 3.3 V | 2.7 V |
