KH Series

Catalog

DIN RAIL POWER SUPPLIES 90W 24V 3.8A DIN RAIL

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Number of Outputs	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Applications	Approval Agency	Efficiency	Voltage - Output 1	Current - Output (Max) [Max]	Input Type	Voltage - Isolation	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Standard Number
Cosel USA, Inc. KHEA90F-24	50 mm	90 mm	94.5 mm	1.97 in	3.72 "	3.54 "	Adjustable Output Universal Input	1	264 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	91 %	24 V	3.8 A	AC	3000 V	90 W	70 °C	-20 °C

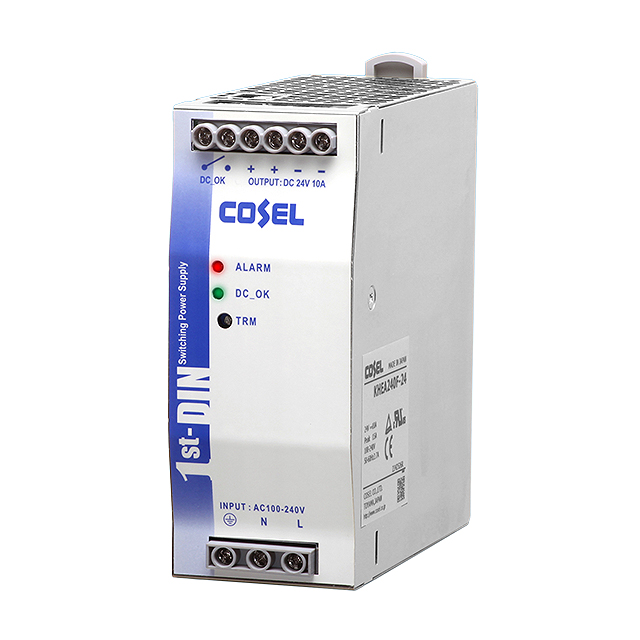

Cosel USA, Inc. KHEA240F-24	50 mm	124 mm	121.2 mm	1.97 in	4.77 in	4.88 in	Adjustable Output PFC Remote Sense Universal Input	1	264 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	94 %	24 V	10 A	AC	3000 V	240 Watts	70 °C	-20 °C
Cosel USA, Inc. KHNA90F-24	50 mm	124 mm	121.2 mm	1.97 in	4.77 in	4.88 in	Adjustable Output PFC Remote On/Off Universal Input	1	264 VAC	85 VAC	ITE (Commercial)	CE cULus cURus TUV	91 %	24 V	3.8 A	AC or DC	3000 V	90 W	70 °C	-20 ░C	370 V	120 V	60950-1
Cosel USA, Inc. KHNA90F-24-E	50 mm	124 mm	121.2 mm	1.97 in	4.77 in	4.88 in	Adjustable Output PFC Remote On/Off Universal Input	1	264 VAC	85 VAC	ITE (Commercial)	CE cULus cURus TUV	91 %	24 V	3.8 A	AC or DC	3000 V	90 W	70 °C	-20 ░C	370 V	120 V	60950-1
