50RIA120 Series

Catalog

SCR 1.2KV 80A TO208AC

Part	SCR Type	Current - Off State (Max) [Max]	Mounting Type	Current - On State (It (AV)) (Max)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Gate Trigger (Igt) (Max) [Max] [x]	Voltage - Gate Trigger (Vgt) (Max)	Voltage - On State (Vtm) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Off State	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]

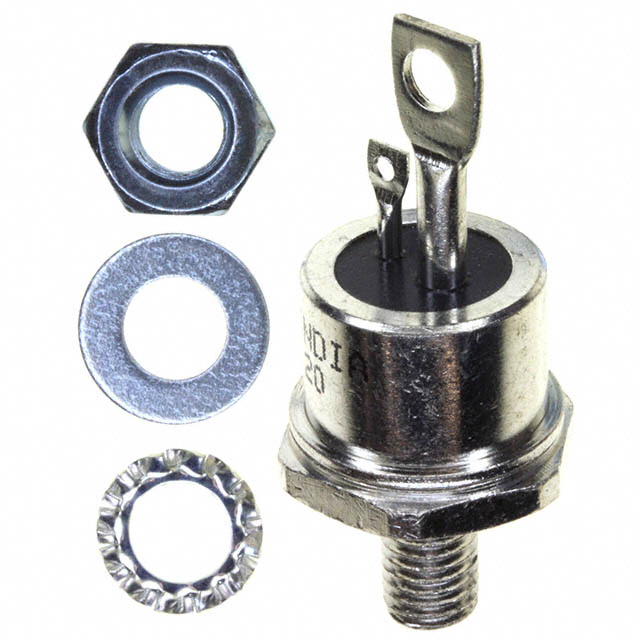

Vishay General Semiconductor - Diodes Division VS-50RIA120	Standard Recovery	15 mA	Chassis Stud Mount	50 A	Stud TO-208AC TO-65-3	125 °C	-40 °C	TO-208AC (TO-65)	100 mA	2.5 V	1.6 V	200 mA	1430 A 1490 A	1.2 kV	80 A
Vishay General Semiconductor - Diodes Division VS-50RIA120M	Standard Recovery	15 mA	Chassis Stud Mount	50 A	Stud TO-208AC TO-65-3	125 °C	-40 °C	TO-208AC (TO-65)	100 mA	2.5 V	1.6 V	200 mA		1.2 kV	80 A	1200 A	1255 A
