76384 Series

Catalog

CONN HEADER VERT 17POS 2.54MM

Part	Contact Finish - Mating	Contact Shape	Contact Finish - Post	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Connector Type	Mounting Type	Number of Positions Loaded	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Number of Rows	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Shrouding	Number of Positions
Amphenol ICC (FCI) 76384-317LF	Gold GXT™	Square	Tin	Black	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder	3 A	30 Áin	0.76 Ám	UL94 V-0	Friction Lock	0.197 in	5 mm	125 °C	-40 °C	Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	2 çm	78.7 çin	Male Pin	Shrouded - 2 Wall
Amphenol ICC (FCI) 76384-305	Gold	Square	Tin-Lead	Blue	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder		30 Áin	0.76 Ám	UL94 V-0	Friction Lock	0.197 in	5 mm			Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	3.81 Ám	150 Áin	Male Pin	Shrouded - 2 Wall

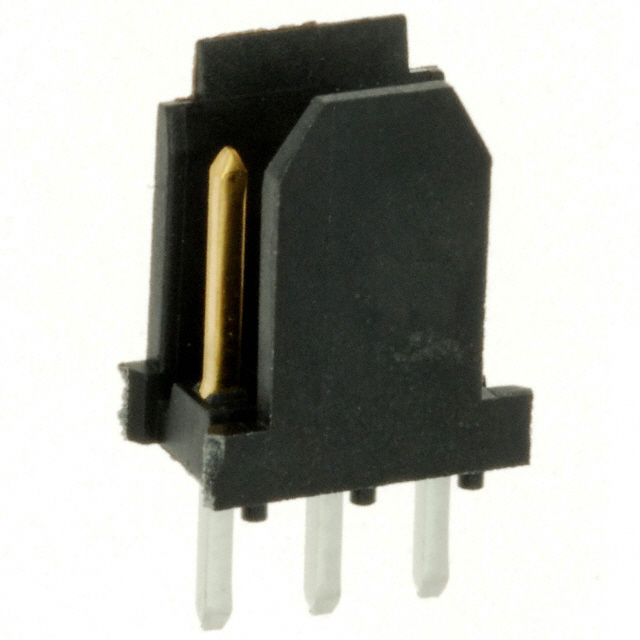

Amphenol ICC (FCI) 76384-303LF	Gold GXT™	Square	Tin	Black	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder	3 A	30 Áin	0.76 Ám	UL94 V-0	Friction Lock	0.197 in	5 mm	125 °C	-40 °C	Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	2 çm	78.7 çin	Male Pin	Shrouded - 2 Wall
Amphenol ICC (FCI) 76384-415	Tin-Lead	Square	Tin-Lead	Blue	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder		150 Áin	3.81 Ám	UL94 V-0	Friction Lock	0.197 in	5 mm			Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	3.81 Ám	150 Áin	Male Pin	Shrouded - 2 Wall	15

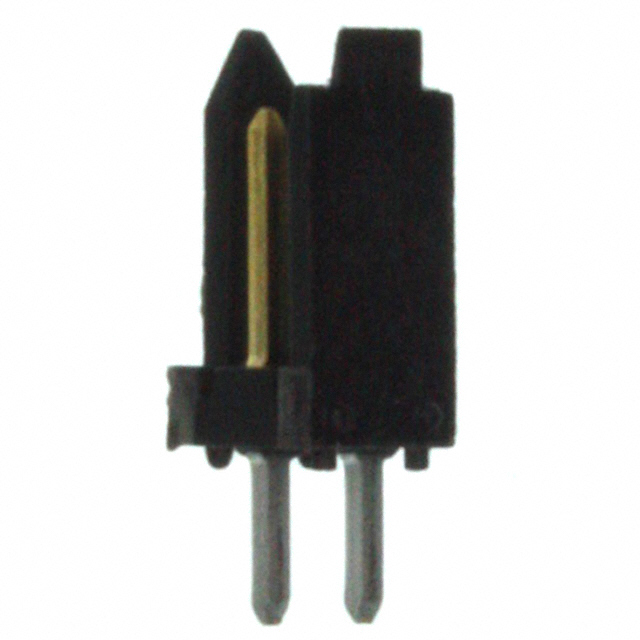

Amphenol ICC (FCI) 76384-302LF	Gold GXT™	Square	Tin	Black	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder	3 A	30 Áin	0.76 Ám	UL94 V-0	Friction Lock	0.197 in	5 mm	125 °C	-40 °C	Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	2 çm	78.7 çin	Male Pin	Shrouded - 2 Wall	2
Amphenol ICC (FCI) 76384-411	Tin-Lead	Square	Tin-Lead	Blue	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder		150 Áin	3.81 Ám	UL94 V-0	Friction Lock	0.197 in	5 mm			Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	3.81 Ám	150 Áin	Male Pin	Shrouded - 2 Wall	11
Amphenol ICC (FCI) 76384-417	Tin-Lead	Square	Tin-Lead	Blue	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder		150 Áin	3.81 Ám	UL94 V-0	Friction Lock	0.197 in	5 mm			Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	3.81 Ám	150 Áin	Male Pin	Shrouded - 2 Wall
Amphenol ICC (FCI) 76384-404	Tin-Lead	Square	Tin-Lead	Blue	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder		150 Áin	3.81 Ám	UL94 V-0	Friction Lock	0.197 in	5 mm			Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	3.81 Ám	150 Áin	Male Pin	Shrouded - 2 Wall	4

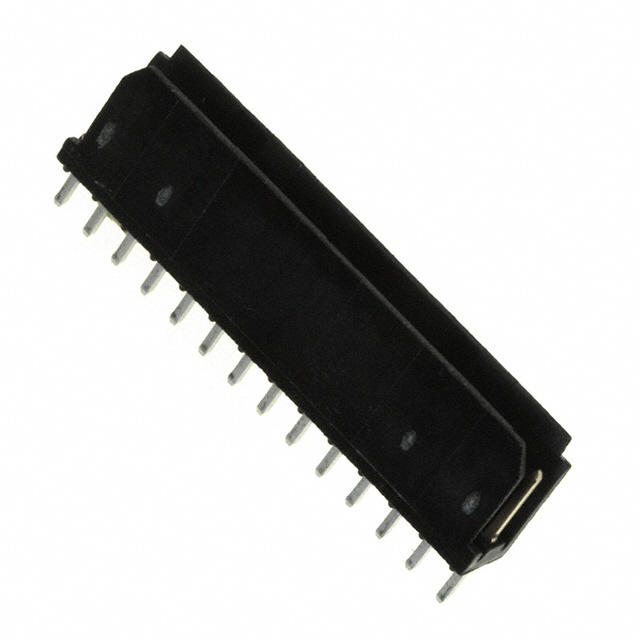

Amphenol ICC (FCI) 76384-314LF	Gold GXT™	Square	Tin	Black	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder	3 A	30 Áin	0.76 Ám	UL94 V-0	Friction Lock	0.197 in	5 mm	125 °C	-40 °C	Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	2 çm	78.7 çin	Male Pin	Shrouded - 2 Wall	14

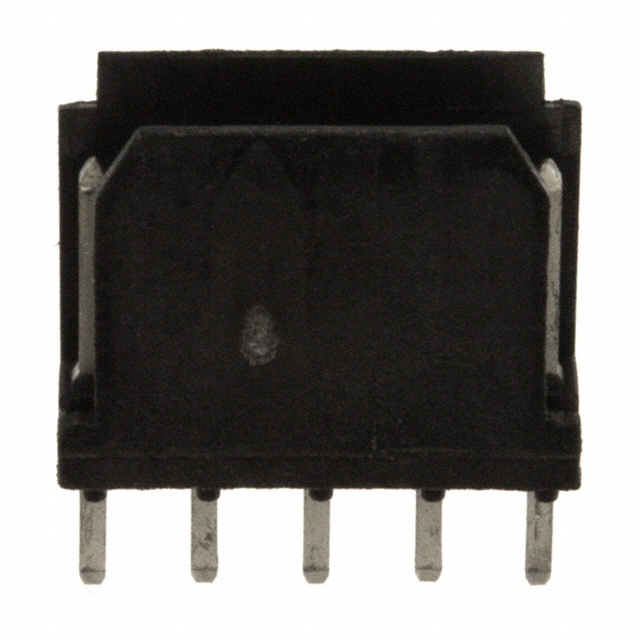

Amphenol ICC (FCI) 76384-405LF		Square	Tin	Black	0.134 in	3.4 mm	9.35 mm	0.368 in	Header	Through Hole	All	Solder	3 A	78.7 µin	2 µm	UL94 V-0	Friction Lock	0.197 in	5 mm	125 °C	-40 °C	Board to Cable/Wire	1	Copper Alloy	0.1 in	2.54 mm	2 çm	78.7 çin	Male Pin	Shrouded - 2 Wall
