324605 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

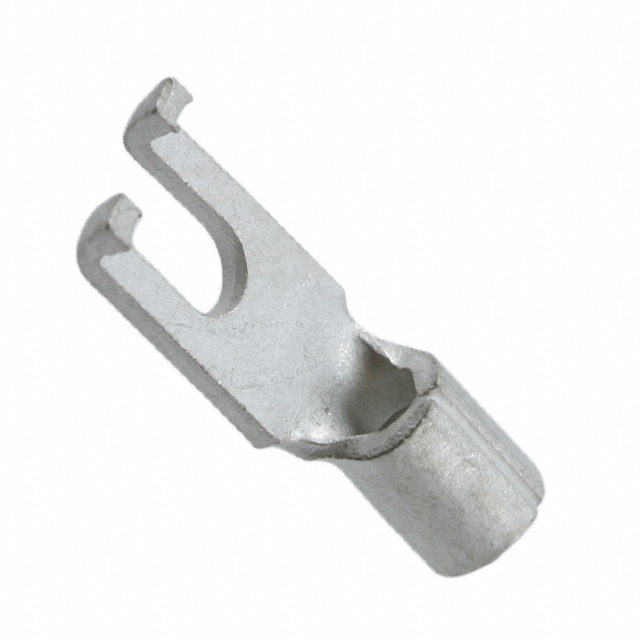

TERM,SOL SPD FLG2,22-16C22-18M
| Part | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Width - Outer Edges | Width - Outer Edges | Length - Termination [x] | Length - Termination [x] | Insulation | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Length - Overall | Length - Overall | Stud/Tab Size | Termination | Contact Finish | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.203 in | 5.16 mm | 4.62 mm | 0.182 " | 0.181 in | 4.6 mm | Non-Insulated | Free Hanging (In-Line) | 22 AWG | 16 AWG | Flanged | 2.36 mm | 0.093 in | 12.8 mm | 0.504 in | 2 Stud | Crimp | Tin | Brazed Seam Serrated Termination | Copper |
