M22-530 Series

Catalog

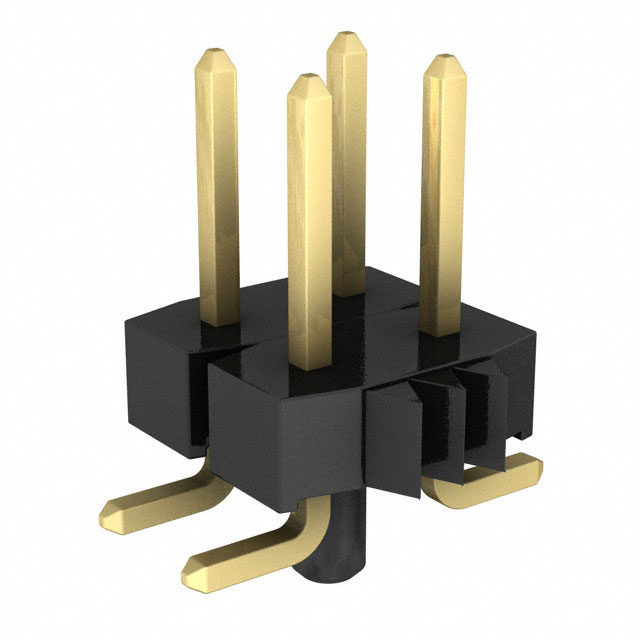

3+3 POS. MALE DIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Insulation Color	Connector Type	Fastening Type	Contact Type	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions	Current Rating (Amps)	Features	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Shape	Material Flammability Rating	Number of Positions Loaded	Shrouding	Termination	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]
Harwin Inc. M22-5300305R	4.35 mm 6.55 mm	Black	Header Cuttable	Push-Pull	Male Pin	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	0.079 "	2 mm	Gold	6	1 A	Board Guide	3.5 mm	0.138 in	Flash	Square	UL94 V-0	All	Unshrouded	Solder	Surface Mount	2 mm	0.079 in	0.059 in	1.5 mm	2	-40 C	105 ░C
Harwin Inc. M22-5300205R	4.35 mm 6.55 mm	Black	Header Cuttable	Push-Pull	Male Pin	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	0.079 "	2 mm	Gold	4	1 A	Board Guide	3.5 mm	0.138 in	Flash	Square	UL94 V-0	All	Unshrouded	Solder	Surface Mount	2 mm	0.079 in	0.059 in	1.5 mm	2	-40 C	105 ░C
Harwin Inc. M22-5300305	4.35 mm 6.55 mm	Black	Header Cuttable	Push-Pull	Male Pin	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	0.079 "	2 mm	Gold	6	1 A	Board Guide	3.5 mm	0.138 in	Flash	Square	UL94 V-0	All	Unshrouded	Solder	Surface Mount	2 mm	0.079 in	0.059 in	1.5 mm	2	-40 C	105 ░C
