1036 Series

Catalog

SHL RECP ASSY

Part	Material - Insulation	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Length - Overall	Length - Overall	Mounting Type	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Color	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Contact Finish	Insulation	Features	Termination	Stud/Tab Size	Length - Termination	Length - Termination	Tongue Inside Opening [custom]	Tongue Inside Opening [custom]	Length - Ring Center to Termination	Length - Ring Center to Termination	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]
TE Connectivity AMP Connectors 103612-58
TE Connectivity AMP Connectors 103606-107

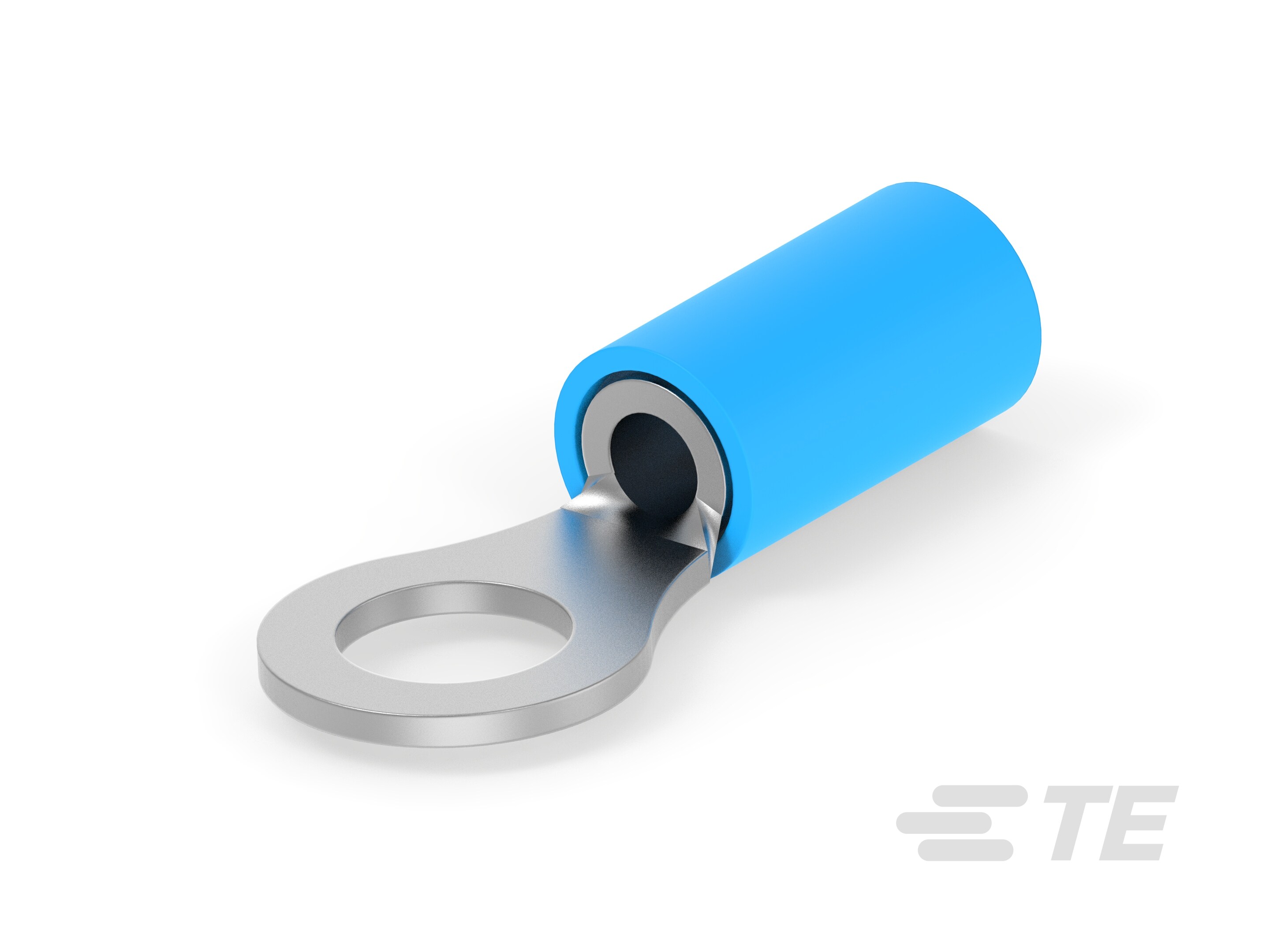

TE Connectivity AMP Connectors 130663	Nylon Polyamide (PA)	0.102 "	2.59 mm	0.15 in	3.81 mm	21.4 mm	0.843 in	Free Hanging (In-Line)	Circular	0.343 in	8.71 mm	0.79 mm	0.031 in	Blue	14 AWG	16 AWG	Copper	Tin	Insulated	Serrated Termination	Crimp
TE Connectivity AMP Connectors 130663						21.4 mm	0.843 in	Free Hanging (In-Line)	Circular	0.343 in	8.71 mm	0.79 mm	0.031 in	Blue	14 AWG	16 AWG	Copper	Tin	Insulated		Crimp	M5 Stud
TE Connectivity AMP Connectors 103602-107

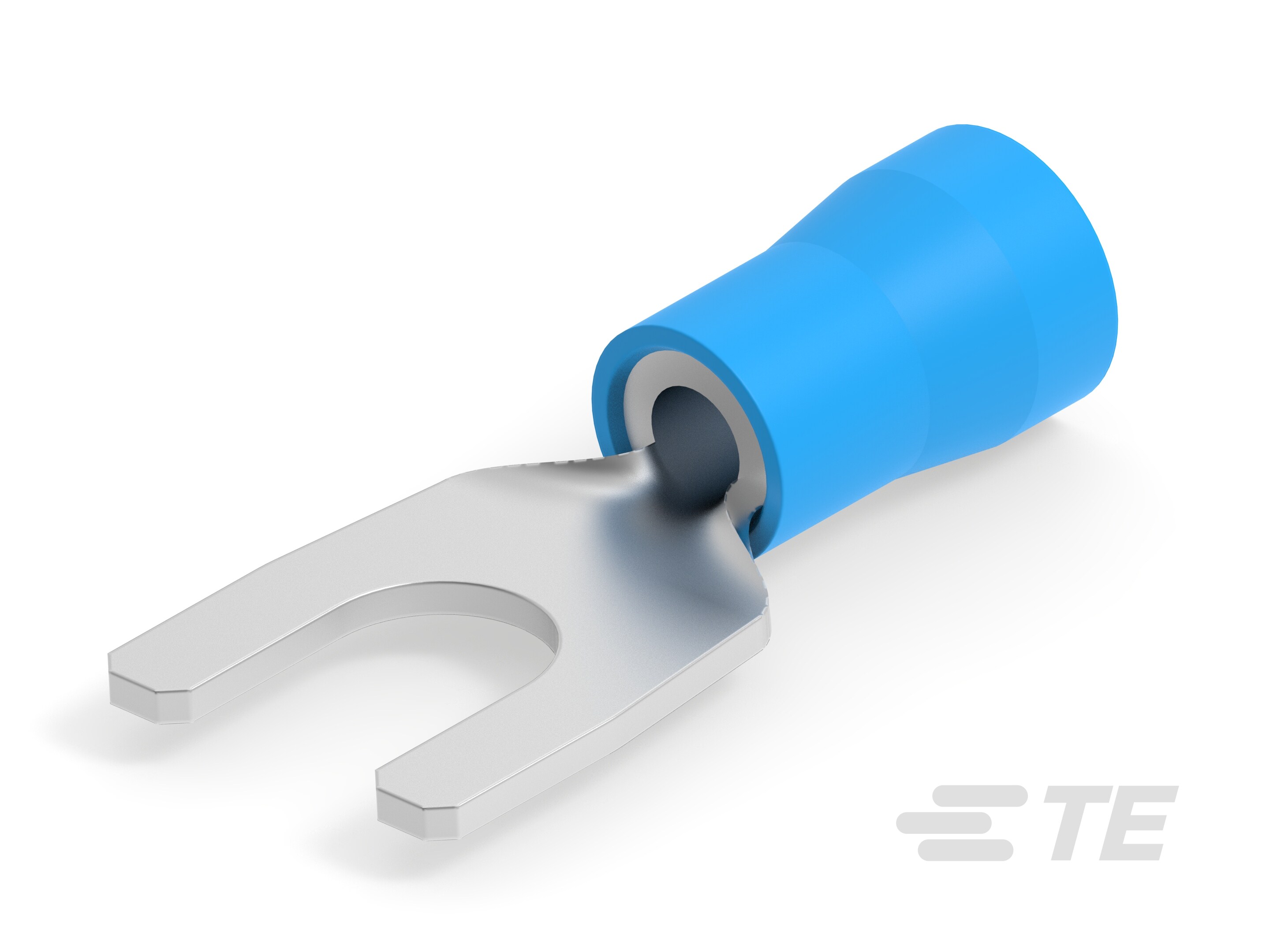

TE Connectivity AMP Connectors 130678	Poly-Vinyl Chloride (PVC)	0.118 in	3 mm	0.193 in	4.9 mm	22.91 mm		Free Hanging (In-Line)	Standard					Blue	14 AWG	16 AWG	Copper	Tin	Insulated	Serrated Termination	Crimp		0.386 in	9.8 mm	0.205 in	5.21 mm	7.9 mm	0.311 in	0.902 in	0.394 in	10 mm
