306-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 38POS 0.156

Part	Termination Rows	Material - Insulation	Contact Material	Pitch	Pitch	Flange Feature	Contact Finish	Number of Rows [custom]	Contact Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Read Out	Features	Mounting Type	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Card Type	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-019-520-168	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual	Card Guides	Panel Mount Through Hole	Solder	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-019-500-158	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual	Card Guides	Panel Mount	Solder Eyelet(s)	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-019-520-101	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in		Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual		Through Hole	Solder	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-019-500-103	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in	Floating Bobbin Flush Mount	Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual		Panel Mount	Solder Eyelet(s)	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	2.95 mm

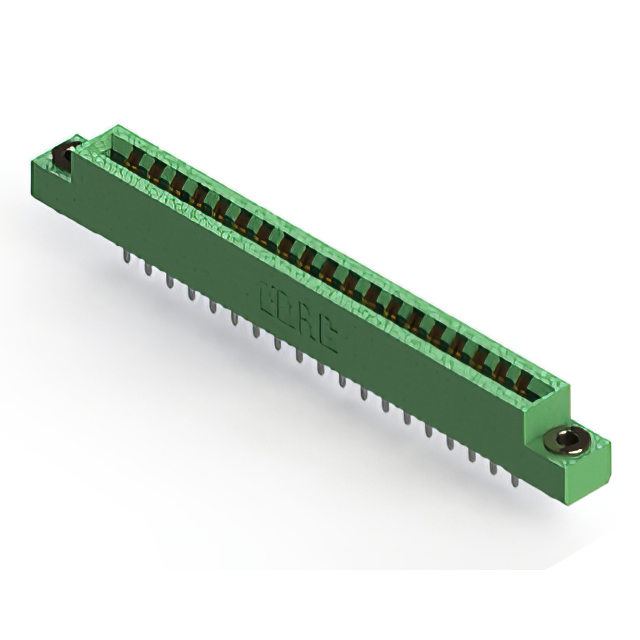

EDAC Inc. 306-019-520-103	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in	Floating Bobbin Flush Mount	Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual		Panel Mount Through Hole	Solder	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	2.95 mm

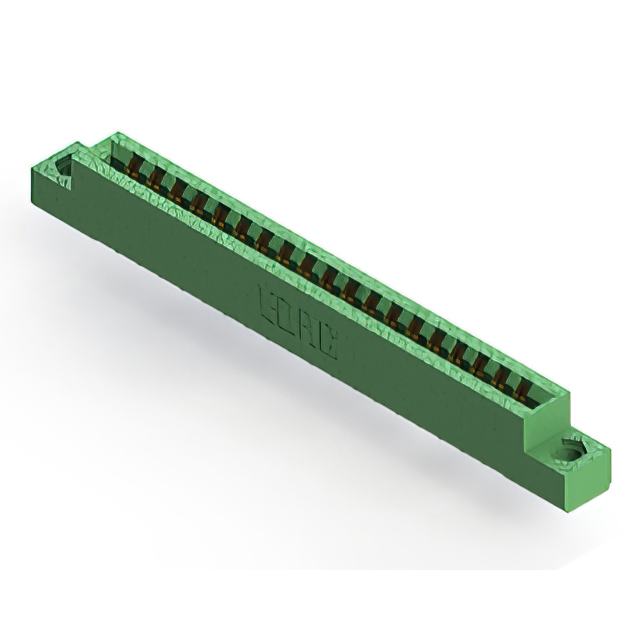

EDAC Inc. 306-019-521-104	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual		Panel Mount Through Hole	Solder	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm
EDAC Inc. 306-019-500-107	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in	Flush Mount M3 Threaded Insert Top Opening	Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual		Panel Mount	Solder Eyelet(s)	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-019-500-108	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual		Panel Mount	Solder Eyelet(s)	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-019-500-104	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual		Panel Mount	Solder Eyelet(s)	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm

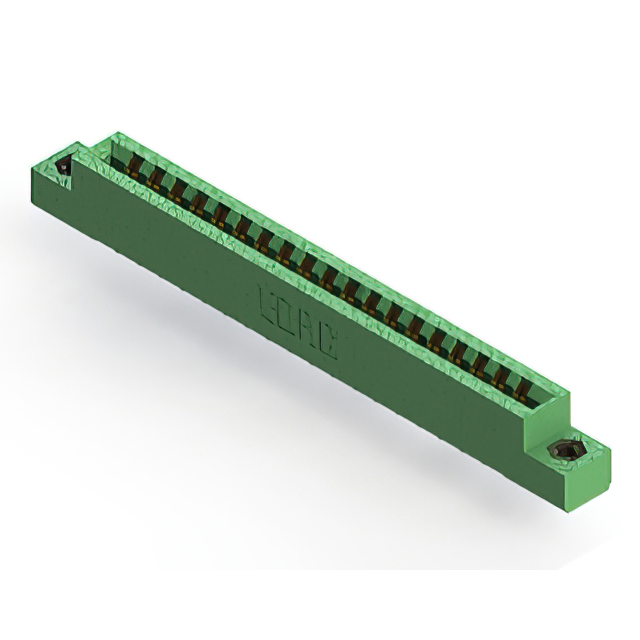

EDAC Inc. 306-019-521-108	1	Polyester Thermoplastic	Copper Alloy	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	Gold	2	Cantilever	Female	0.25 Ám	10 Áin	38	Dual		Panel Mount Through Hole	Solder	Green	-40 C	105 ░C	19	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
