ATV02W190 Series
Manufacturer: Comchip Technology
Beta
⌘K

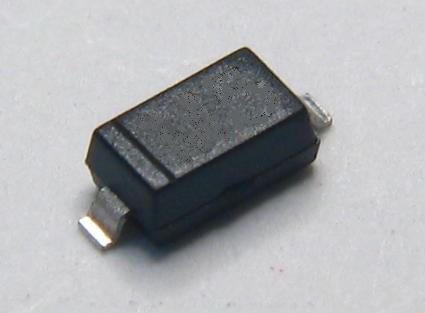

DIODE TVS SINGLE BI-DIR 19V 200W AUTOMOTIVE 2-PIN SOD-123FL T/R
| Part | Package / Case | Grade | Power - Peak Pulse | Voltage - Breakdown (Min) [Min] | Qualification | Power Line Protection | Voltage - Clamping (Max) @ Ipp [Max] | Supplier Device Package | Bidirectional Channels [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Reverse Standoff (Typ) | Type | Current - Peak Pulse (10/1000µs) | Mounting Type | Unidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comchip Technology | SOD-123F | Automotive | 200 W | 21.1 V | AEC-Q101 | 30.6 V | SOD-123F | 1 | 150 °C | -55 °C | 19 V | Zener | 6.54 A | Surface Mount | ||
 Comchip Technology | SOD-123F | Automotive | 200 W | 21.1 V | AEC-Q101 | 30.6 V | SOD-123F | 150 °C | -55 °C | 19 V | Zener | 6.54 A | Surface Mount | 1 |
