LGA100A Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC CONVERTER 24V
| Part | Minimum Load Required | Voltage - Output 1 | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Isolation | Applications | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Approval Agency | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

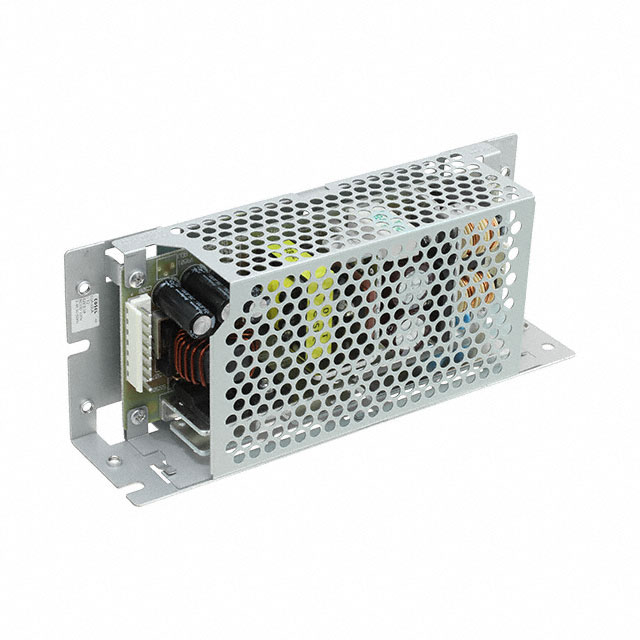

 Cosel USA, Inc. | 24 V | Chassis Mount | 85 VAC | 132 VAC | 4.3 A | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 85.5 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Enclosed | |
Cosel USA, Inc. | 24 V | Chassis Mount | 85 VAC | 132 VAC | 4.3 A | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 85.5 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Enclosed | |
 Cosel USA, Inc. | 24 V | Chassis Mount | 85 VAC | 132 VAC | 4.3 A | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 85.5 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Enclosed | |

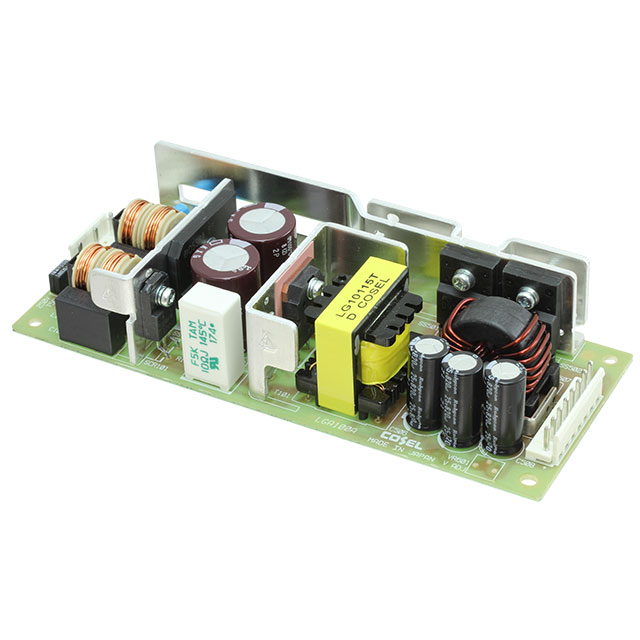

 Cosel USA, Inc. | 15 V | Chassis Mount | 85 VAC | 132 VAC | 7 A | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 84 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Open Frame | |

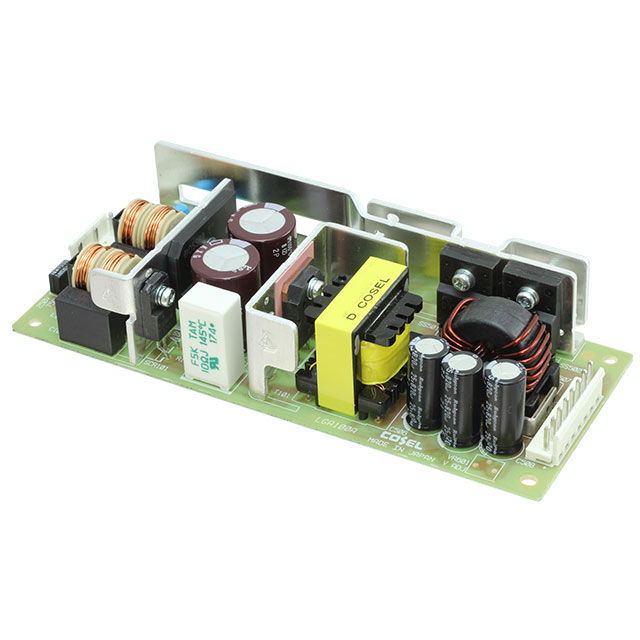

 Cosel USA, Inc. | 12 V | Chassis Mount | 85 VAC | 132 VAC | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 83 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Open Frame | ||
Cosel USA, Inc. | 12 V | Chassis Mount | 85 VAC | 132 VAC | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 83 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Open Frame | ||
Cosel USA, Inc. | 24 V | Chassis Mount | 85 VAC | 132 VAC | 4.3 A | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 85.5 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Open Frame | |
 Cosel USA, Inc. | 12 V | Chassis Mount | 85 VAC | 132 VAC | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 83 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Open Frame | ||
Cosel USA, Inc. | 24 V | Chassis Mount | 85 VAC | 132 VAC | 4.3 A | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 85.5 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Open Frame | |
Cosel USA, Inc. | 24 V | Chassis Mount | 85 VAC | 132 VAC | 4.3 A | -10 °C | 60 °C | 1 | 2000 V | ITE (Commercial) | 85.5 % | 154.9 mm | 2.44 " | 6.1 " | 1.4 " | 35.6 mm | 62 mm | CE cURus TUV | Open Frame |
