PMA30F Series

Catalog

SWITCHING POWER SUPPLIES 30W 15V 2A HORIZONTAL TERMBLOCK

Part	Number of Outputs	Current - Output 1	Type	Approval Agency	Voltage - Output 1	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Applications
Cosel USA, Inc. PMA30F-15-T1	1	2 A	Open Frame	CE cURus TUV	15 V	80 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical
Cosel USA, Inc. PMA30F-15-J1	1	2 A	Open Frame	CE cURus TUV	15 V	80 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical
Cosel USA, Inc. PMA30F-5-T1	1	6 A	Open Frame	CE cURus TUV	5 V	74 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical
Cosel USA, Inc. PMA30F-3R3-T1	1	6 A	Open Frame	CE cURus TUV	3.3 V	69 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical

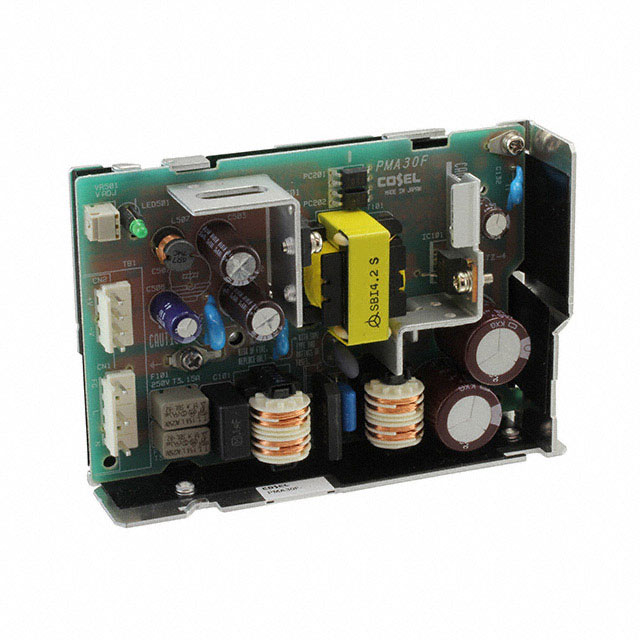

Cosel USA, Inc. PMA30F-3R3	1	6 A	Open Frame	CE cURus TUV	3.3 V	69 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical
Cosel USA, Inc. PMA30F-24-TN	1	1.3 A	Enclosed	CE cURus TUV	24 V	80 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical
Cosel USA, Inc. PMA30F-12-TN	1	2.5 A	Enclosed	CE cURus TUV	12 V	78 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical
Cosel USA, Inc. PMA30F-5-T	1	6 A	Open Frame	CE cURus TUV	5 V	74 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical

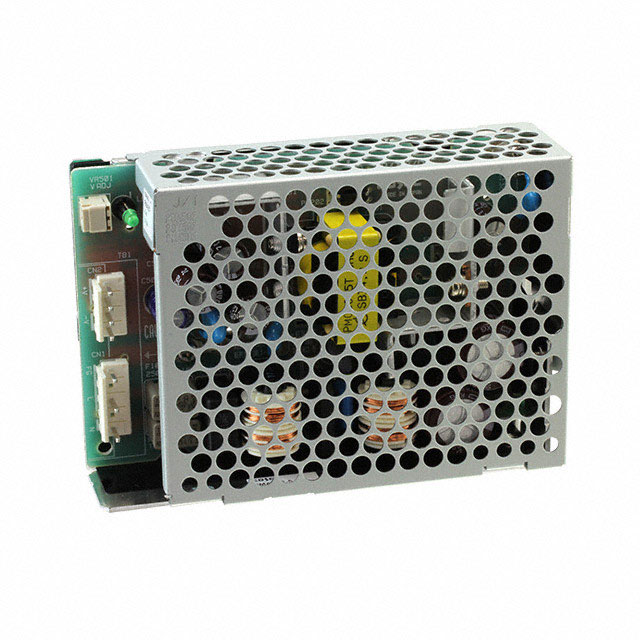

Cosel USA, Inc. PMA30F-24-N	1	1.3 A	Enclosed	CE cURus TUV	24 V	80 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical
Cosel USA, Inc. PMA30F-24-J1	1	1.3 A	Open Frame	CE cURus TUV	24 V	80 %	70 °C	-10 °C	Chassis Mount	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2000 V	Medical
