MS12ASW Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH SLIDE SPDT 6A 125V
| Part | Mechanical Life | Switch Travel | Electrical Life | Actuator Material | Voltage Rating - AC | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Timing | Termination Style | Contact Finish | Actuator Length [x] | Switch Function | Current Rating (Amps) | Features | Circuit | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

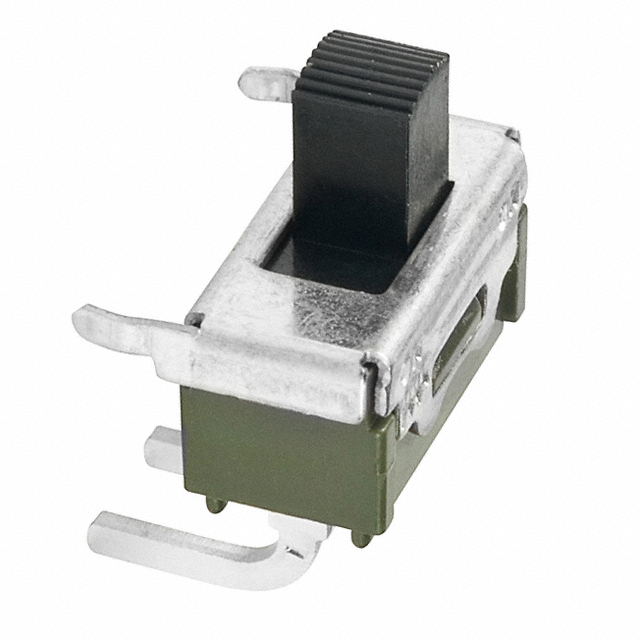

 NKK Switches | 100000 Cycles | 2.2 mm | 25000 Steps | Polybutylene Terephthalate (PBT) Glass Filled | 125 V | Standard | 85 °C | -30 ░C | Non-Shorting (BBM) | PC Pin | Silver | 5.1 mm | On-On | 6 A | Epoxy Sealed Terminals | SPDT | Right Angle Through Hole | Silver Alloy |

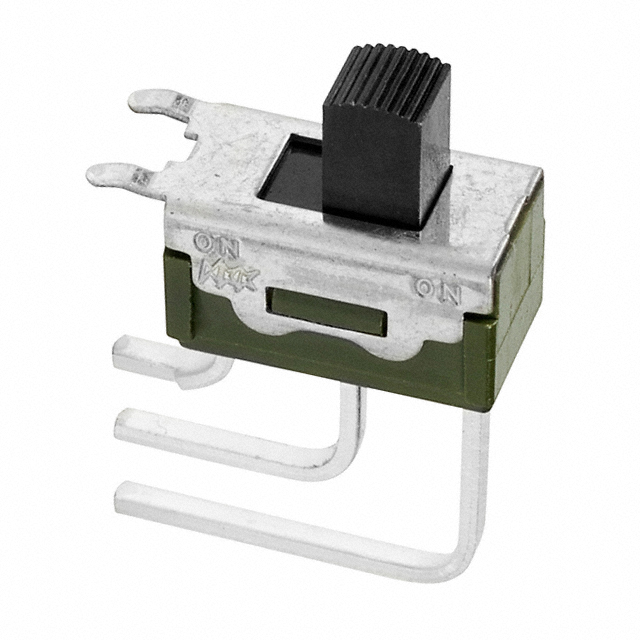

 NKK Switches | 100000 Cycles | 2.2 mm | 25000 Steps | Polybutylene Terephthalate (PBT) Glass Filled | 125 V | Standard | 85 °C | -30 ░C | Non-Shorting (BBM) | PC Pin | Silver | 5.1 mm | On-On | 6 A | Epoxy Sealed Terminals | SPDT | Right Angle Through Hole Vertical | Silver Alloy |

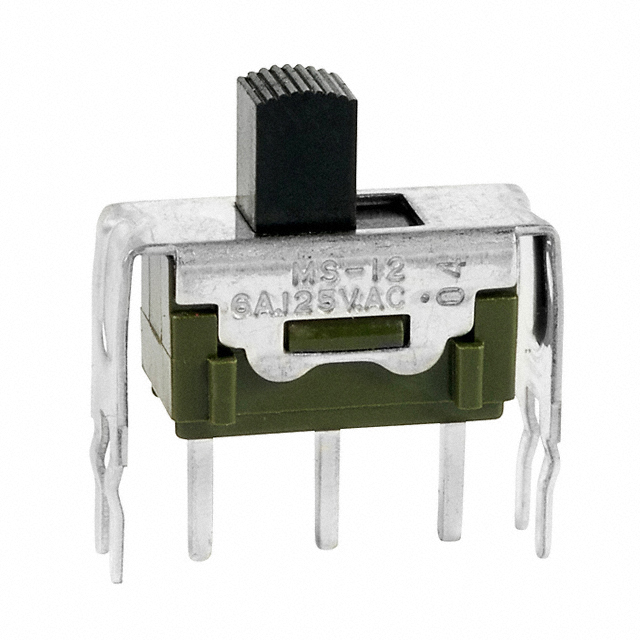

 NKK Switches | 100000 Cycles | 2.2 mm | 25000 Steps | Polybutylene Terephthalate (PBT) Glass Filled | 125 V | Standard | 85 °C | -30 ░C | Non-Shorting (BBM) | PC Pin | Silver | 5.1 mm | On-On | 6 A | Epoxy Sealed Terminals | SPDT | Through Hole | Silver Alloy |
