5970-1 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Material	Tail Type
Mill-Max Manufacturing Corp. 5970-1-15-80-32-84-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	Tin	0.018 in	0.45 mm	2.54 µm	100 µin	Press-Fit	1.57 mm	0.062 in	0.039 in	0.99 mm	0.32 in	8.13 mm	Beryllium Copper	Standard Tail

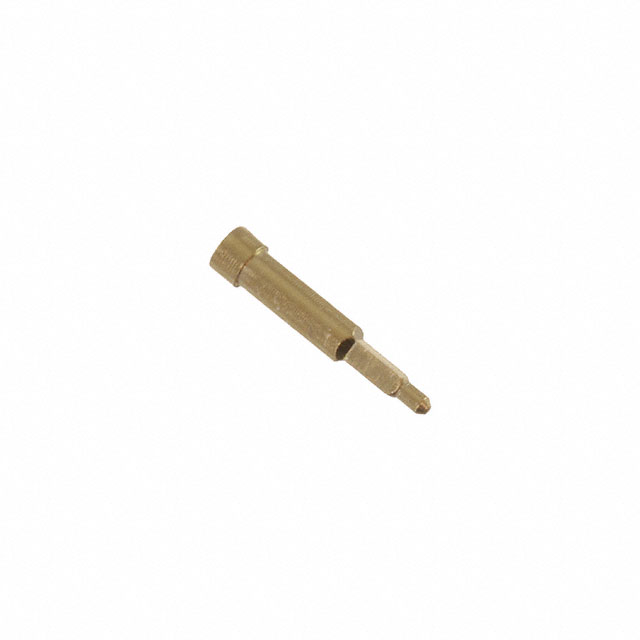

Mill-Max Manufacturing Corp. 5970-1-15-15-32-27-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	Gold	0.175 "	4.45 mm	0.76 Ám	30 Áin	Press-Fit	1.57 mm	0.062 in	0.032 in	0.81 mm	0.32 in	8.13 mm	Beryllium Copper	Standard Tail
Mill-Max Manufacturing Corp. 5970-1-15-80-32-14-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	Gold	0.018 in	0.45 mm	0.25 Ám	10 Áin	Press-Fit	1.57 mm	0.062 in	0.039 in	0.99 mm	0.32 in	8.13 mm	Beryllium Copper	Standard Tail
