LHA-14 Series
Manufacturer: Adam Tech
Beta
⌘K

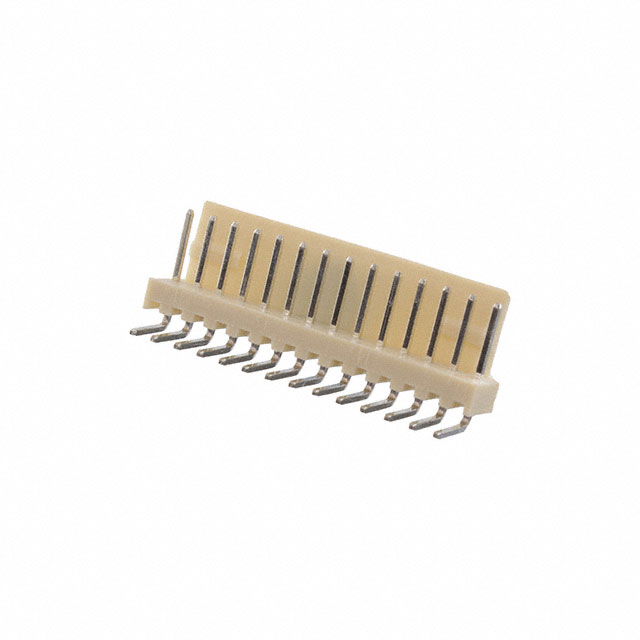

CONN HEADER R/A 14POS 2.54MM
| Part | Style | Number of Positions Loaded | Number of Positions | Fastening Type | Material Flammability Rating | Mounting Type | Contact Length - Mating | Contact Length - Mating [x] | Insulation Height [z] | Insulation Height [z] | Termination | Contact Shape | Pitch - Mating | Pitch - Mating | Shrouding | Contact Finish - Post | Connector Type | Insulation Color | Insulation Material | Contact Material | Contact Length - Post [x] | Contact Length - Post | Number of Rows | Current Rating (Amps) | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Board to Cable/Wire | All | 14 | Friction Lock | UL94 V-2 | Right Angle Through Hole | 7 mm | 0.276 in | 0.228 " | 5.8 mm | Solder | Square | 0.1 " | 2.54 mm | Shrouded - 1 Wall | Tin | Header | White | Nylon 6/6 Polyamide (PA66) | Brass | 0.134 " | 3.4 mm | 1 | 3 A | Male Pin | -40 C | 105 ░C | 250 VAC |
