M2012LL Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 28V

Part	Electrical Life	Actuator Material	Panel Cutout Dimensions [diameter]	Bushing Thread	Termination Style	Voltage Rating - AC	Actuator Length [x]	Actuator Type	Current Rating (Amps)	Ingress Protection	Illumination	Circuit	Mounting Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function

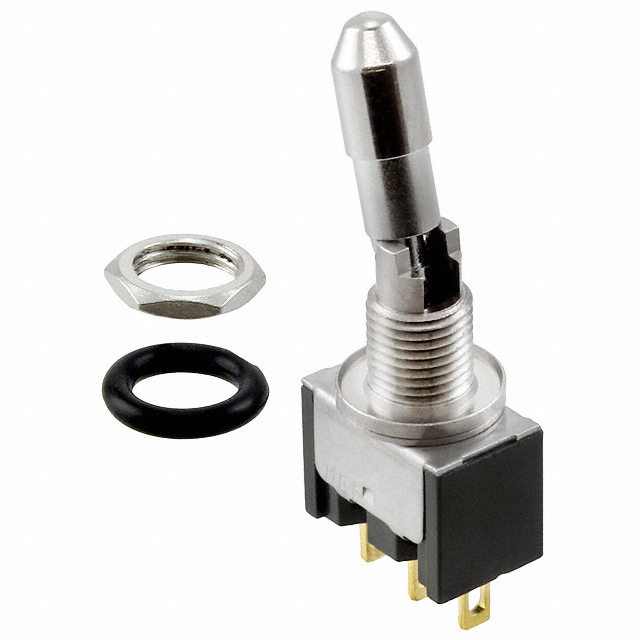

NKK Switches M2012LL3G01	50000 Cycles	Brass Chrome Plated	6.5 mm	1/4-40	Solder Lug	28 V	16.5 mm	Locking Lever	0.4 VA	IP67 - Dust Tight Waterproof	Non-Illuminated	SPDT	Panel Mount	28 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On

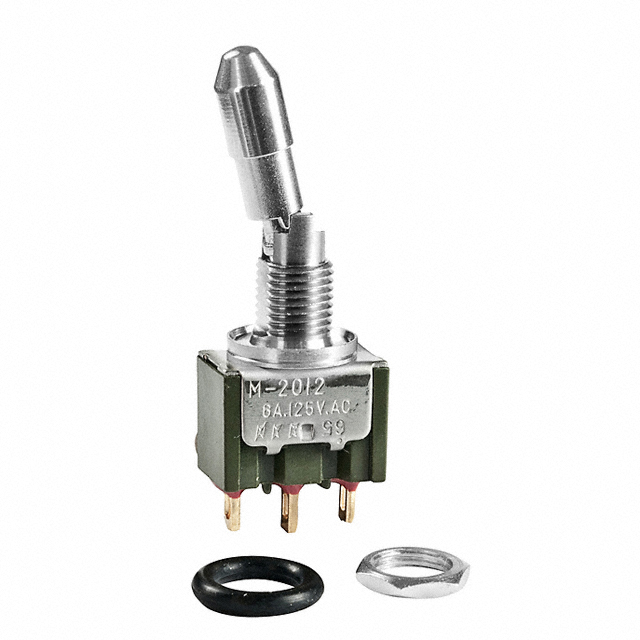

NKK Switches M2012LL3A01	25000 Steps	Brass Chrome Plated	6.5 mm	1/4-40	Solder Lug	125 V	16.5 mm	Locking Lever	4 A 6 A	IP67 - Dust Tight Waterproof	Non-Illuminated	SPDT	Panel Mount	30 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On
NKK Switches M2012LL1W01-H	25000 Steps	Brass Chrome Plated	6.5 mm	1/4-40	Solder Lug	125 V	16.5 mm	Locking Lever	4 A 6 A		Non-Illuminated	SPDT	Panel Mount	30 V	85 °C	-30 ░C	Gray Cap	On-On
NKK Switches M2012LL1G01-A	50000 Cycles	Brass Chrome Plated	6.5 mm	1/4-40	Solder Lug	28 V	16.5 mm	Locking Lever	0.4 VA		Non-Illuminated	SPDT	Panel Mount	28 V	85 °C	-30 ░C	Black Cap	On-On

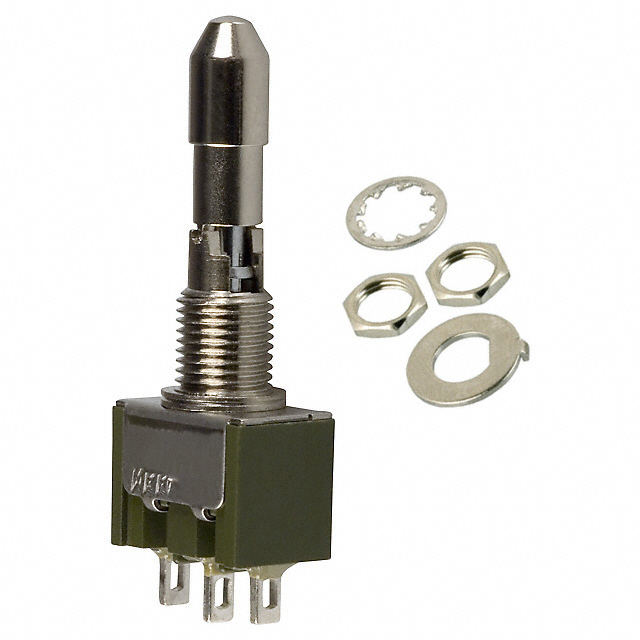

NKK Switches M2012LL1W01	25000 Steps	Brass Chrome Plated	6.5 mm	1/4-40	Solder Lug	125 V	16.5 mm	Locking Lever	4 A 6 A		Non-Illuminated	SPDT	Panel Mount	30 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On

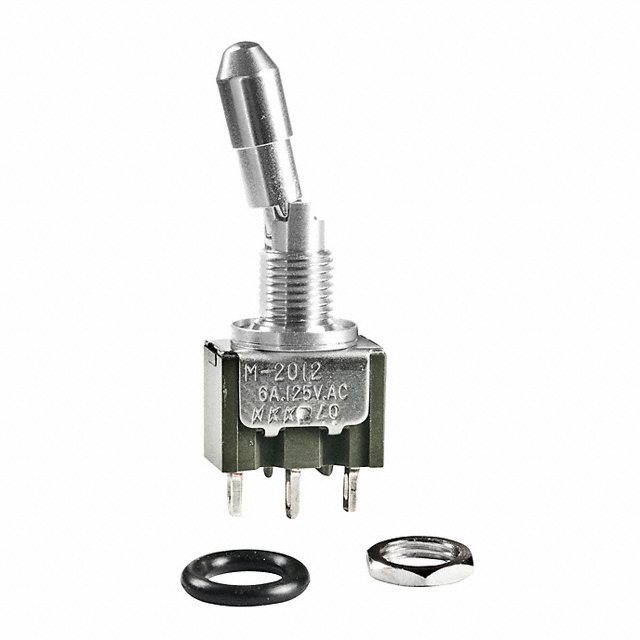

NKK Switches M2012LL3W01	25000 Steps	Brass Chrome Plated	6.5 mm	1/4-40	Solder Lug	125 V	16.5 mm	Locking Lever	4 A 6 A	IP67 - Dust Tight Waterproof	Non-Illuminated	SPDT	Panel Mount	30 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On

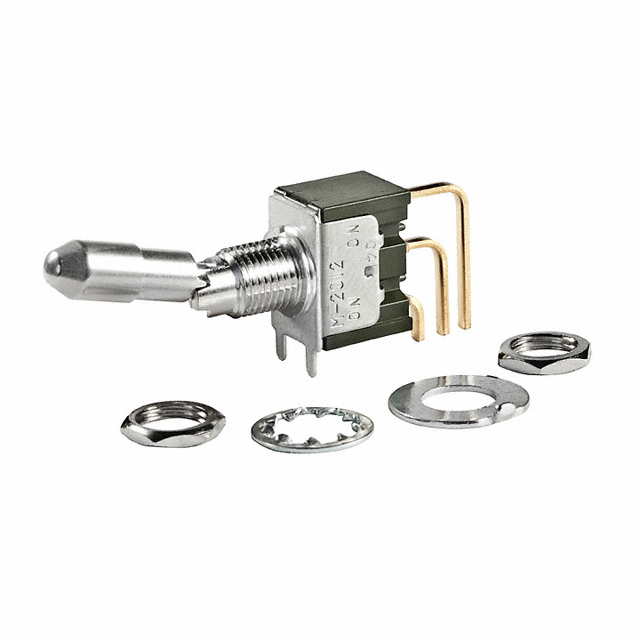

NKK Switches M2012LL1G45	50000 Cycles	Brass Chrome Plated	6.5 mm	1/4-40	PC Pin	28 V	16.5 mm	Locking Lever	0.4 VA		Non-Illuminated	SPDT	Panel Mount Right Angle Vertical	28 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On

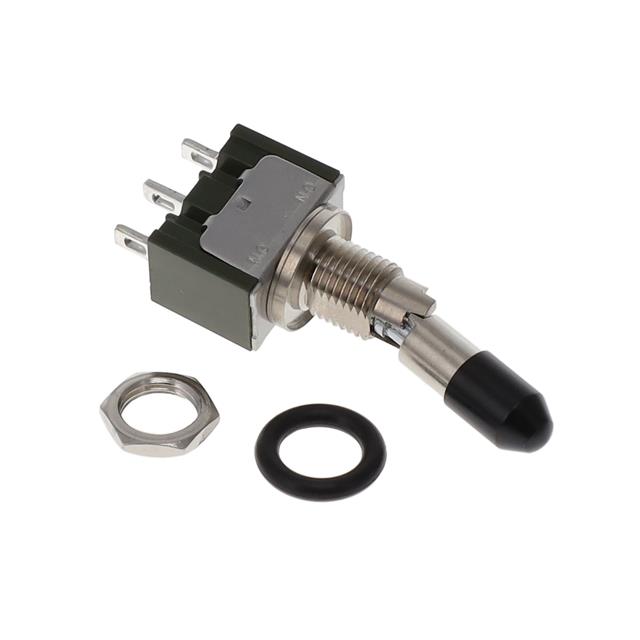

NKK Switches M2012LL3W01-A	25000 Steps	Brass Chrome Plated	6.5 mm	1/4-40	Solder Lug	125 V	16.5 mm	Locking Lever	4 A 6 A	IP67 - Dust Tight Waterproof	Non-Illuminated	SPDT	Panel Mount	30 V	85 °C	-30 ░C	Black Cap	On-On

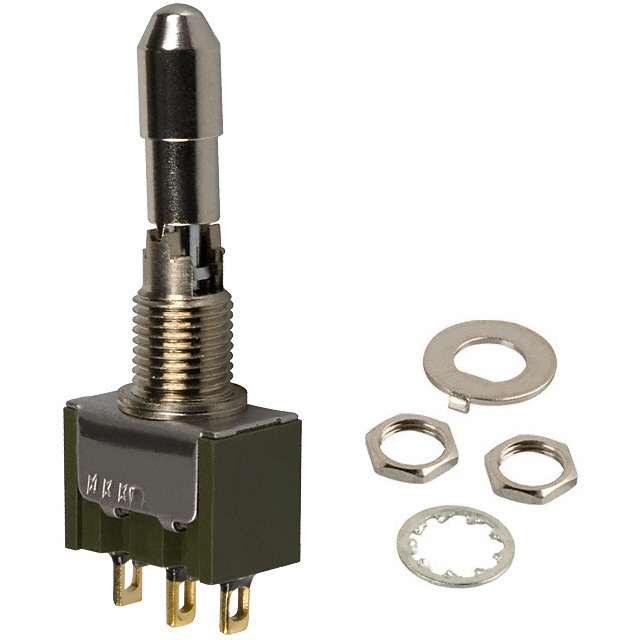

NKK Switches M2012LL1G01	50000 Cycles	Brass Chrome Plated	6.5 mm	1/4-40	Solder Lug	28 V	16.5 mm	Locking Lever	0.4 VA		Non-Illuminated	SPDT	Panel Mount	28 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On
NKK Switches M2012LL1W03-A	25000 Steps	Brass Chrome Plated	6.5 mm	1/4-40	PC Pin	125 V	16.5 mm	Locking Lever	4 A 6 A		Non-Illuminated	SPDT	Panel Mount	30 V	85 °C	-30 ░C	Black Cap	On-On
