PRPC008 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 8POS 2.54MM

Part	Fastening Type	Contact Finish - Post	Number of Positions	Contact Shape	Style	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Current Rating (Amps)	Termination	Insulation Material	Number of Rows	Material Flammability Rating	Shrouding	Mounting Type	Contact Material	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Type	Insulation Color	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length

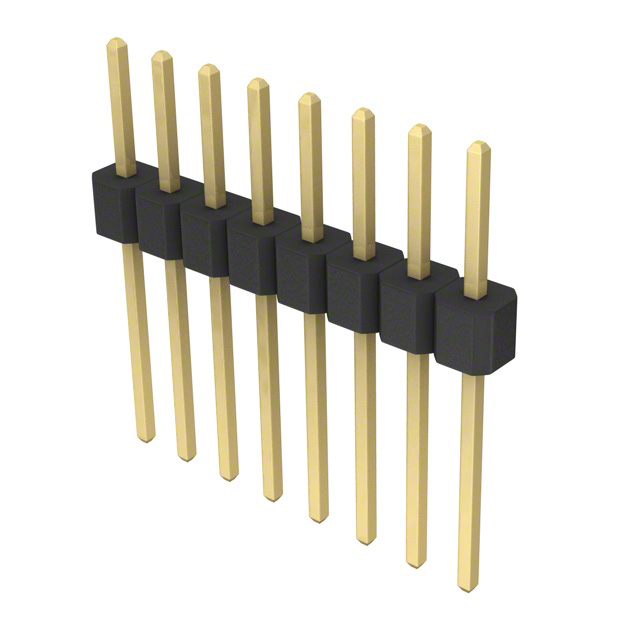

Sullins Connector Solutions PRPC008SADN-RC	Push-Pull	Gold	8	Square	Board to Board Cable	0.098 "	2.5 mm	Flash	0.1 "	2.54 mm	19.01 mm	0.748 in	10.67 mm	0.42 in	Gold	-40 C	105 ░C	Flash	3 A	Solder	Polybutylene Terephthalate (PBT)	1	UL94 V-0	Unshrouded	Through Hole	Brass	All	0.23 in	5.84 mm	Header Breakaway	Male Pin	Black

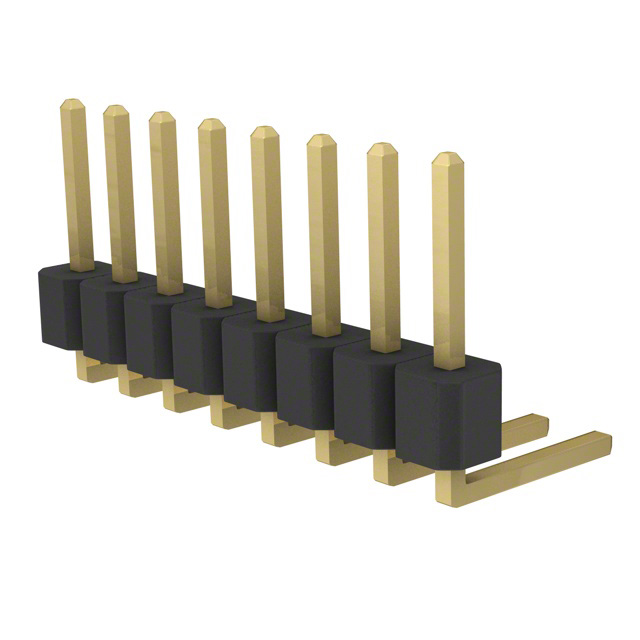

Sullins Connector Solutions PRPC008SBBN-M71RC	Push-Pull	Gold	8	Square	Board to Board Cable	0.098 "	2.5 mm	Flash	0.1 "	2.54 mm			5.58 mm	0.22 in	Gold	-40 C	105 ░C	Flash	3 A	Solder	Polybutylene Terephthalate (PBT)	1	UL94 V-0	Unshrouded	Right Angle Through Hole	Brass	All	0.23 in	5.84 mm	Header Breakaway	Male Pin	Black

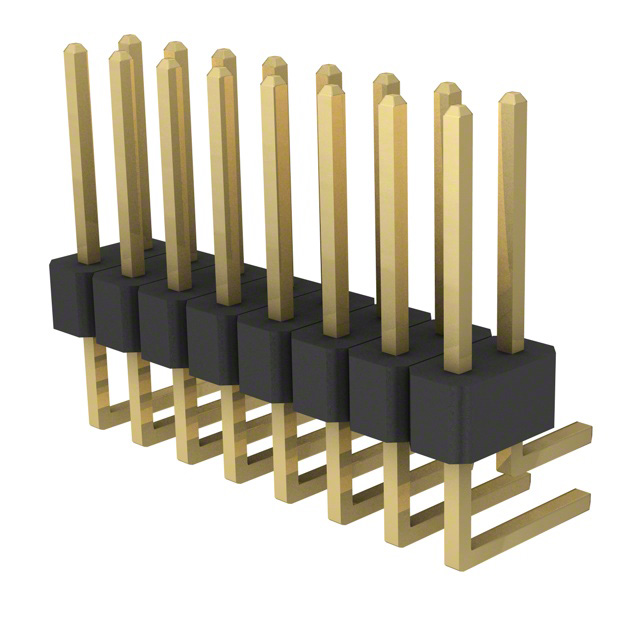

Sullins Connector Solutions PRPC008DGAN-M71RC	Push-Pull	Gold	16	Square	Board to Board Cable	0.197 "	5 mm	Flash	0.1 "	2.54 mm			3.05 mm	0.12 in	Gold	-40 C	105 ░C	Flash	3 A	Solder	Polybutylene Terephthalate (PBT)		UL94 V-0	Unshrouded	Right Angle Through Hole	Brass	All	0.318 in	8.08 mm	Header Breakaway	Male Pin	Black	2	0.1 in	2.54 mm
Sullins Connector Solutions PRPC008SAAN-RC	Push-Pull	Gold	8	Square	Board to Board Cable	0.098 "	2.5 mm	Flash	0.1 "	2.54 mm	11.39 mm	0.448 in	3.05 mm	0.12 in	Gold	-40 C	105 ░C	Flash	3 A	Solder	Polybutylene Terephthalate (PBT)	1	UL94 V-0	Unshrouded	Through Hole	Brass	All	0.23 in	5.84 mm	Header Breakaway	Male Pin	Black

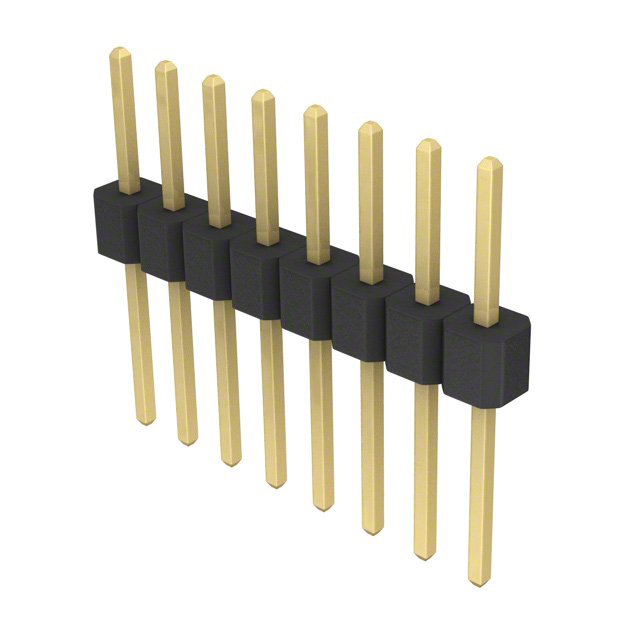

Sullins Connector Solutions PRPC008SACN-RC	Push-Pull	Gold	8	Square	Board to Board Cable	0.098 "	2.5 mm	Flash	0.1 "	2.54 mm			8.13 mm	0.32 in	Gold	-40 C	105 ░C	Flash	3 A	Solder	Polybutylene Terephthalate (PBT)	1	UL94 V-0	Unshrouded	Through Hole	Brass	All	0.23 in	5.84 mm	Header Breakaway	Male Pin	Black				0.648 in	16.47 mm

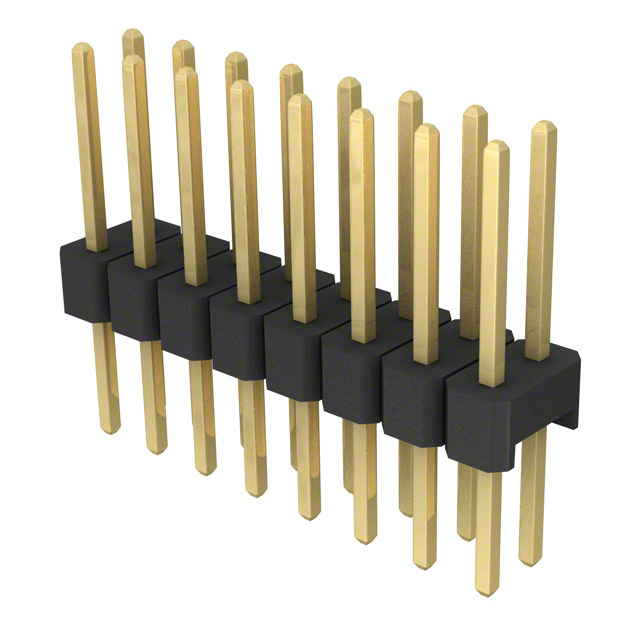

Sullins Connector Solutions PRPC008DFBN-RC	Push-Pull	Gold	16	Square	Board to Board Cable	0.098 "	2.5 mm	Flash	0.1 "	2.54 mm	0.637 in		5.58 mm	0.22 in	Gold	-40 C	105 ░C	Flash	3 A	Solder	Polybutylene Terephthalate (PBT)		UL94 V-0	Unshrouded	Through Hole	Brass	All	0.318 in	8.08 mm	Header Breakaway	Male Pin	Black	2	0.1 in	2.54 mm			16.17 mm

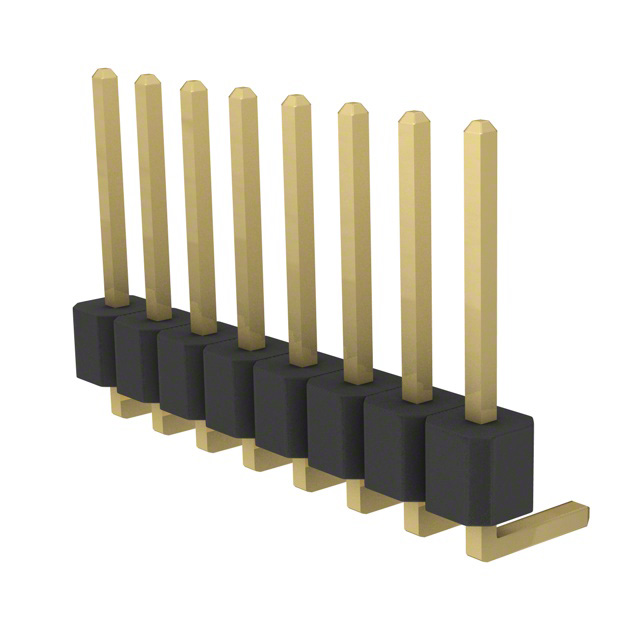

Sullins Connector Solutions PRPC008SGAN-M71RC	Push-Pull	Gold	8	Square	Board to Board Cable	0.098 "	2.5 mm	Flash	0.1 "	2.54 mm			3.05 mm	0.12 in	Gold	-40 C	105 ░C	Flash	3 A	Solder	Polybutylene Terephthalate (PBT)	1	UL94 V-0	Unshrouded	Right Angle Through Hole	Brass	All	0.318 in	8.08 mm	Header Breakaway	Male Pin	Black
