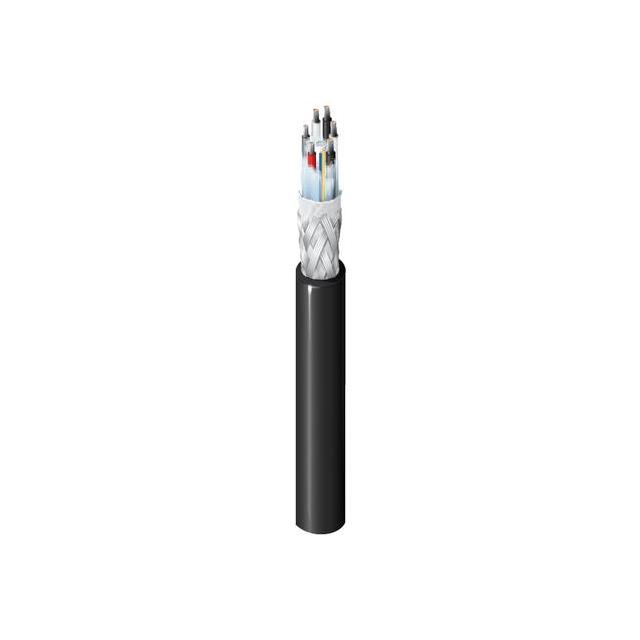

7804WB Series
Manufacturer: Belden Inc.
Beta
⌘K
COMPOSITE CAMERA CABLE PO
| Part | Shield Material | Shield Coverage | Cable Type | Features | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket Color | Jacket (Insulation) Material | Conductor Insulation | Conductor Material | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 95 % | Multi-Conductor | Water-Blocked | 8 | 70 °C | -40 C | 9.06 mm | 0.357 in | 7 Strands 19 | 32 AWG | Braid | Black | Polyolefin (PO) | Polyethylene (PE) | Copper Tinned | 20 AWG 24 AWG | 2500 ft | 762 m |
