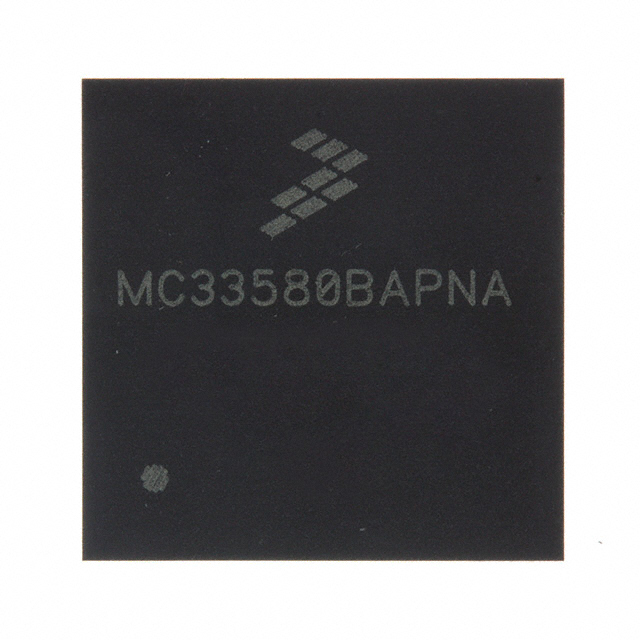

MC33580 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
4 CHANNEL, PWM BASED PRPHL DRVR, PQCC24, 12 X 12 MM, 2.10 MM HEIGHT, 0.90 MM PITCH, ROHS COMPLIANT, PLASTIC, QFN-24
| Part | Features | Switch Type | Fault Protection | Number of Outputs | Rds On (Typ) | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Output Type | Interface | Ratio - Input:Output [custom] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Output Configuration | Package / Case | Voltage - Load [Max] | Voltage - Load [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | Slew Rate Controlled Watchdog Timer | General Purpose | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 4 | 15 mOhm | 5.5 V | 4.5 V | N-Channel | SPI | 1:1 | Surface Mount | 150 °C | -40 °C | 24-PQFN (12x12) | High Side | 24-PowerQFN | 27 V | 6 V |
