1586861 Series

Catalog

4P PM PLUG VAL-U-LOK PM GW

Part	Note	Contact Type	Number of Positions	Pitch	Pitch	Mounting Type	Connector Type	Contact Termination	Color	Fastening Type	Row Spacing	Row Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Insulation Material

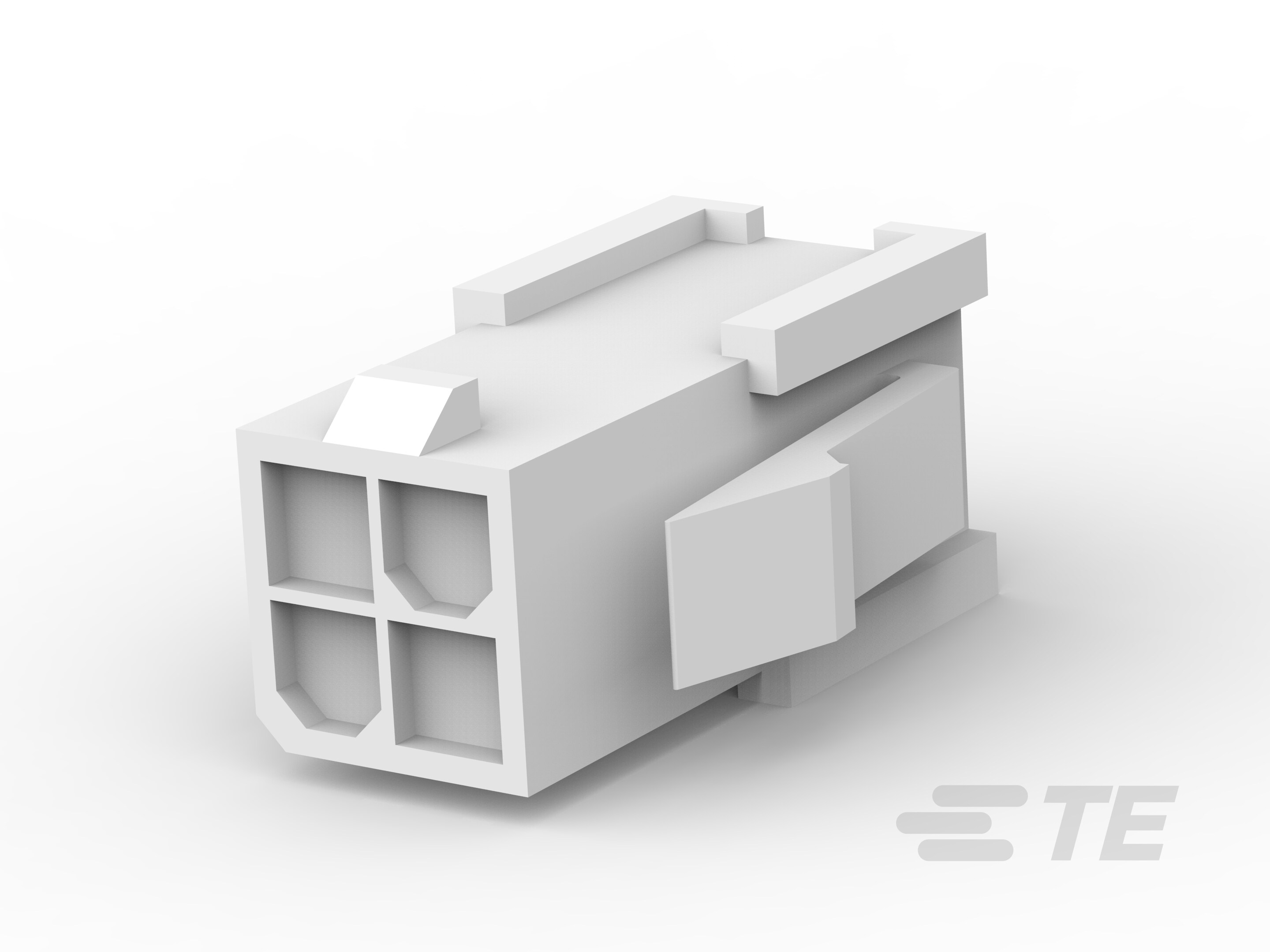

TE Connectivity AMP Connectors 1586861-4	Contacts Not Included	Male Pin	4	0.165 in	4.2 mm	Panel Mount	Plug	Crimp	White	Latch Holder	0.165 in	4.2 mm	-40 C	105 ░C	2	Nylon Polyamide (PA)

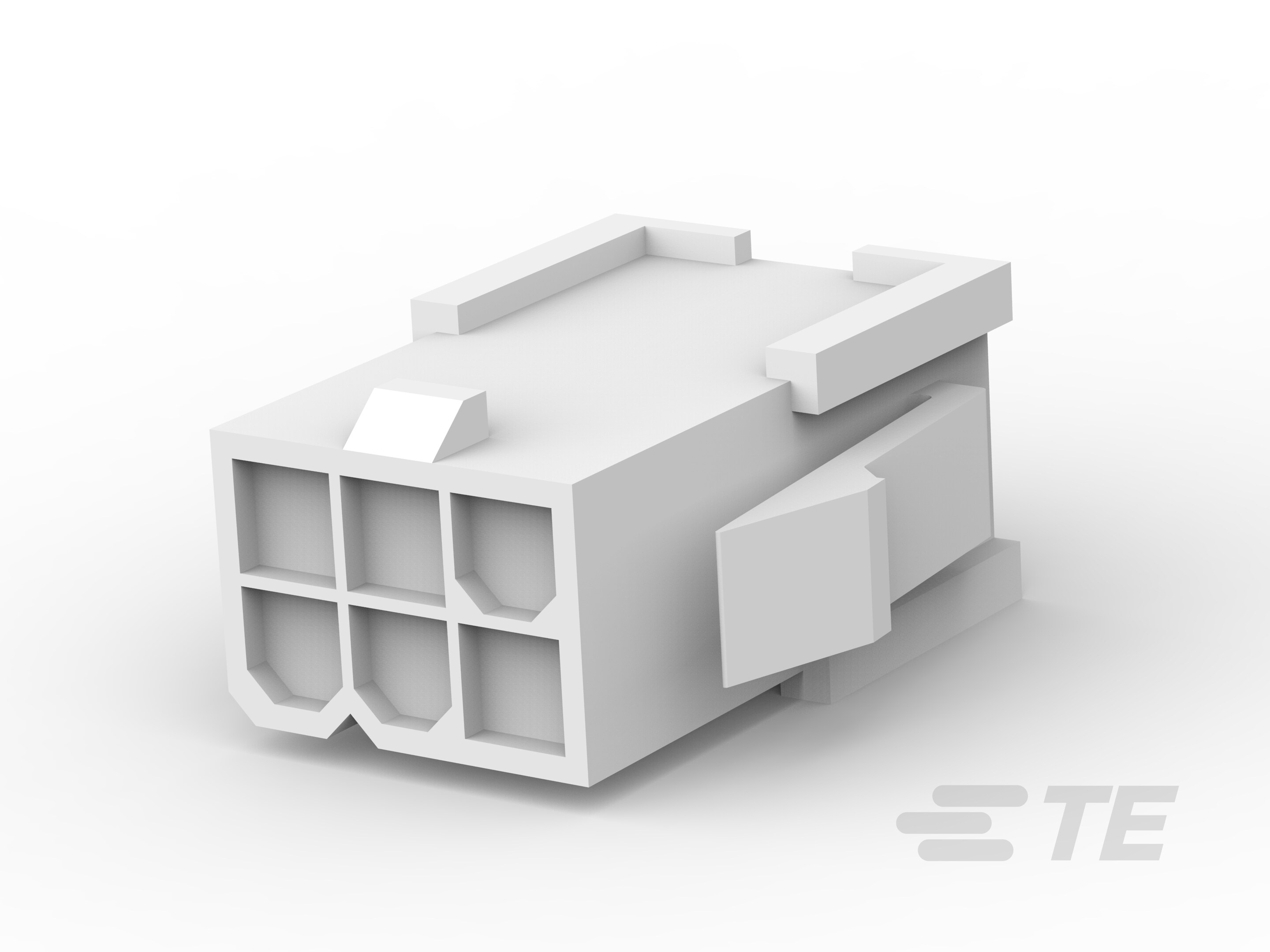

TE Connectivity AMP Connectors 1586861-6	Contacts Not Included	Male Pin	6	0.165 in	4.2 mm	Panel Mount	Plug	Crimp	White	Latch Holder	0.165 in	4.2 mm	-40 C	105 ░C	2	Nylon Polyamide (PA)
TE Connectivity AMP Connectors 1-1586861-8	Contacts Not Included	Male Pin	18	0.165 in	4.2 mm	Panel Mount	Plug	Crimp	White	Latch Holder	0.165 in	4.2 mm	-40 C	105 ░C	2	Nylon Polyamide (PA)
TE Connectivity AMP Connectors 2-1586861-0	Contacts Not Included	Male Pin	20	0.165 in	4.2 mm	Panel Mount	Plug	Crimp	White	Latch Holder	0.165 in	4.2 mm	-40 C	105 ░C	2	Nylon Polyamide (PA)

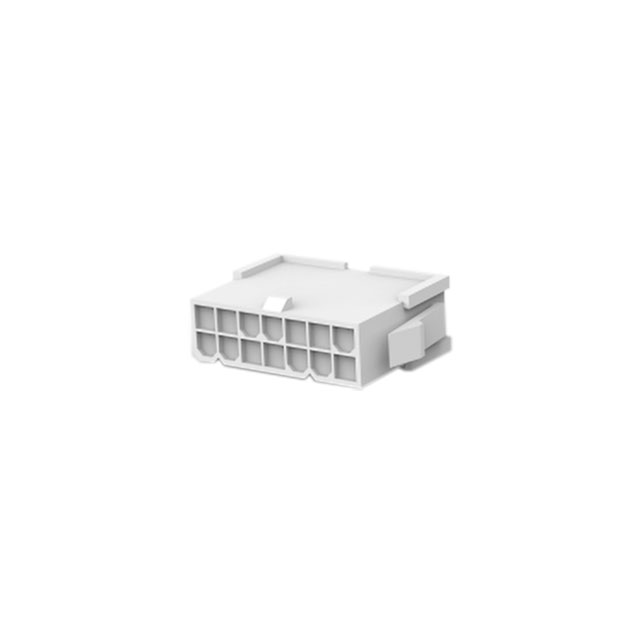

TE Connectivity AMP Connectors 1-1586861-4	Contacts Not Included	Male Pin	14	0.165 in	4.2 mm	Panel Mount	Plug	Crimp	White	Latch Holder	0.165 in	4.2 mm	-40 C	105 ░C	2	Nylon Polyamide (PA)

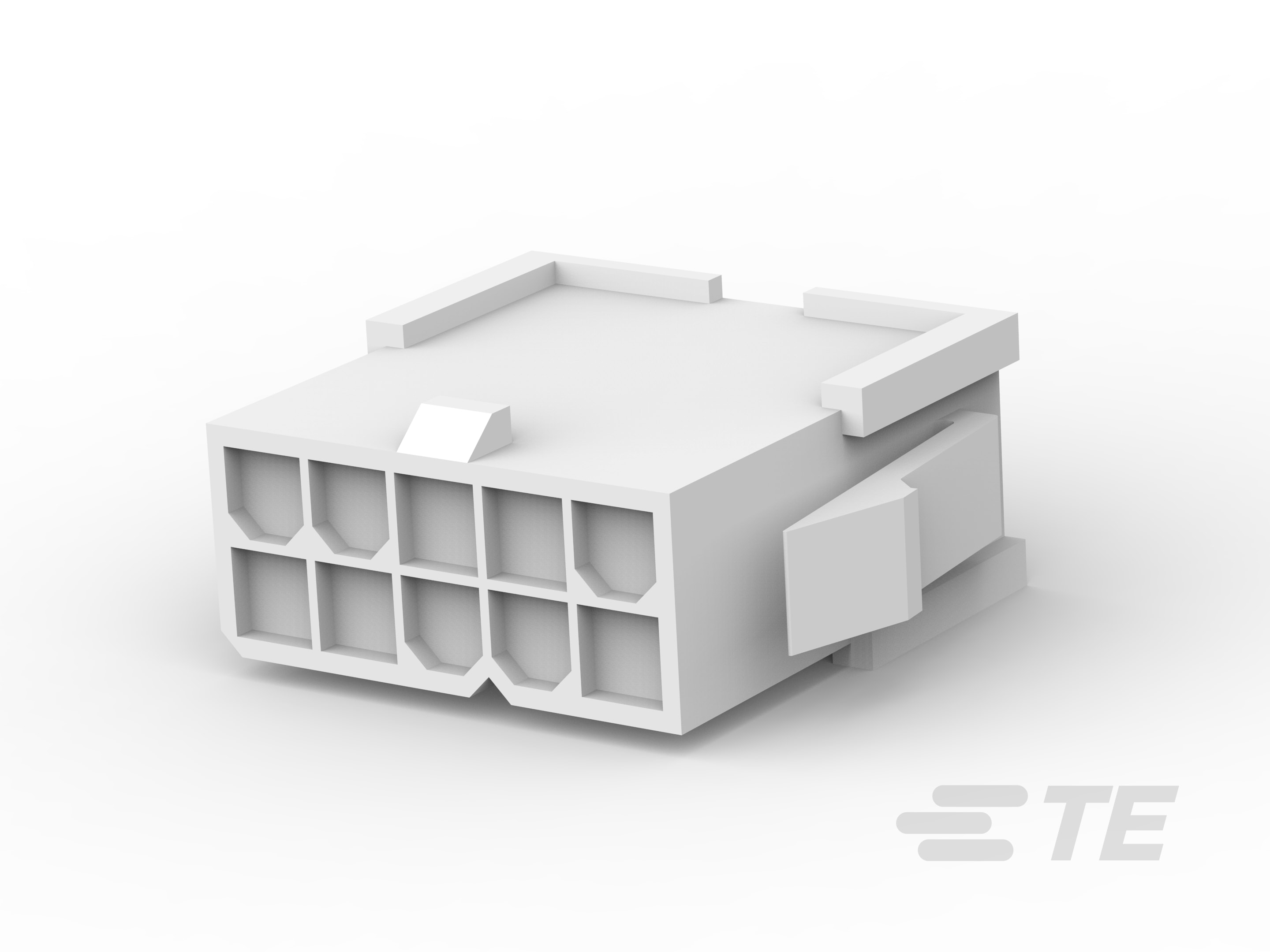

TE Connectivity AMP Connectors 1-1586861-0	Contacts Not Included	Male Pin	10	0.165 in	4.2 mm	Panel Mount	Plug	Crimp	White	Latch Holder	0.165 in	4.2 mm	-40 C	105 ░C	2	Nylon Polyamide (PA)
