R11042 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
MMCX / STRAIGHT JACK RECEPTACLE
| Part | Body Material | Body Finish | Dielectric Material | Voltage Rating | Center Contact Plating | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Shield Termination | Frequency - Max [Max] | Impedance | Contact Termination | Connector Style | Number of Ports | Connector Type | Center Contact Material | Fastening Type | Housing Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

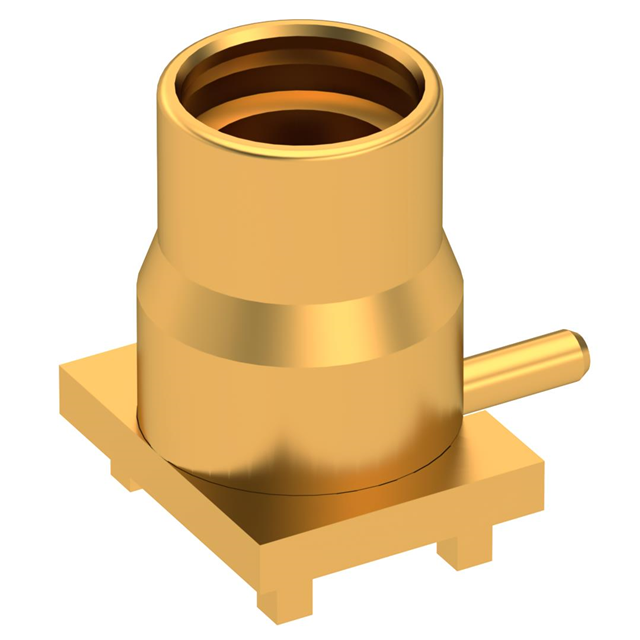

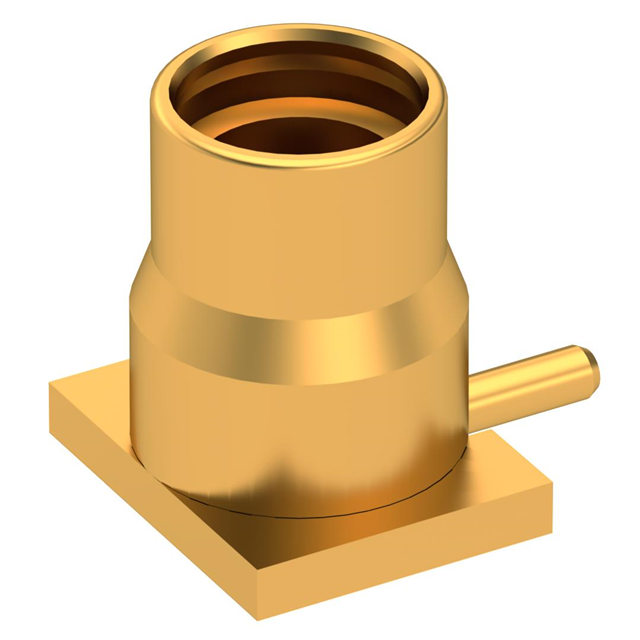

 Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 500 | 155 C | -55 C | Solder | 6000 MHz | 50 Ohms | Solder | MMCX | 1 | Receptacle Female Socket | Beryllium Copper | Snap-On | Gold | Surface Mount |

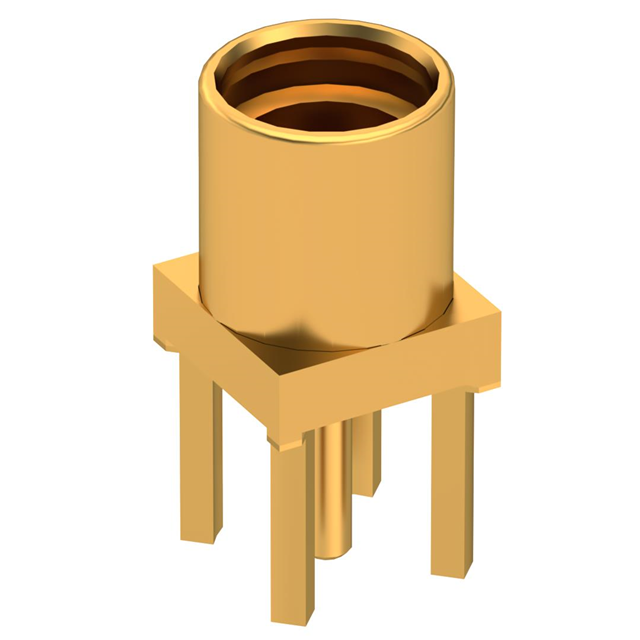

 Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | 170 V | Gold | 500 | 155 C | -55 C | Solder | 6000 MHz | 50 Ohms | Solder | MMCX | 1 | Female Socket Jack | Beryllium Copper | Snap-On | Gold | Through Hole |
 Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | 170 V | Gold | 500 | 155 C | -55 C | Solder | 6000 MHz | 50 Ohms | Solder | MMCX | 1 | Female Socket Jack | Beryllium Copper | Snap-On | Gold | Through Hole |
 Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 500 | 155 C | -55 C | Solder | 6000 MHz | 50 Ohms | Solder | MMCX | 1 | Receptacle Female Socket | Beryllium Copper | Snap-On | Gold | Surface Mount |
Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 500 | 155 C | -55 C | Solder | 6000 MHz | 50 Ohms | Solder | MMCX | 1 | Receptacle Female Socket | Beryllium Copper | Snap-On | Gold | Surface Mount |
Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | 170 V | Gold | 155 C | -55 C | Solder | 6000 MHz | 50 Ohms | Solder | MMCX | 1 | Female Socket Jack | Beryllium Copper | Snap-On | Gold | Surface Mount | |
Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 500 | 155 C | -55 C | Solder | 6000 MHz | 50 Ohms | Solder | MMCX | 1 | Receptacle Female Socket | Beryllium Copper | Snap-On | Gold | Surface Mount |

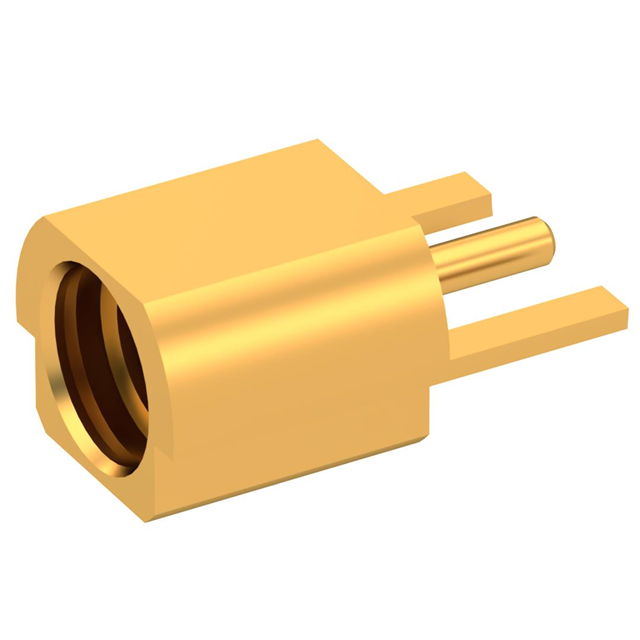

Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 500 | 155 C | -55 C | Solder | 6000 MHz | 50 Ohms | Solder | MMCX | 1 | Female Socket Jack | Beryllium Copper | Snap-On | Gold | Board Edge Cutout Surface Mount |
 Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 500 | 155 C | -55 C | Solder | 6000 MHz | 50 Ohms | Solder | MMCX | 1 | Female Socket Jack | Beryllium Copper | Snap-On | Gold | Board Edge Cutout Surface Mount |
