Atps190 Series Series

Anti-Vandal Short Body Sealed Pushbutton Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Anti-Vandal Short Body Sealed Pushbutton Switch

Part	Ingress Protection	Current Rating (Amps)	Illumination Type, Color	Actuator Type	Mounting Type	Type	Mechanical Life	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Actuator Marking	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Switch Function	Circuit
Littelfuse/Commercial Vehicle Products ATPS19SL1306M0SA04G	IP67 - Dust Tight Waterproof	2 A	LED Red	Button Flush Round	Panel Mount Front	Anti-Vandal Illuminated	1000000 Cycles	200000 Cycles	Solder Lug	-20 C	70 °C	36 VDC	No Marking	6 V	19.2 mm	Silver	Off-Mom	SPST-NO
Littelfuse/Commercial Vehicle Products ATPS19SL1303M0SA04G	IP67 - Dust Tight Waterproof	2 A	LED Red	Button Flush Round	Panel Mount Front	Anti-Vandal Illuminated	1000000 Cycles	200000 Cycles	Solder Lug	-20 C	70 °C	36 VDC	No Marking	3 VDC	19.2 mm	Silver	Off-Mom	SPST-NO
Littelfuse/Commercial Vehicle Products ATPS19SL5612M4SA04G	IP67 - Dust Tight Waterproof	2 A	Green LED	Button Flush Round	Panel Mount Front	Anti-Vandal Illuminated	1000000 Cycles	200000 Cycles	Solder Lug	-20 C	70 °C	36 VDC	No Marking	12 VDC	19 mm	Silver	Off-Mom	SPST-NO
Littelfuse/Commercial Vehicle Products ATPS19SL1612M0SA04G	IP67 - Dust Tight Waterproof	2 A	Green LED	Button Flush Round	Panel Mount Front	Anti-Vandal Illuminated	1000000 Cycles	200000 Cycles	Solder Lug	-20 C	70 °C	36 VDC	No Marking	12 VDC	19.2 mm	Silver	Off-Mom	SPST-NO

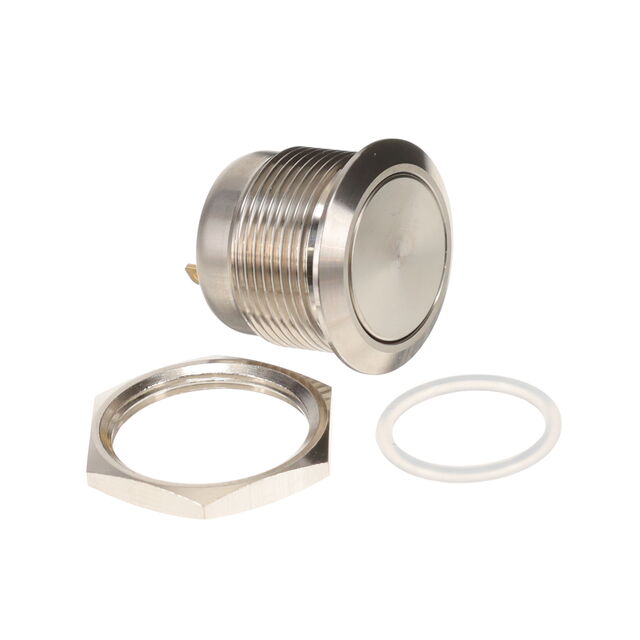

Littelfuse/Commercial Vehicle Products ATPS19SL0000M0SA04G	IP67 - Dust Tight Waterproof	2 A		Button Flush Round	Panel Mount Front	Anti-Vandal	1000000 Cycles	200000 Cycles	Solder Lug	-20 C	70 °C	36 VDC	No Marking		19.2 mm	Silver	Off-Mom	SPST-NO
Littelfuse/Commercial Vehicle Products ATPS19SL5306M4SA04G	IP67 - Dust Tight Waterproof	2 A	LED Red	Button Flush Round	Panel Mount Front	Anti-Vandal Illuminated	1000000 Cycles	200000 Cycles	Solder Lug	-20 C	70 °C	36 VDC	No Marking	6 V	19 mm	Silver	Off-Mom	SPST-NO
Littelfuse/Commercial Vehicle Products ATPS19SL5612M2SA04G	IP67 - Dust Tight Waterproof	2 A	Green LED	Button Flush Round	Panel Mount Front	Anti-Vandal Illuminated	1000000 Cycles	200000 Cycles	Solder Lug	-20 C	70 °C	36 VDC	No Marking	12 VDC	19.2 mm	Silver	Off-Mom	SPST-NO

Catalog

Anti-Vandal Short Body Sealed Pushbutton Switch

Key Features

• IP67 sealed to endure harsh environments

• Light weight & high strength

• Snap-action provide positive feedback

• 1,000,000 life cycle

• IK10 rated impact protection

Description

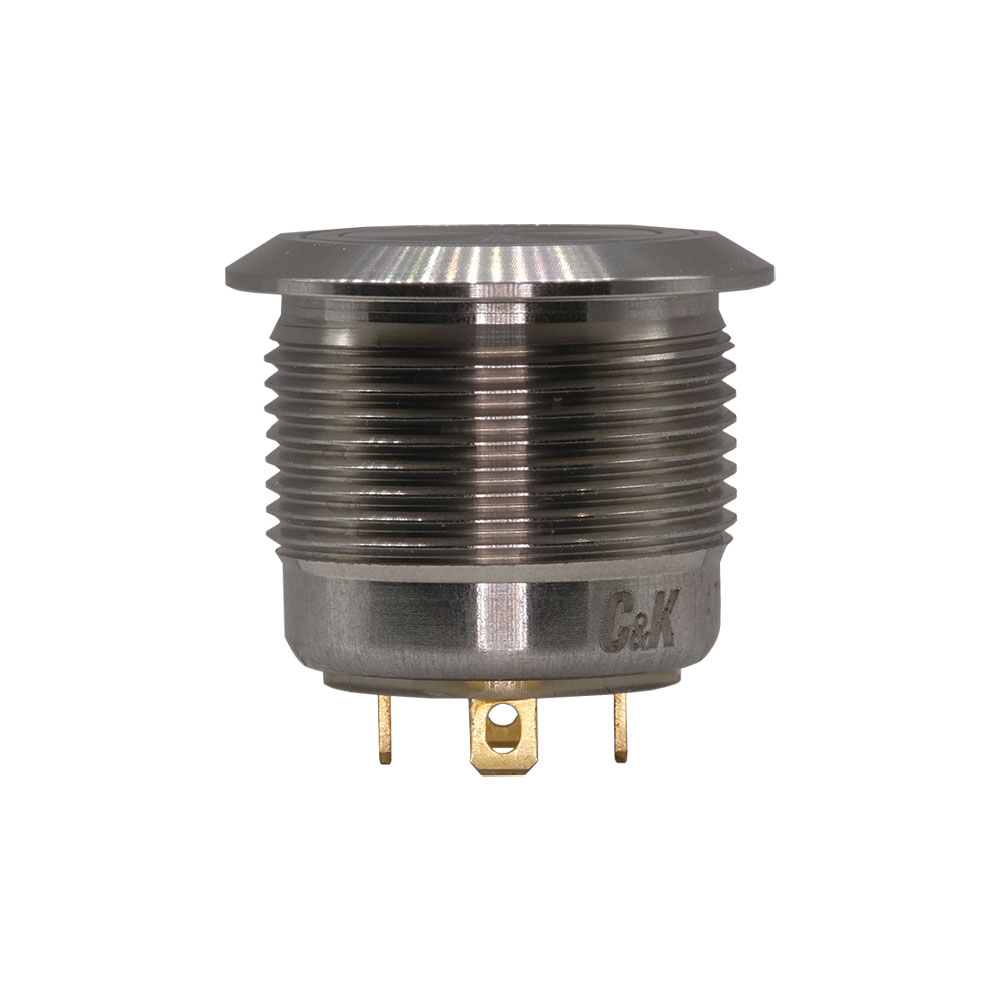

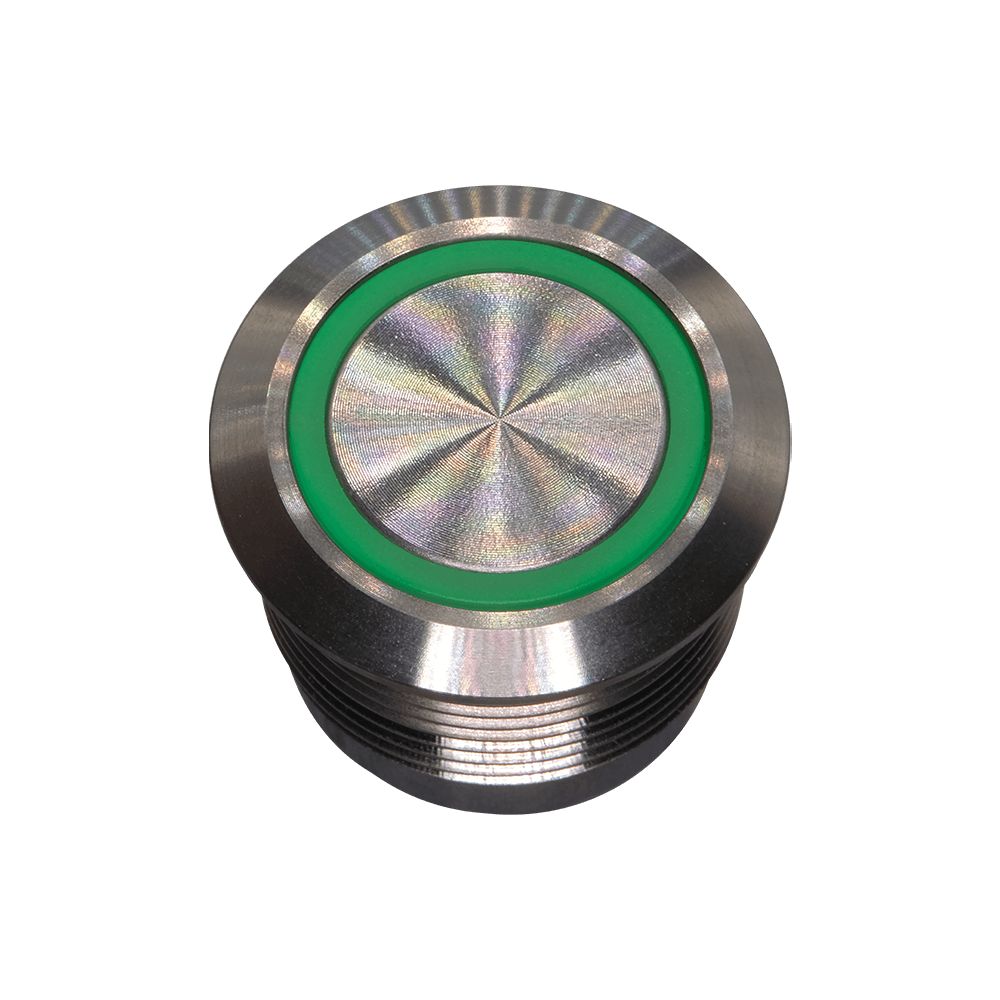

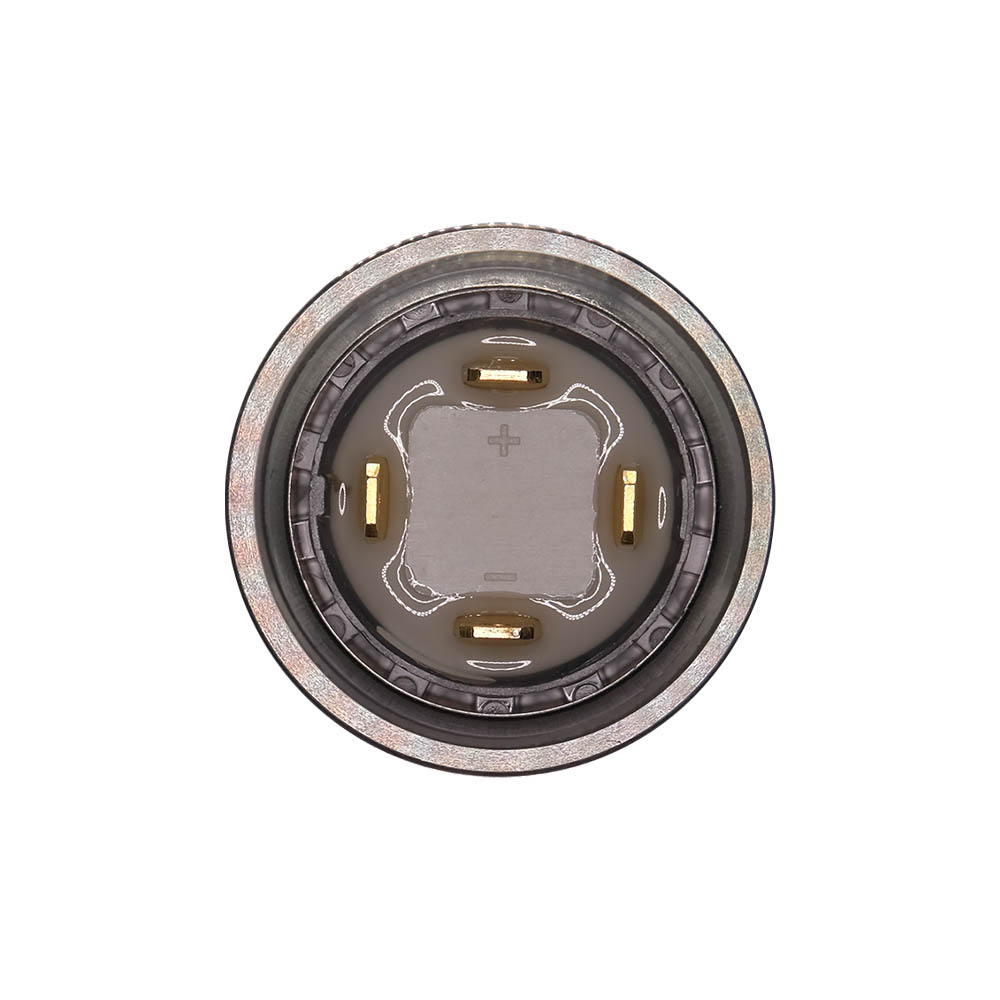

The ATPS19 series is designed to withstand deliberate damage and vandalism, which in turn can reduce the need for costly in-field repairs and product recalls. Besides being vandal proof, the new switches share many characteristics of other ATP switches in the range, including being lightweight, IP67-rated and corrosion resistant. As the devices integrating this switch are often outdoors, the switch has been designed to withstand extreme environmental conditions and water exposure.
