UF6036 Series

Catalog

FAN BLWR CF 230VAC 462X98X90MM

Part	Material - Blade [custom]	Material - Frame	Current Rating (Amps)	Voltage - Rated	Fan Type	Width [x]	Weight	Weight	Air Flow	Air Flow	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Termination	Noise	Static Pressure	Static Pressure	RPM	Features	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]
Mechatronics Fan Group UF6036CBA23H-L	Aluminum	Steel	0.17 A	230 VAC	Blower Cross Flow	98 mm	2.1 kg	4.6 lbs	212 CFM	5.94 m³/min	Ball	-40 C	70 °C	70 °C	-40 °C	CE TUV	2 Wire Leads	53 dB	0.3 in H2O	74.7 Pa	2800 RPM	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	37 W	90 mm	462 mm

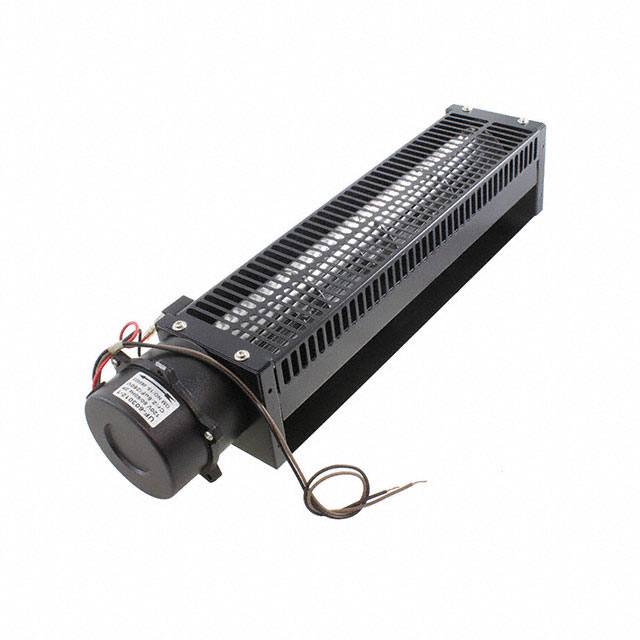

Mechatronics Fan Group UF6036CBA12H-L	Aluminum	Steel	0.33 A	120 VAC	Blower Cross Flow	98 mm	2.1 kg	4.6 lbs	212 CFM	5.94 m³/min	Ball	-40 C	70 °C	70 °C	-40 °C	CE TUV	2 Wire Leads	53 dB	0.3 in H2O	74.7 Pa	2800 RPM	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	37 W	90 mm	462 mm
