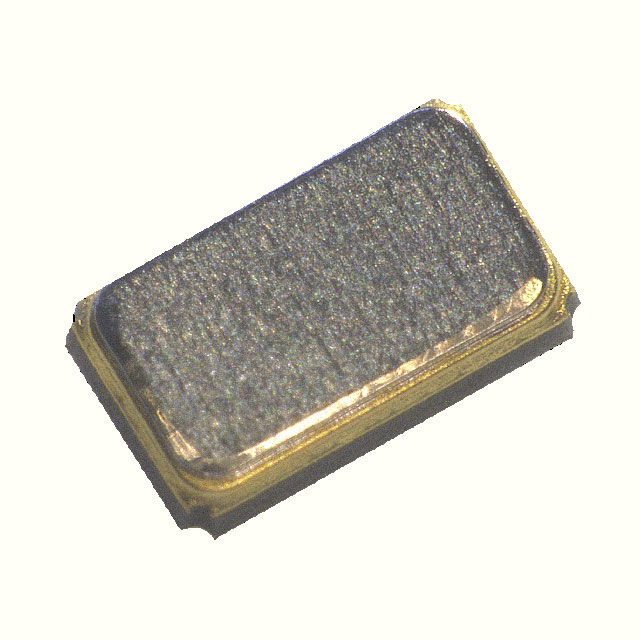

FC1610AN Series

Manufacturer: EPSON

Catalog

CRYSTAL 32.768KHZ 7PF SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency	Mounting Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	ESR (Equivalent Series Resistance)	Operating Mode	Frequency Tolerance	Package / Case	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Load Capacitance	Operating Temperature [Max]	Operating Temperature [Min]
EPSON FC1610AN 32.7680KA-AG	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	7 pF	85 °C	-40 C
EPSON FC1610AN 32.7680K-70NN90KCB	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	7 pF	85 °C	-40 C
EPSON FC1610AN 32.7680K-70NN90KC0	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	7 pF	85 °C	-40 C
EPSON FC1610AN 32.7680KA-AG5	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	7 pF	85 °C	-40 C
EPSON FC1610AN 32.7680KA-A7	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	12.5 pF	85 °C	-40 C
EPSON FC1610AN 32.7680KA-A5	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	12.5 pF	85 °C	-40 C
EPSON FC1610AN 32.7680KA-AC5	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	9 pF	85 °C	-40 C
EPSON FC1610AN 32.7680KA-AC7	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	9 pF	85 °C	-40 C
EPSON FC1610AN 32.7680KA-AC3	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	9 pF	85 °C	-40 C
EPSON FC1610AN 32.7680K-60NN90KC0	0.065 in	0.041 in	1.05 mm	1.65 mm	0.032768 MHz	Surface Mount	1.65	1.05	2-SMD	90 kOhms	Fundamental	20 ppm	2-SMD No Lead	kHz Crystal (Tuning Fork)	0.02 in	0.5 mm	6 pF	85 °C	-40 C
