XCL224 Series

Catalog

0.4A/0.7A INDUCTOR BUILT-IN STEP

Part	Package / Case	Supplier Device Package	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Efficiency	Voltage - Input (Max) [Max]	Control Features	Voltage - Output 1	Applications	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type

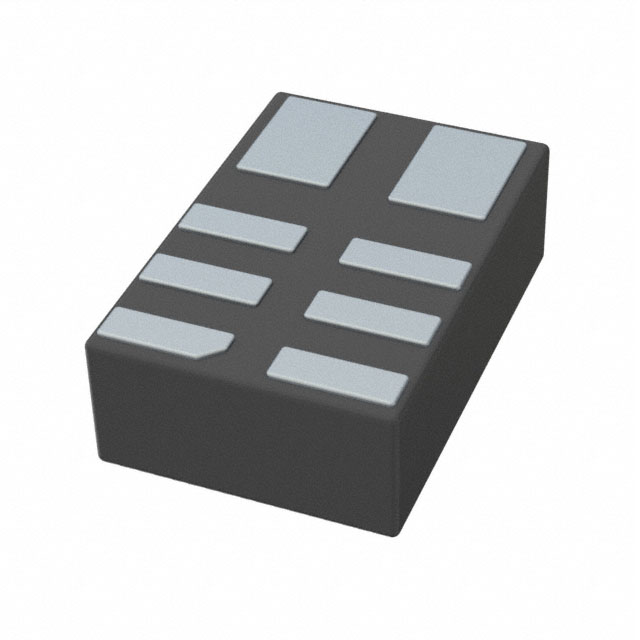

Torex Semiconductor Ltd XCL224B113D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount
Torex Semiconductor Ltd XCL224A333D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount	2.5 V	700 mA	1	88 %	5.5 V	Active High Enable	3.3 V	ITE (Commercial)	OCP OTP SCP UVLO	-40 C	105 ░C	0.03 "	0.06 "	0.8 mm	0.09 in	1.5 mm	2.3 mm	Non-Isolated PoL Module
Torex Semiconductor Ltd XCL224B123D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount
Torex Semiconductor Ltd XCL224B0M3D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount
Torex Semiconductor Ltd XCL224B1K3D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount
Torex Semiconductor Ltd XCL224B163D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount
Torex Semiconductor Ltd XCL224A123D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount	2.5 V	700 mA	1	88 %	5.5 V	Active High Enable	1.2 V	ITE (Commercial)	OCP OTP SCP UVLO	-40 C	105 ░C	0.03 "	0.06 "	0.8 mm	0.09 in	1.5 mm	2.3 mm	Non-Isolated PoL Module
Torex Semiconductor Ltd XCL224B173D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount
Torex Semiconductor Ltd XCL224A183D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount	2.5 V	700 mA	1	88 %	5.5 V	Active High Enable	1.8 V	ITE (Commercial)	OCP OTP SCP UVLO	-40 C	105 ░C	0.03 "	0.06 "	0.8 mm	0.09 in	1.5 mm	2.3 mm	Non-Isolated PoL Module
Torex Semiconductor Ltd XCL224B323D2-G	8-PowerWFDFN Module	USP-8B04	Surface Mount
