845-018 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

845 HIGH TEMP' SERIES (.100" (2.

...

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Pitch	Pitch	Card Type	Contact Type	Read Out	Contact Finish	Mounting Type	Number of Positions/Bay/Row	Color	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Termination	Flange Feature	Features	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows

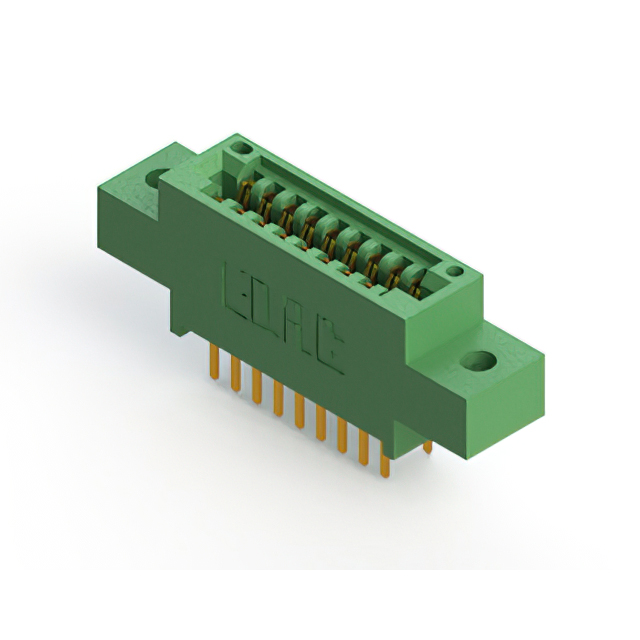

EDAC Inc. 845-018-520-802	Diallyl Phthalate (DAP)	2	Copper Alloy	125 °C	-40 C	18	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Non Specified - Dual Edge	Cantilever	Dual	Gold	Through Hole	9	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Solder
EDAC Inc. 845-018-555-202	Diallyl Phthalate (DAP)	2	Copper Alloy	125 °C	-40 C	18	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Non Specified - Dual Edge	Cantilever	Dual	Gold	Board Edge Straddle Mount	9	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Solder	Flush Mount Top Opening Unthreaded	Card Extender
EDAC Inc. 845-018-500-812	Diallyl Phthalate (DAP)	2	Copper Alloy	125 °C	-40 C	18	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Non Specified - Dual Edge	Cantilever	Dual	Gold	Through Hole	9	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Solder Eyelet(s)	Side Mount Opening Unthreaded

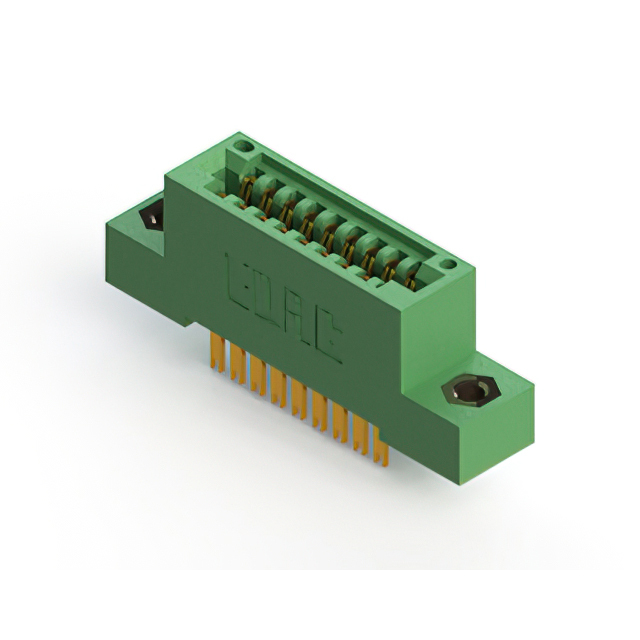

EDAC Inc. 845-018-500-207	Diallyl Phthalate (DAP)	2	Copper Alloy	125 °C	-40 C	18			Female	0.1 "	2.54 mm	Non Specified - Dual Edge	Cantilever	Dual	Gold	Through Hole	9	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening

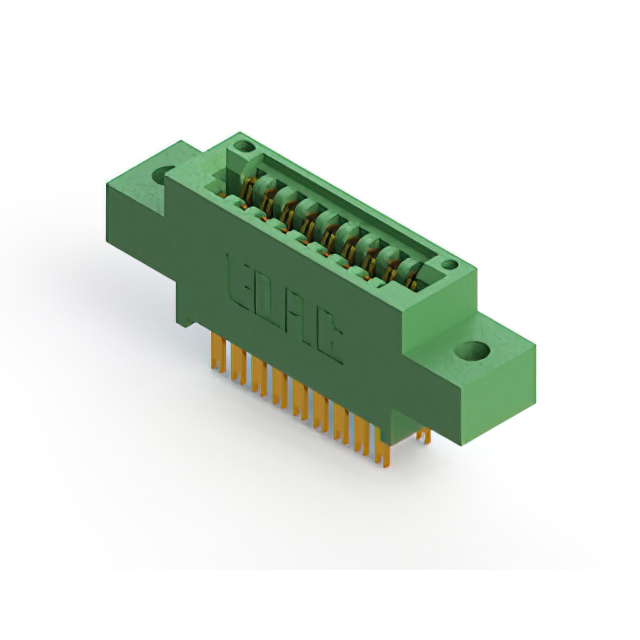

EDAC Inc. 845-018-500-802	Diallyl Phthalate (DAP)	2	Copper Alloy	125 °C	-40 C	18	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Non Specified - Dual Edge	Cantilever	Dual	Gold	Through Hole	9	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Solder Eyelet(s)

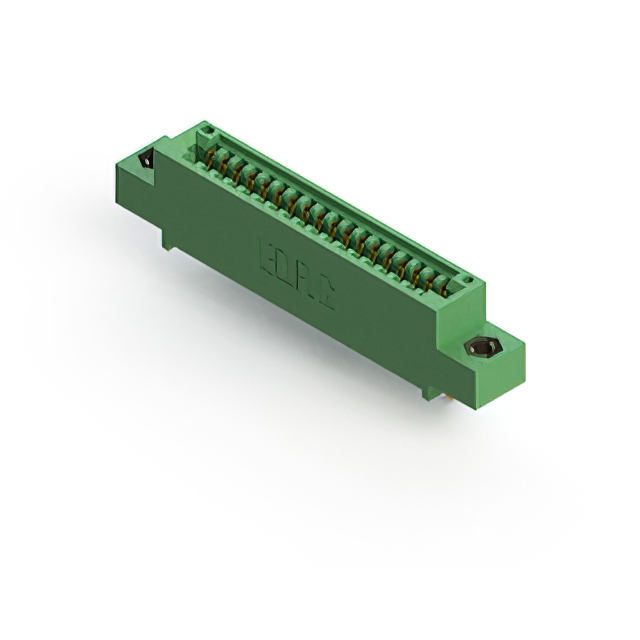

EDAC Inc. 845-018-544-407	Diallyl Phthalate (DAP)		Copper Alloy	125 °C	-40 C	18			Female	0.1 "	2.54 mm	Non Specified - Single Edge	Cantilever	Single	Gold	Through Hole		Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin		Wire Wrap	M3 Threaded Insert Top Mount Opening		1	18	1
EDAC Inc. 845-018-500-807	Diallyl Phthalate (DAP)	2	Copper Alloy	125 °C	-40 C	18			Female	0.1 "	2.54 mm	Non Specified - Dual Edge	Cantilever	Dual	Gold	Through Hole	9	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Solder Eyelet(s)	M3 Threaded Insert Top Mount Opening

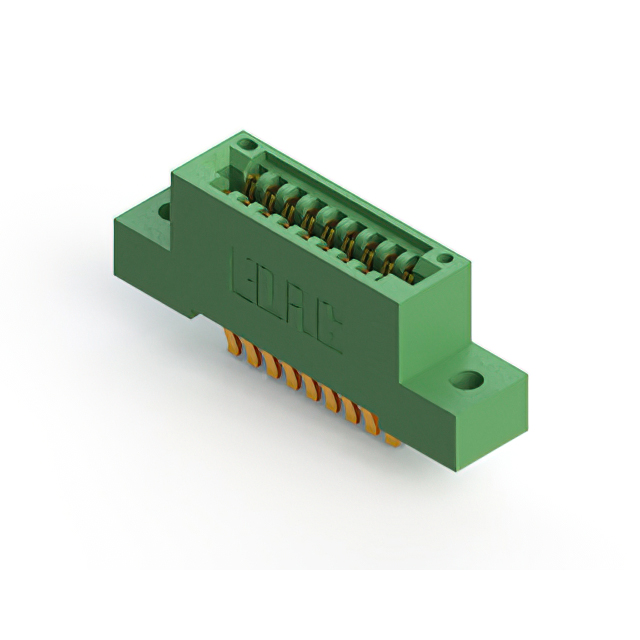

EDAC Inc. 845-018-560-202	Diallyl Phthalate (DAP)	2	Copper Alloy	125 °C	-40 C	18	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Non Specified - Dual Edge	Cantilever	Dual	Gold	Board Edge Straddle Mount	9	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Solder	Flush Mount Top Opening Unthreaded	Card Extender

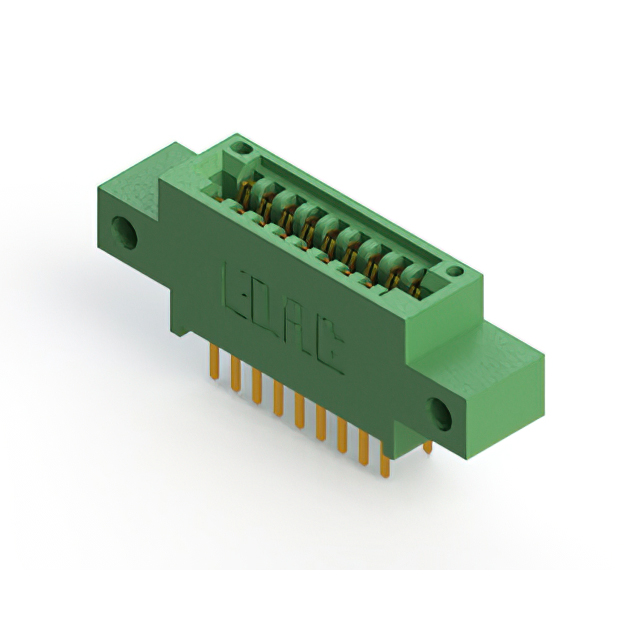

EDAC Inc. 845-018-520-812	Diallyl Phthalate (DAP)	2	Copper Alloy	125 °C	-40 C	18	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Non Specified - Dual Edge	Cantilever	Dual	Gold	Through Hole	9	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Solder	Side Mount Opening Unthreaded

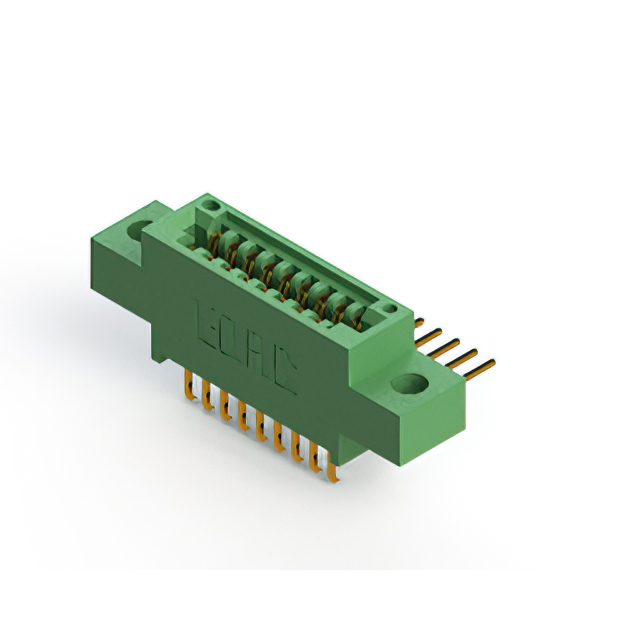

EDAC Inc. 845-018-559-804	Diallyl Phthalate (DAP)	2	Copper Alloy	125 °C	-40 C	18	3.96 mm	0.156 "	Female	0.1 "	2.54 mm	Non Specified - Dual Edge	Cantilever	Dual	Gold	Right Angle Through Hole	9	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Solder
