SDE1006A Series

Catalog

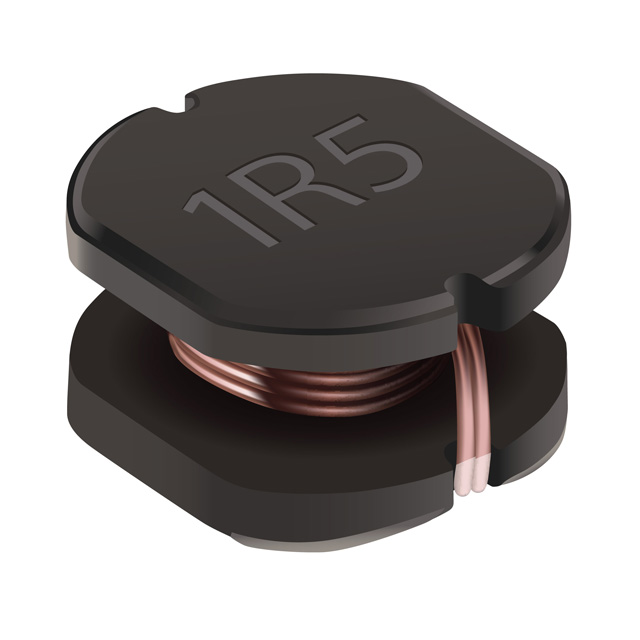

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SDE1006A SERIES, 3.9 H, 20%, UNSHIELDED, 0.027 OHM, 5.2 A ROHS COMPLIANT: YES

Part	Inductance Frequency - Test	Current - Saturation (Isat)	Frequency - Self Resonant	DC Resistance (DCR)	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Type	Ratings	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Material - Core	Tolerance	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]
Bourns Inc. SDE1006A-3R9M	1 MHz	5.7 A	40.6 MHz	27 mOhm	Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	5.2 A	0.228 "	5.8 mm	3.9 µH	Ferrite	20 %	Unshielded	125 °C	-40 C
Bourns Inc. SDE1006A-390M	1 MHz	2.1 A	12 MHz		Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	1.9 A	0.228 "	5.8 mm	39 µH	Ferrite	20 %	Unshielded	125 °C	-40 C	140 mOhm
Bourns Inc. SDE1006A-561K	1 kHz	0.6 A	3.3 MHz		Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	0.55 A	0.228 "	5.8 mm	560 µH	Ferrite	10 %	Unshielded	125 °C	-40 C	1.9 Ohm
Bourns Inc. SDE1006A-8R2M	1 MHz	4.3 A	27.9 MHz		Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	4.1 A	0.228 "	5.8 mm	8.2 µH	Ferrite	20 %	Unshielded	125 °C	-40 C	48 mOhm
Bourns Inc. SDE1006A-181K	1 kHz	1.1 A	6.1 MHz		Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	1 A	0.228 "	5.8 mm	180 µH	Ferrite	10 %	Unshielded	125 °C	-40 C	630 mOhm
Bourns Inc. SDE1006A-121K	1 kHz	1.3 A	6.6 MHz		Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	1.2 A	0.228 "	5.8 mm		Ferrite	10 %	Unshielded	125 °C	-40 C	400 mOhm
Bourns Inc. SDE1006A-221K	1 kHz	1 A	5.3 MHz	730 mOhm	Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	0.85 A	0.228 "	5.8 mm	220 µH	Ferrite	10 %	Unshielded	125 °C	-40 C
Bourns Inc. SDE1006A-180M	1 MHz	2.8 A	19.3 MHz		Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	3 A	0.228 "	5.8 mm	18 µH	Ferrite	20 %	Unshielded	125 °C	-40 C	90 mOhm
Bourns Inc. SDE1006A-821K	1 kHz	500 mA	2.2 MHz		Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	0.45 A	0.228 "	5.8 mm	820 µH	Ferrite	10 %	Unshielded	125 °C	-40 C	2.55 Ohm
Bourns Inc. SDE1006A-330M	1 MHz	2.4 A	12.1 MHz		Nonstandard	0.354 in	9 mm	0.394 in	10 mm	Surface Mount	Drum Core Wirewound	AEC-Q200	2.2 A	0.228 "	5.8 mm	33 µH	Ferrite	20 %	Unshielded	125 °C	-40 C	120 mOhm
