LD20W Series

Catalog

LED DRIVER AC/DC CC 12-36V 550MA

Part	Mounting Type	Voltage - Output [Min]	Voltage - Output [Max]	Dimming	Features	Voltage - Isolation	Current - Output (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Termination Style	Type	Topology	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Ratings	Voltage - Input (Max) [Max]	Weight	Weight	Standard Number	Voltage - Output	Efficiency	Dimming [Min]	Dimming [Max]	Weight [custom]	Weight [custom]

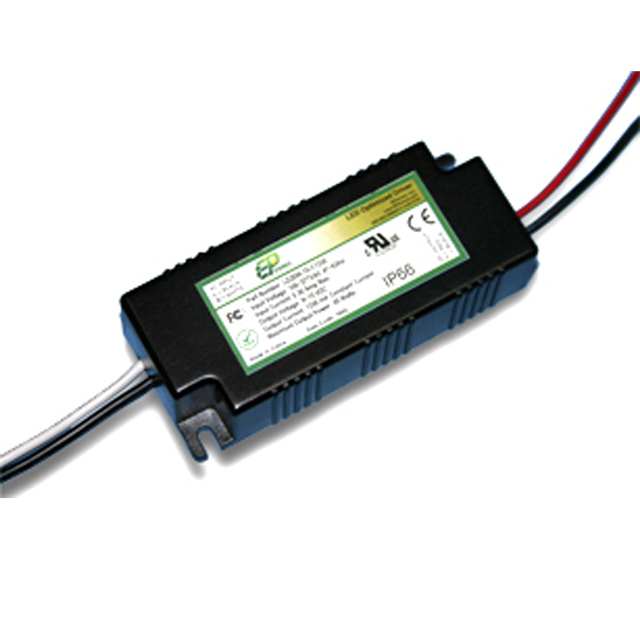

EPtronics, Inc. LD20W-36-C0550	Chassis Mount	12 V	36 V	Analog PWM	OCP OVP SCP	3750 VDC	550 mA	20 W	-30 ░C	60 °C	90 VAC	Wire Leads	Constant Current	AC DC Converter	CE cURus FCC	1.61 in	95 mm	40.9 mm	24.9 mm	3.74 "	0.98 in	1	IP66	305 VAC
EPtronics, Inc. LD20W-12	Chassis Mount			Non-Dimmable	OCP OVP SCP	3750 VDC	1.66 A	20 W	-30 ░C	60 °C	90 VAC	Wire Leads	Constant Voltage	AC DC Converter	CE cURus FCC	1.61 in	95.5 mm	40.9 mm	24.9 mm	3.76 in	0.98 in	1	IP66	305 VAC	166.92 g	0.368 lb	C22.2 UL 8750	12 V
EPtronics, Inc. LD20W-18-C1100	Chassis Mount	6 V	18 V	Analog PWM	OCP OVP SCP	3750 VDC		20 W	-30 ░C	60 °C	90 VAC	Wire Leads	Constant Current	AC DC Converter	CE cURus FCC	1.61 in	95 mm	40.9 mm	24.9 mm	3.74 "	0.98 in	1	IP66	305 VAC					80 %
EPtronics, Inc. LD20W-40-C0500-RD	Chassis Mount	20 V	40 V		OCP OVP SCP	3750 VDC	500 mA	20 W	-40 C	60 °C	100 VAC	Wire Leads	Constant Current	AC DC Converter	CE cURus FCC	1.61 in	95.5 mm	40.9 mm	24.9 mm	3.76 in	0.98 in	1	IP66	305 VAC	166.92 g	0.368 lb	C22.2 UL 8750			0 V	10 V
EPtronics, Inc. LD20W-43-C0460-RD	Chassis Mount	21 V	43 V		OCP OVP SCP	3750 VDC	460 mA	20 W	-40 C	60 °C	100 VAC	Wire Leads	Constant Current	AC DC Converter	CE cURus FCC	1.61 in	95.5 mm	40.9 mm	24.9 mm	3.76 in	0.98 in	1	IP66	305 VAC	166.92 g	0.368 lb	C22.2 UL 8750		83 %	0 V	10 V
EPtronics, Inc. LD20W-48-C0350-RD	Chassis Mount	24 V	48 V		OCP OVP SCP	3750 kV	350 mA	16.8 W	-40 C	60 °C	100 VAC	Wire Leads	Constant Current	AC DC Converter	CE cURus FCC	1.61 in	95.5 mm	40.9 mm	24.9 mm	3.76 in	0.98 in	1	IP66	305 VAC			C22.2 UL 8750		83 %	0 V	10 V	167.29 g	0.369 lb
EPtronics, Inc. LD20W-57-C0350-RD	Chassis Mount	28 V	57 V		OCP OVP SCP	3750 VDC	350 mA	20 W	-40 C	60 °C	100 VAC	Wire Leads	Constant Current	AC DC Converter	CE cURus FCC	1.61 in	95.5 mm	40.9 mm	24.9 mm	3.76 in	0.98 in	1	IP66	305 VAC	166.92 g	0.368 lb	C22.2 UL 8750		84 %	0 V	10 V
EPtronics, Inc. LD20W-22-C0700	Chassis Mount	7 V	22 V	Analog PWM	OCP OVP SCP	3750 VDC	700 mA	20 W	-30 ░C	60 °C	90 VAC	Wire Leads	Constant Current	AC DC Converter	CE cURus FCC	1.61 in	95 mm	40.9 mm	24.9 mm	3.74 "	0.98 in	1	IP66	305 VAC					81 %
