PSA08 Series

Catalog

DISPLAY 16SEG 0.8" SGL RED 18DIP

Part	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Test	Package / Case [x]	Package / Case [x]	Package / Case	Voltage - Forward (Vf) (Typ)	Number of Characters	Power Dissipation (Max) [Max]	Millicandela Rating	Display Type	Color	Common Pin
Kingbright PSA08-12EWA	627 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	20 mA	15.24 mm	0.6 in	18-DIP	2 V	1	75 mw	7.7 mcd	16-Segment Alphanumeric	Red	Common Anode
Kingbright PSA08-11GWA	565 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	20 mA	15.24 mm	0.6 in	18-DIP	2.2 V	1	62.5 mW	11 mcd	16-Segment Alphanumeric	Green	Common Anode
Kingbright PSA08-12YWA	590 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	20 mA	15.24 mm	0.6 in	18-DIP	2.1 V	1	75 mw	5.2 mcd	16-Segment Alphanumeric	Yellow	Common Anode

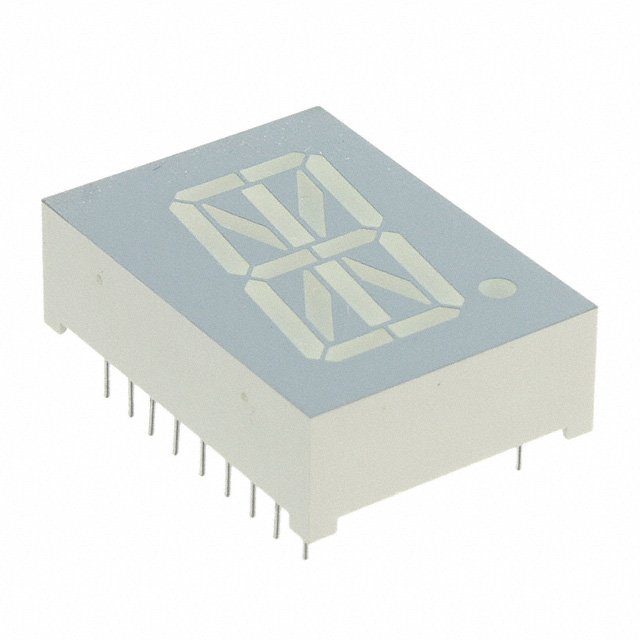

Kingbright PSA08-11SRWA	660 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	20 mA	15.24 mm	0.6 in	18-DIP	1.85 V	1	75 mw	27 mcd	16-Segment Alphanumeric	Red	Common Anode
Kingbright PSA08-11EWA	627 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	20 mA	15.24 mm	0.6 in	18-DIP	2 V	1	75 mw	7.7 mcd	16-Segment Alphanumeric	Red	Common Anode
Kingbright PSA08-12GWA	565 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	20 mA	15.24 mm	0.6 in	18-DIP	2.2 V	1	62.5 mW	11 mcd	16-Segment Alphanumeric	Green	Common Anode
Kingbright PSA08-12SRWA	660 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	20 mA	15.24 mm	0.6 in	18-DIP	1.85 V	1	75 mw	27 mcd	16-Segment Alphanumeric	Red	Common Anode
Kingbright PSA08-11YWA	590 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	20 mA	15.24 mm	0.6 in	18-DIP	2.1 V	1	75 mw	5.2 mcd	16-Segment Alphanumeric	Yellow	Common Anode

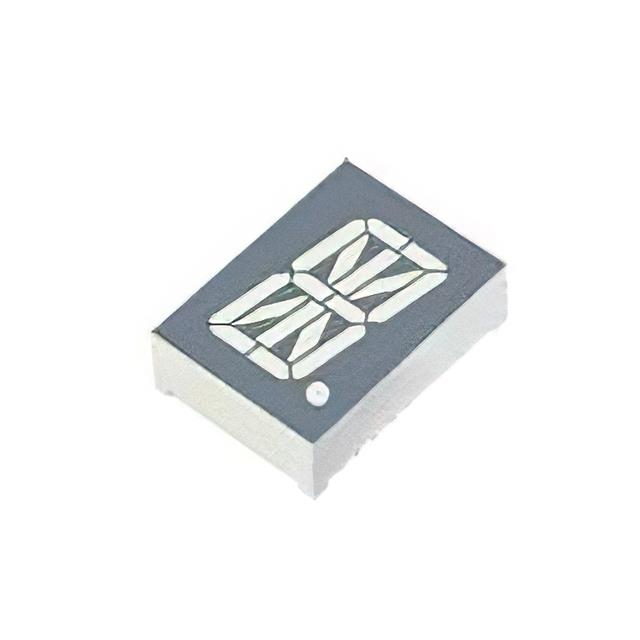

Kingbright PSA08-12SURKWA	645 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	10 mA	15.24 mm	0.6 in	18-DIP	1.85 V	1	75 mw	71 mcd	16-Segment Alphanumeric	Red	Common Anode
Kingbright PSA08-11SURKWA	645 nm	0.8 in	20.32 mm	8.5 mm	27.7 mm	20 mm	0.787 in	1.091 "	0.335 in	10 mA	15.24 mm	0.6 in	18-DIP	1.85 V	1	75 mw	71 mcd	16-Segment Alphanumeric	Red	Common Anode
