160913 Series

Catalog

CONN QC RCPT 11-13AWG 0.250

Part	Contact Material	Gender	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Tab Width	Tab Width	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Insulation	Mounting Type	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Tab Thickness	Tab Thickness	Terminal Type	Termination
TE Connectivity Raychem Cable Protection 160913-2	Brass	Female	0.756 in	19.2 mm	7.75 mm	0.305 in	6.35 mm	0.25 in	11 AWG	13 AWG	Tin	Non-Insulated	Free Hanging (In-Line)	3.3 mm	0.13 "	4.5 mm	0.177 in	0.032 in	0.81 mm	Standard	Crimp

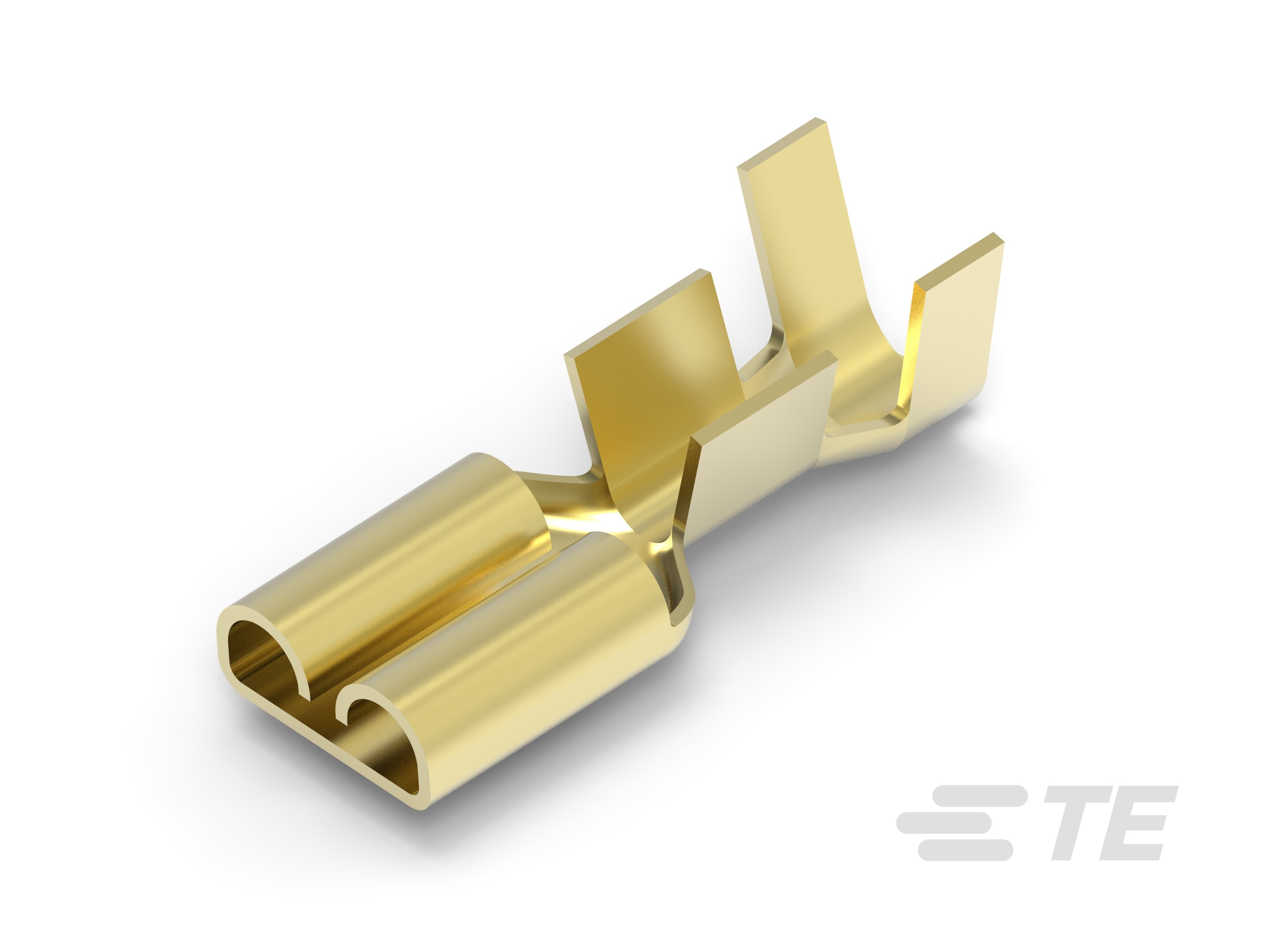

TE Connectivity Raychem Cable Protection 160913-1
TE Connectivity Raychem Cable Protection 160913-3	Phosphor Bronze	Female	0.756 in	19.2 mm	7.75 mm	0.305 in	6.35 mm	0.25 in	11 AWG	13 AWG		Non-Insulated	Free Hanging (In-Line)	3.3 mm	0.13 "	4.5 mm	0.177 in	0.032 in	0.81 mm	Standard	Crimp
TE Connectivity Raychem Cable Protection 160913-4	Phosphor Bronze	Female	0.756 in	19.2 mm	7.75 mm	0.305 in	6.35 mm	0.25 in	11 AWG	13 AWG	Tin	Non-Insulated	Free Hanging (In-Line)	3.3 mm	0.13 "	4.5 mm	0.177 in	0.032 in	0.81 mm	Standard	Crimp
