NCP1096 Series
Manufacturer: ON Semiconductor
Beta
⌘K
INTEGRATED POE-PD INTERFACE CONTROLLER WITH INTEGRATED HOT SWAP FET, IEEE 802.3BT, 90W
| Part | Package / Case [custom] | Package / Case | Package / Case [custom] | Auxiliary Sense | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Internal Switch(s) | Standards | Number of Channels | Mounting Type | Supplier Device Package | Current - Supply | Power - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Supplied Contents | Secondary Attributes | Contents | Utilized IC / Part | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

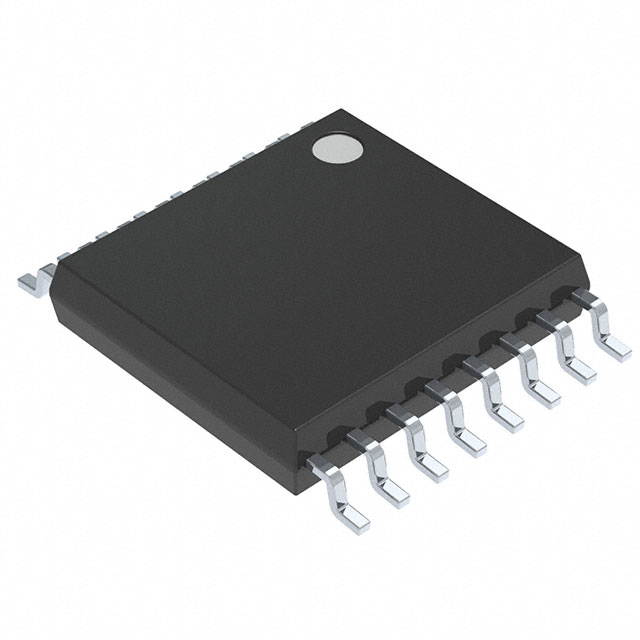

 ON Semiconductor | 0.173 " | 16-TSSOP Exposed Pad | 4.4 mm | Controller (PD) DC/DC | 0 V | 57 V | 802.3af (PoE) 802.3at (PoE+) 802.3bt | 1 | Surface Mount | 16-TSSOP-EP | 336.7 µA | 90 W | -40 °C | 125 ¯C | |||||||
 ON Semiconductor | Power Management | Board(s) | On-Board LEDs | Board(s) | NCP1096 | Power Over Ethernet (POE) |
