11_QMA-W50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

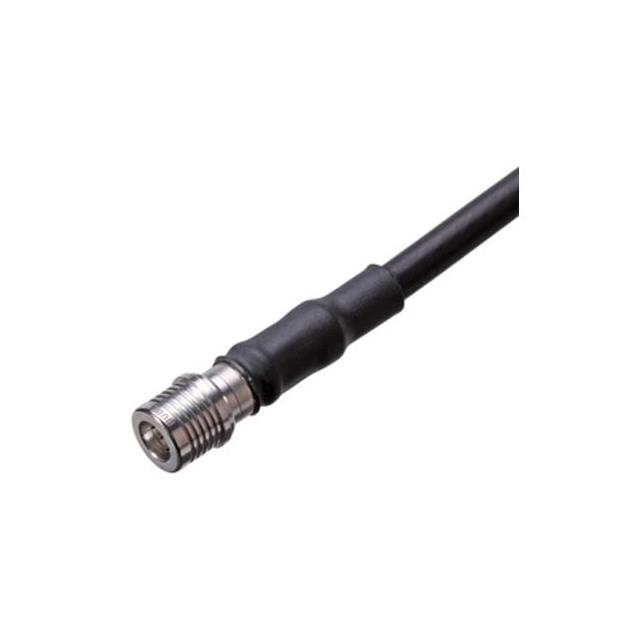

11_QMA-W50-4-3/133_NE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Body Finish | Voltage Rating | Body Material | Frequency - Max [Max] | Number of Ports | Connector Type | Housing Color | Impedance | Shield Termination | Cable Group | Contact Termination | Fastening Type | Mounting Type | Center Contact Material | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | -40 C | 105 ░C | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | 480 V | Brass | 18 GHz | 1 | Plug Male Pin | Silver | 50 Ohms | Crimp | LMR-240 | Solder | Push-Pull | Free Hanging (In-Line) | Brass | |
 Huber+Suhner, Inc. | -55 C | 125 °C | Polytetrafluoroethylene (PTFE) | Gold | 480 V | Stainless Steel | 6000 MHz | 1 | Plug Male Pin | Silver | 50 Ohms | Clamp | RG-B4C | Crimp | Push-Pull | Free Hanging (In-Line) | Beryllium Copper | ||
 Huber+Suhner, Inc. | -40 C | 105 ░C | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | 480 V | Brass | 18 GHz | 1 | Plug Male Pin | Silver | 50 Ohms | Crimp | RG-174 | Solder | Push-Pull | Free Hanging (In-Line) | Brass | 316 |
 Huber+Suhner, Inc. | -40 C | 105 ░C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Gold | 480 V | Brass | 18 GHz | 1 | Plug Male Pin | Gold | 50 Ohms | Solder | RG-141 | Solder | Snap-On | Free Hanging (In-Line) | Brass |
