ED350 Series

Catalog

TERM BLK 5POS SIDE ENTRY 5MM PCB

Part	Screw Thread	Contact Material - Plating	Clamp Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Housing Material	Mating Orientation	Positions Per Level	Color	Number of Levels	Current	Pitch	Pitch	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Voltage	Wire Termination

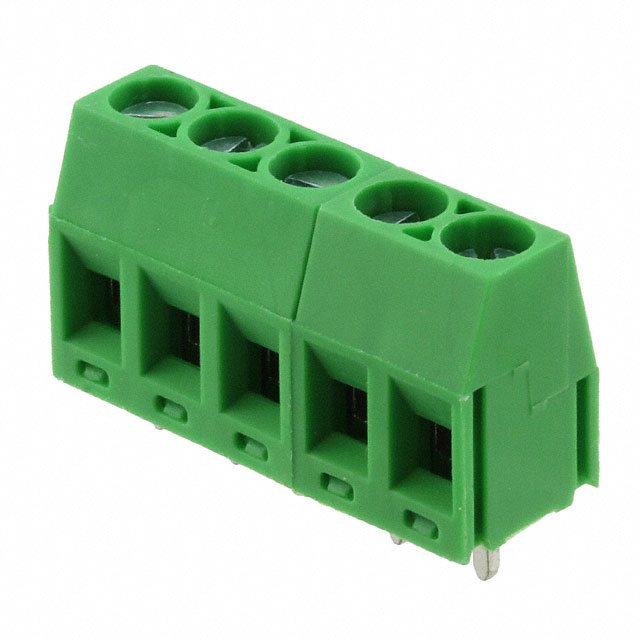

On Shore Technology Inc. ED350/5	M3	Brass	Copper	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Horizontal with Board	5	Green	1	16 A	0.197 in	5 mm	Through Hole	12 AWG	28 AWG	300 VDC	Screw - Rising Cage Clamp

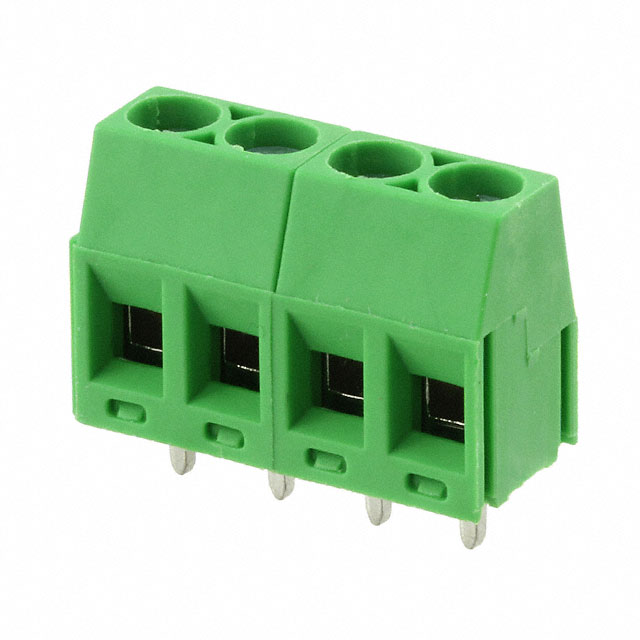

On Shore Technology Inc. ED350/4	M3	Brass	Copper	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Horizontal with Board	4	Green	1	16 A	0.197 in	5 mm	Through Hole	12 AWG	28 AWG	300 VDC	Screw - Rising Cage Clamp

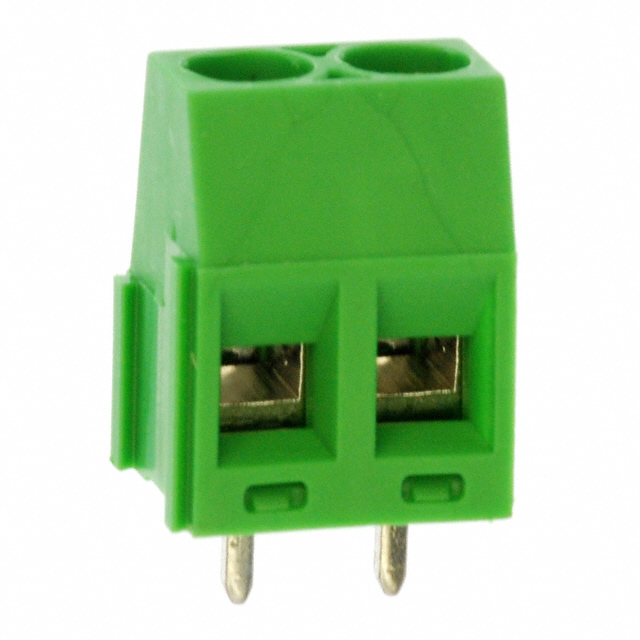

On Shore Technology Inc. ED350/2	M3	Brass	Copper	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Horizontal with Board	2	Green	1	16 A	0.197 in	5 mm	Through Hole	12 AWG	28 AWG	300 VDC	Screw - Rising Cage Clamp
