92140 Series

Catalog

CONN PCMCIA CARD PUSH-PULL R/A

Part	Contact Finish	Mounting Feature	Number of Positions	Mounting Type	Features	Height Above Board	Height Above Board	Card Type	Insertion, Removal Method	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) 92140-500LF	Gold	Reverse - Bottom	68	Through Hole Right Angle	Card Guides	5.8 mm	0.228 in	PCMCIA	Pull Out Push In	3 Áin	0.076 Ám
Amphenol ICC (FCI) 92140-501LF	Gold	Reverse - Bottom	68	Surface Mount	Card Guides	5.8 mm	0.228 in	PCMCIA	Pull Out Push In	30 Áin	0.76 Ám
Amphenol ICC (FCI) 92140-505LF	Gold	Reverse - Bottom	68	Through Hole Right Angle	Card Guides	5.8 mm	0.228 in	PCMCIA	Pull Out Push In	3 Áin	0.076 Ám
Amphenol ICC (FCI) 92140-540LF	Gold	Reverse - Bottom	68	Through Hole Right Angle	Card Guides	7.8 mm	0.307 in	PCMCIA	Pull Out Push In	3 Áin	0.076 Ám
Amphenol ICC (FCI) 92140-001LF	Gold	Normal Standard - Top	68	Surface Mount Right Angle	Card Guides	5.8 mm	0.228 in	PCMCIA	Pull Out Push In
Amphenol ICC (FCI) 92140-026HLF	Gold	Normal Standard - Top	68	Through Hole Right Angle				PCMCIA	Pull Out Push In	30 Áin	0.76 Ám
Amphenol ICC (FCI) 92140-020LF	Gold	Normal Standard - Top	68	Through Hole Right Angle	Card Guides	10.8 mm	0.425 in	PCMCIA	Pull Out Push In	3 Áin	0.076 Ám
Amphenol ICC (FCI) 92140-000HLF	Gold	Normal Standard - Top	68	Through Hole Right Angle	Board Lock Card Guide	5.8 mm	0.228 in	PCMCIA	Pull Out Push In	3 Áin	0.076 Ám
Amphenol ICC (FCI) 92140-040LF	Gold	Normal Standard - Top	68	Through Hole Right Angle	Card Guides	7.8 mm	0.307 in	PCMCIA	Pull Out Push In	3 Áin	0.076 Ám

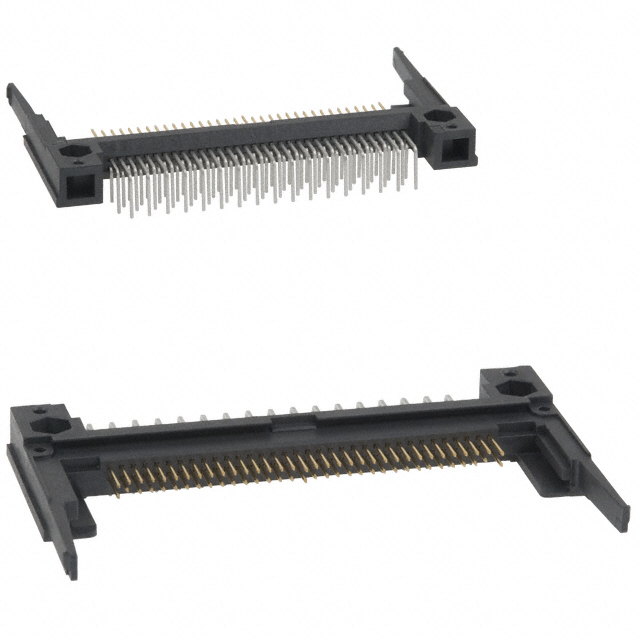

Amphenol ICC (FCI) 92140-000LF	Gold	Normal Standard - Top	68	Through Hole Right Angle	Card Guides	5.8 mm	0.228 in	PCMCIA	Pull Out Push In	3 Áin	0.076 Ám
