CTS2.5 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

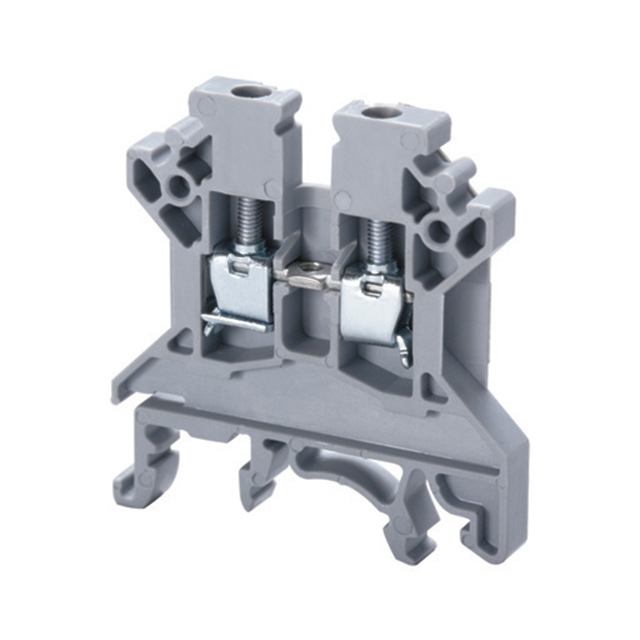

CONN TERM BLK FEED THRU12-22AWG
| Part | Termination Style | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Material - Insulation | Stripping Length | Current - UL | Voltage - UL | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Current - IEC | Number of Positions | Color | Number of Levels | Type | Voltage - IEC | Terminal - Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Screw | 0.2 mm² | 2.5 mm² | Polyamide (PA66) Nylon 6/6 | 8 mm | 25 A | 600 V | 12 AWG | 22 AWG | 24 A | 2 | Gray | 1 | Feed Through | 1 kV | 5 mm |
Altech Corporation | Screw | 0.2 mm² | 2.5 mm² | Polyamide (PA66) Nylon 6/6 | 8 mm | 25 A | 600 V | 12 AWG | 22 AWG | 24 A | 2 | Gray | 1 | Feed Through | 1 kV | 5 mm |
