LWC75 Series

Catalog

PUSH BARB MOUNT LATCHING WIRE CLIP ROHS COMPLIANT: YES

Part	Height [z]	Height [z]	Width	Width	Opening Size [z]	Opening Size	Color	Length	Length	Mounting Type	Type	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Material Flammability Rating	Material	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Type Attributes	Adhesive	Width [x]	Width [x]

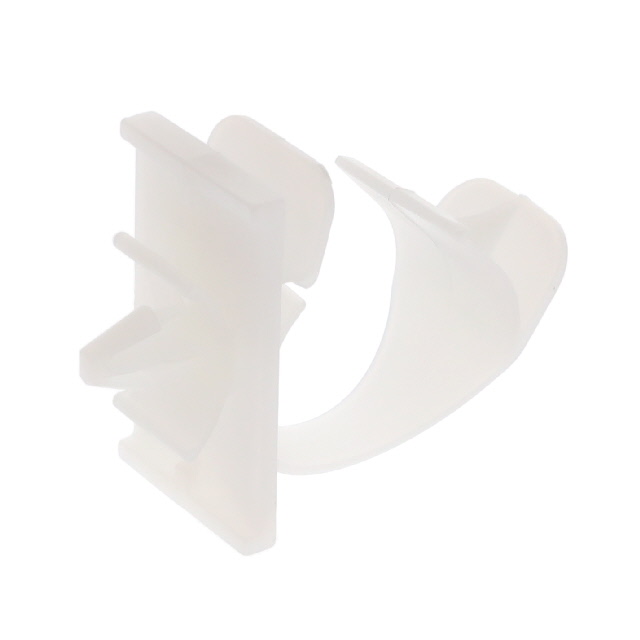

Panduit Corp LWC75-H25-L	24.64 mm	0.97 in	22.1 mm	0.87 in	0.75 in	19.05 mm	Natural	1.45 in	36.83 mm	Arrowhead Winged	Clip Wire Saddle on Base	0.025 in	2.67 mm	0.64 mm	0.105 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	0.187 in	0.25 in	4.75 mm	6.35 mm	Locking Round
Panduit Corp LWC75-A-L14	22.86 mm	0.9 in			0.75 in	19.05 mm	Gray	1.48 in	37.59 mm	Adhesive	Clip Wire Saddle on Base						Polyamide (PA66) Nylon 6/6					Locking Round	Rubber Based	31.5 mm	1.24 in
