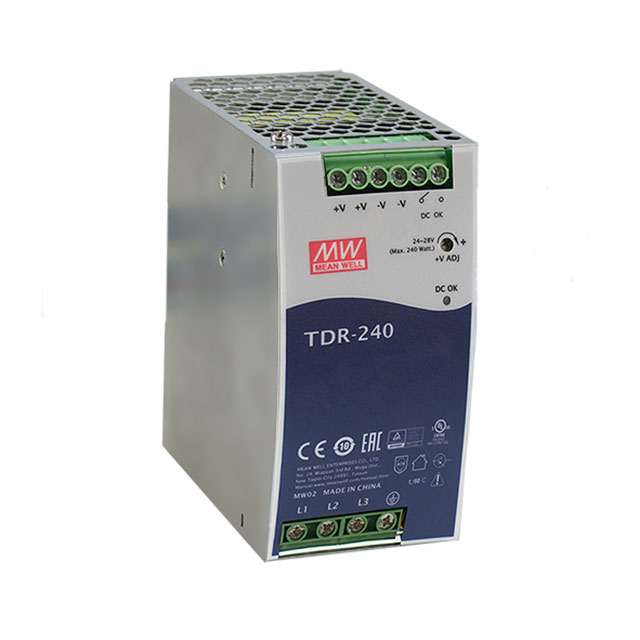

TDR-240 Series

Catalog

AC/DC DIN RAIL SUPPLY 48V 240W

Part	Power (Watts)	DC Voltage - Input (Max) [Max]	Current - Output (Max)	Input Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Approval Agency	Number of Outputs	Applications	Features	Voltage - Isolation	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Current - Output (Max) [Max]
MEAN WELL USA Inc. TDR-240-48	240 Watts	780 V	5 A	AC or DC	2.48 in	4.93 in	125.2 mm	4.47 "	113.5 mm	63 mm	48 V	CE EAC TUV UL	1	Laboratory	Adjustable Output PFC	4.87 kV	340 VAC	550 VAC	480 V	-30 °C	70 °C	92 %
MEAN WELL USA Inc. TDR-240-24	240 Watts	780 V		AC or DC	2.48 in	4.93 in	125.2 mm	4.47 "	113.5 mm	63 mm	24 V	CE EAC TUV UL	1	Laboratory	Adjustable Output PFC	4.87 kV	340 VAC	550 VAC	480 V	-30 °C	70 °C	92 %	10 A
