AON77 Series
Manufacturer: Alpha & Omega Semiconductor Inc.
Beta
⌘K

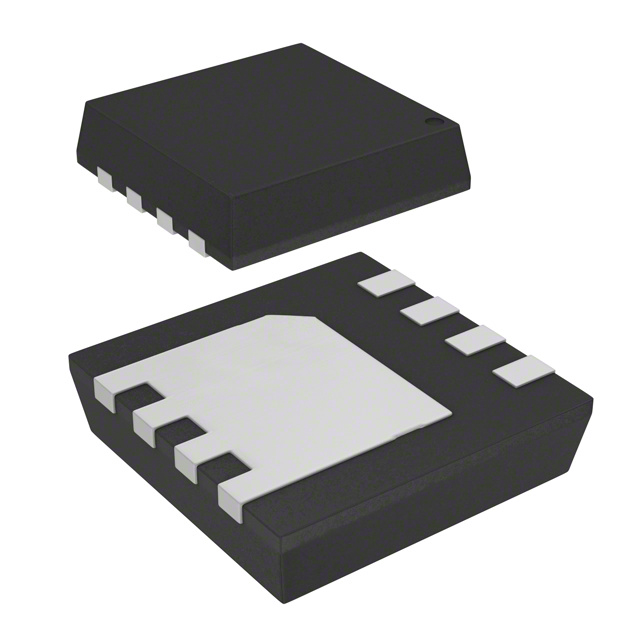

MOSFET N-CH 30V 30A/32A 8DFN
| Part | Technology | Vgs(th) (Max) @ Id | Current - Continuous Drain (Id) @ 25°C | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Drain to Source Voltage (Vdss) | Input Capacitance (Ciss) (Max) @ Vds [Max] | FET Type | Package / Case | Gate Charge (Qg) (Max) @ Vgs [Max] | Rds On (Max) @ Id, Vgs | Power Dissipation (Max) | Drive Voltage (Max Rds On, Min Rds On) | Vgs (Max) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Alpha & Omega Semiconductor Inc. | MOSFET (Metal Oxide) | 2.2 V | 30 A 32 A | 8-DFN-EP (3x3) | 150 °C | -55 °C | 30 V | 1990 pF | N-Channel | 8-PowerVDFN | 40 nC | 3.2 mOhm | 4.2 W 30 W | 4.5 V 10 V | 20 V | Surface Mount |
 Alpha & Omega Semiconductor Inc. | MOSFET (Metal Oxide) | 2.2 V | 33 A 75 A | 8-DFN-EP (3.3x3.3) | 150 °C | -55 °C | 25 V | 5520 pF | N-Channel | 8-PowerWDFN | 76 nC | 2 mOhm | 4.1 W 34.5 W | 4.5 V 10 V | 16 V | Surface Mount |
