G-INS-PG7 Series

Catalog

CABLE GLAND 3-6.5MM PG7 POLYAMID

Part	Ingress Protection	Includes	Type	Thread Length	Thread Length	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Color	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]

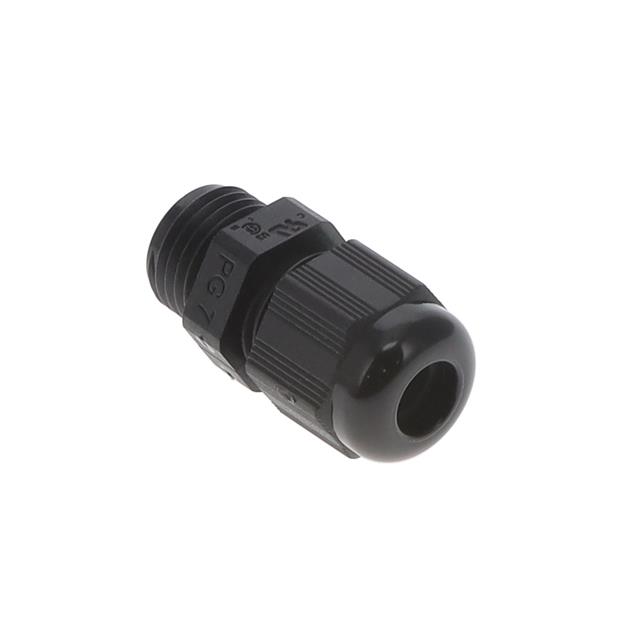

Phoenix Contact 1424495	IP68 - Dust Tight Waterproof	Seal	Cable Gland	0.315 "	8 mm	Polyamide (PA) Nylon	3 mm	0.118 in	PG7	Black	-40 C	100 °C	6.5 mm	0.256 in

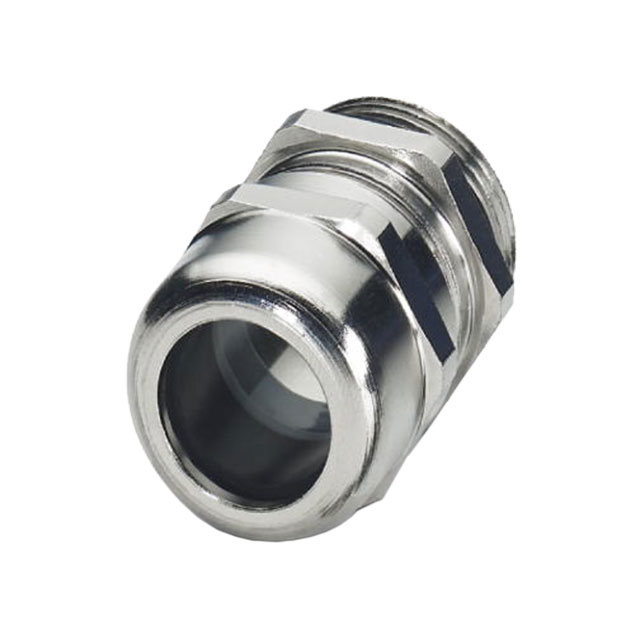

Phoenix Contact 1411170	IP66 IP68 IP69	O-Ring Seal	Cable Gland	0.236 in	6 mm	Brass Nickel Plated	3 mm	0.118 in	PG7	Silver	-40 C	100 °C	6.5 mm	0.256 in
Phoenix Contact 1411140	IP66 IP68	Seal	Cable Gland	0.315 "	8 mm	Polyamide (PA) Nylon	3 mm	0.118 in	PG7	Gray	-40 C	100 °C	6.5 mm	0.256 in
