LMK00101 Series

Ultra-low jitter LVCMOS fanout buffer/level translator with universal input and 10 outputs

Catalog

Ultra-low jitter LVCMOS fanout buffer/level translator with universal input and 10 outputs

Part	Supplied Contents	Type	Utilized IC / Part	Function	Frequency - Max [Max]	Ratio - Input:Output	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Circuits	Output	Supplier Device Package	Input	Differential - Input:Output

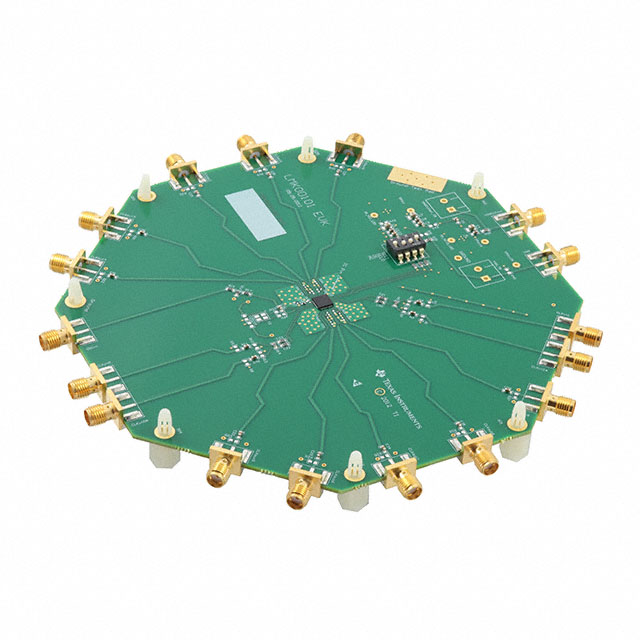

Texas Instruments LMK00101BEVAL/NOPB	Board(s)	Timing	LMK00101	Clock Distribution
Texas Instruments LMK00101SQ/NOPB		Fanout Buffer (Distribution) Multiplexer Translator			200 MHz	3:10	85 °C	-40 °C	Surface Mount	3.45 V	2.375 V	1	LVCMOS LVTTL	32-WQFN (5x5)	Crystal HCSL LVCMOS LVDS LVPECL LVTTL SSTL	Yes/No
Texas Instruments LMK00101SQE/NOPB		Fanout Buffer (Distribution) Multiplexer Translator			200 MHz	3:10	85 °C	-40 °C	Surface Mount	3.45 V	2.375 V	1	LVCMOS LVTTL	32-WQFN (5x5)	Crystal HCSL LVCMOS LVDS LVPECL LVTTL SSTL	Yes/No

Catalog

Ultra-low jitter LVCMOS fanout buffer/level translator with universal input and 10 outputs

Key Features

• 10 LVCMOS/LVTTL Outputs, DC to 200 MHzUniversal InputLVPECLLVDSHCSLSSTLLVCMOS / LVTTLCrystal Oscillator InterfaceCrystal Input Frequency: 10 to 40 MHzOutput Skew: 6 psAdditive Phase Jitter30 fs at 156.25 MHz (12 kHz to 20 MHz)Low Propagation DelayOperates with 3.3 or 2.5 V Core Supply VoltageAdjustable Output Power Supply1.5 V, 1.8 V, 2.5 V, and 3.3 V For Each Bank32 pin WQFN Package 5.0 × 5.0 × 0.8 mm10 LVCMOS/LVTTL Outputs, DC to 200 MHzUniversal InputLVPECLLVDSHCSLSSTLLVCMOS / LVTTLCrystal Oscillator InterfaceCrystal Input Frequency: 10 to 40 MHzOutput Skew: 6 psAdditive Phase Jitter30 fs at 156.25 MHz (12 kHz to 20 MHz)Low Propagation DelayOperates with 3.3 or 2.5 V Core Supply VoltageAdjustable Output Power Supply1.5 V, 1.8 V, 2.5 V, and 3.3 V For Each Bank32 pin WQFN Package 5.0 × 5.0 × 0.8 mm

Description

The LMK00101 is a high performance, low noise LVCMOS fanout buffer which can distribute 10 ultra-low jitter clocks from a differential, single ended, or crystal input. The LMK00101 supports synchronous output enable for glitch free operation. The ultra low-skew, low-jitter, and high PSRR make this buffer ideally suited for various networking, telecom, server and storage area networking, RRU LO reference distribution, medical and test equipment applications. The core voltage can be set to 2.5 or 3.3 V, while the output voltage can be set to 1.5, 1.8, 2.5 or 3.3 V. The LMK00101 can be easily configured through pin programming. The LMK00101 is a high performance, low noise LVCMOS fanout buffer which can distribute 10 ultra-low jitter clocks from a differential, single ended, or crystal input. The LMK00101 supports synchronous output enable for glitch free operation. The ultra low-skew, low-jitter, and high PSRR make this buffer ideally suited for various networking, telecom, server and storage area networking, RRU LO reference distribution, medical and test equipment applications. The core voltage can be set to 2.5 or 3.3 V, while the output voltage can be set to 1.5, 1.8, 2.5 or 3.3 V. The LMK00101 can be easily configured through pin programming.
