M2012SD Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Termination Style	Ingress Protection	Mounting Type	Voltage Rating - AC	Features	Actuator Type	Circuit	Bushing Thread	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Illumination	Bushing Thread	Actuator Length [x]
NKK Switches M2012SD3A03	Brass Chrome Plated	25000 Steps	PC Pin	IP67 - Dust Tight Waterproof	Panel Mount	125 V	Epoxy Sealed Terminals	Standard Round	SPDT	1/4-40	6.5 mm	30 V	On-On	85 °C	-30 ░C	4 A 6 A	Non-Illuminated
NKK Switches M2012SD8G01	Brass Chrome Plated	25000 Steps	Solder Lug	IP67 - Dust Tight Waterproof	Panel Mount	28 V	Epoxy Sealed Terminals	Standard Round	SPDT	M6	6.5 mm	28 V	On-On	85 °C	-30 ░C	0.4 VA	Non-Illuminated	0.75
NKK Switches M2012SD3W01-CA	Brass Chrome Plated	25000 Steps	Solder Lug	IP67 - Dust Tight Waterproof	Panel Mount	125 V	Black Cap	Standard Round with Cap	SPDT	1/4-40	6.5 mm	30 V	On-On	85 °C	-30 ░C	4 A 6 A	Non-Illuminated		13.1 mm

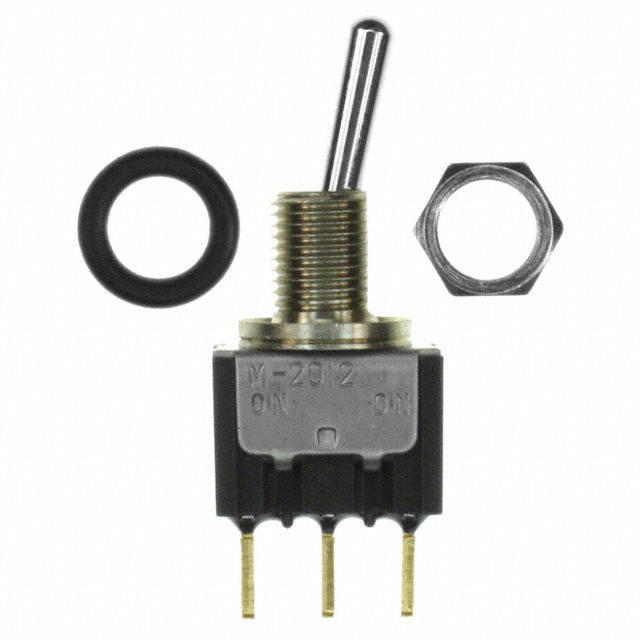

NKK Switches M2012SD3G03	Brass Chrome Plated	50000 Cycles	PC Pin	IP67 - Dust Tight Waterproof	Panel Mount	28 V	Epoxy Sealed Terminals	Standard Round	SPDT	1/4-40	6.5 mm	28 V	On-On	85 °C	-30 ░C	0.4 VA	Non-Illuminated

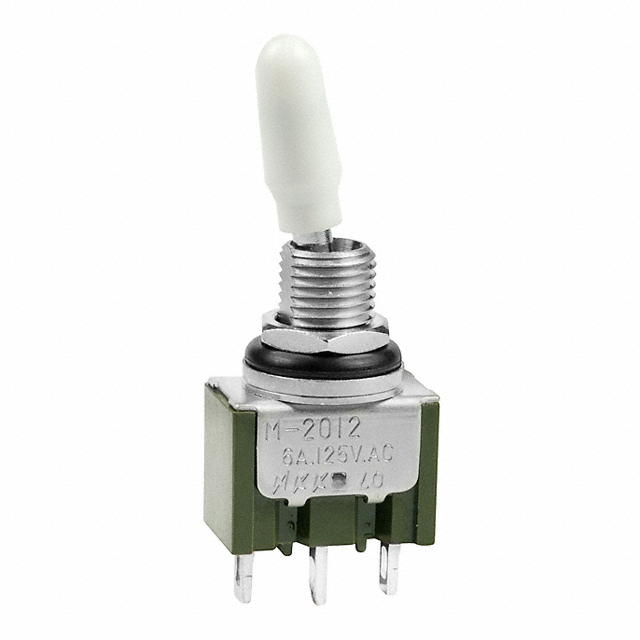

NKK Switches M2012SD3W01-BB	Brass Chrome Plated	25000 Steps	Solder Lug	IP67 - Dust Tight Waterproof	Panel Mount	125 V	White Cap	Standard Round with Cap	SPDT	1/4-40	6.5 mm	30 V	On-On	85 °C	-30 ░C	4 A 6 A	Non-Illuminated		13.5 mm
NKK Switches M2012SD3W01-BA	Brass Chrome Plated	25000 Steps	Solder Lug	IP67 - Dust Tight Waterproof	Panel Mount	125 V	Black Cap	Standard Round with Cap	SPDT		6.5 mm	30 V	On-On	85 °C	-30 ░C	4 A 6 A	Non-Illuminated

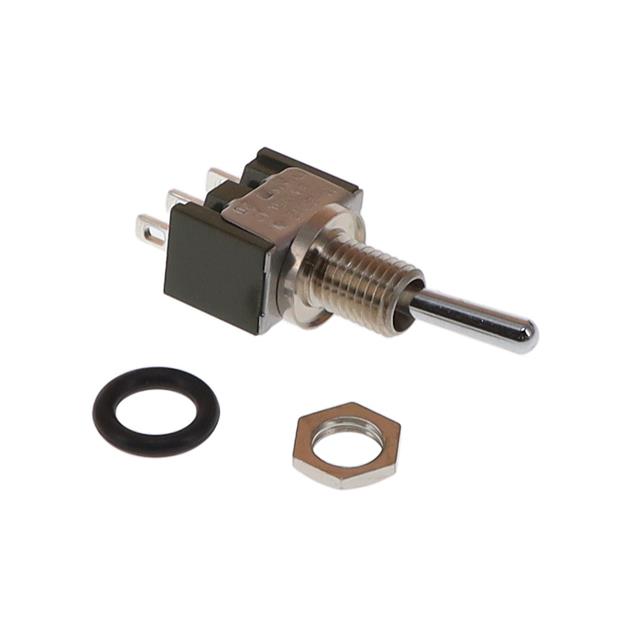

NKK Switches M2012SD8W01	Brass Chrome Plated	25000 Steps	Solder Lug	IP67 - Dust Tight Waterproof	Panel Mount	125 V	Epoxy Sealed Terminals	Standard Round	SPDT	M6	6.5 mm	30 V	On-On	85 °C	-30 ░C	4 A 6 A	Non-Illuminated	0.75
NKK Switches M2012SD3A01	Brass Chrome Plated	25000 Steps	Solder Lug	IP67 - Dust Tight Waterproof	Panel Mount	125 V	Epoxy Sealed Terminals	Standard Round	SPDT	1/4-40	6.5 mm	30 V	On-On	85 °C	-30 ░C	4 A 6 A	Non-Illuminated

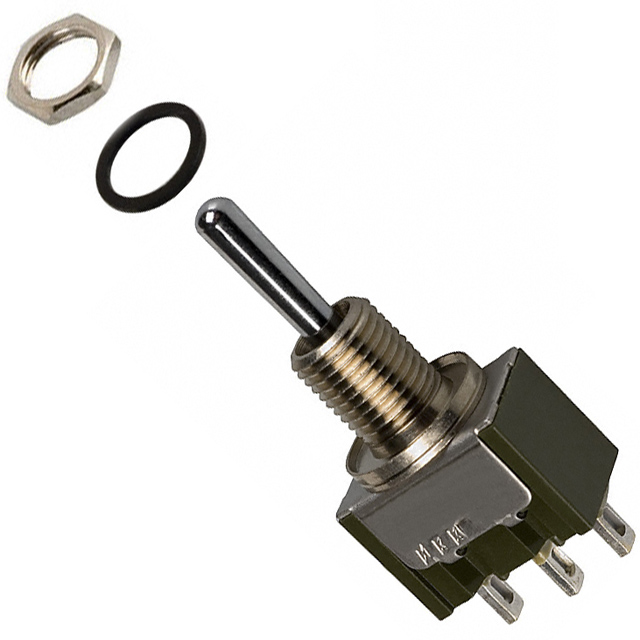

NKK Switches M2012SD3W01	Brass Chrome Plated	25000 Steps	Solder Lug	IP67 - Dust Tight Waterproof	Panel Mount	125 V	Epoxy Sealed Terminals	Standard Round	SPDT	1/4-40	6.5 mm	30 V	On-On	85 °C	-30 ░C	4 A 6 A	Non-Illuminated
NKK Switches M2012SD3G03-BA	Brass Chrome Plated	50000 Cycles	PC Pin	IP67 - Dust Tight Waterproof	Panel Mount	28 V	Black Cap	Standard Round with Cap	SPDT	1/4-40	6.5 mm	28 V	On-On	85 °C	-30 ░C	0.4 VA	Non-Illuminated		13.5 mm
