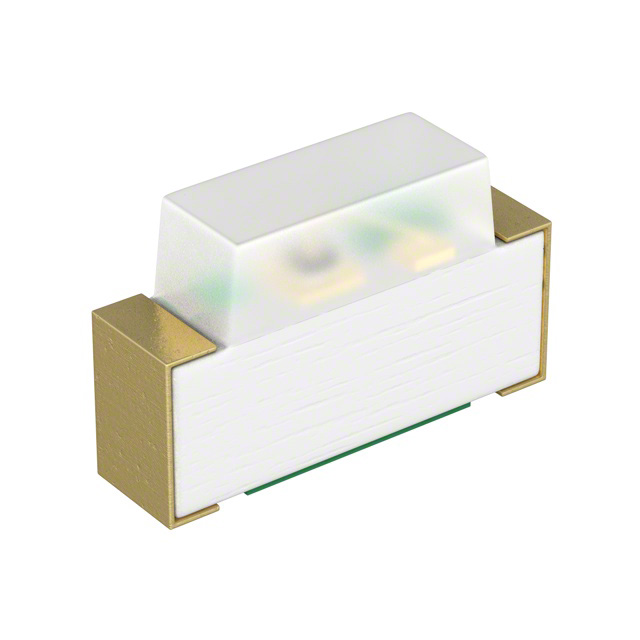

APA1606 Series

Catalog

LED GREEN CLEAR 2SMD R/A

Part	Package / Case	Viewing Angle	Configuration	Mounting Type	Wavelength - Dominant	Wavelength - Peak	Current - Test	Lens Size [y]	Lens Size [x]	Lens Transparency	Supplier Device Package	Height (Max) [z]	Color	Lens Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]

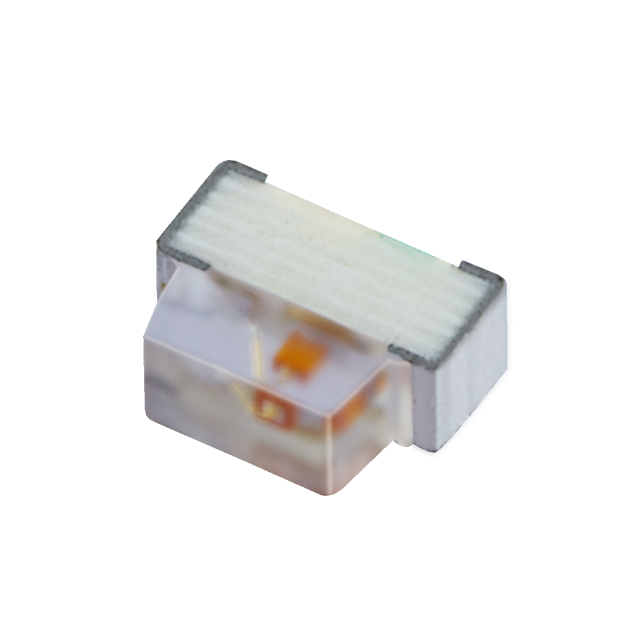

Kingbright APA1606ZGC/G	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount	525 nm	520 nm	20 mA	0.6 mm	1.1 mm	Clear	2-SMD	0.7 mm	Green	Colorless	3.2 V	650 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm
Kingbright APA1606CGCK	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount	570 nm		20 mA	0.6 mm	1.2 mm	Clear	Chip LED		Green	Colorless	2.1 V	50 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm	0.6 mm
Kingbright APA1606QBC/D	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount	465 nm	460 nm	20 mA	0.6 mm	1.2 mm	Clear	Chip LED		Blue	Colorless	3.3 V	80 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm	0.6 mm
Kingbright APA1606SECK	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount	601 nm	610 nm	20 mA	0.6 mm	1.2 mm	Clear	Chip LED			Colorless	2.1 V	180 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm	0.6 mm

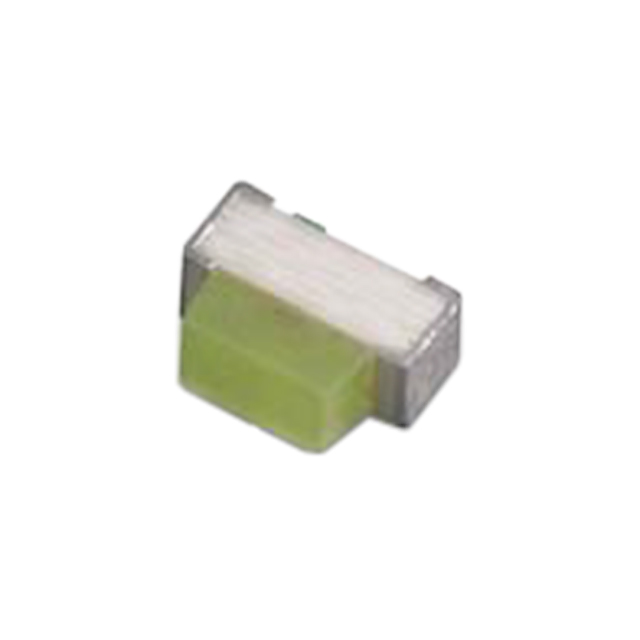

Kingbright APA1606VRBXF/A-5MAV	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount			5 mA	0.6 mm	1.1 mm	Diffused	Chip LED	0.7 mm	Blue	Yellow		120 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm
Kingbright APA1606SYCK	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount	590 nm	590 nm	20 mA	0.6 mm	1.2 mm	Clear	Chip LED		Yellow	Colorless	2 V	150 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm	0.6 mm
Kingbright APA1606ZGC	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount	525 nm	515 nm	20 mA	0.6 mm	1.2 mm	Clear	Chip LED		Green	Colorless	3.3 V	400 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm	0.6 mm
Kingbright APA1606SURCK	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount	630 nm	645 nm	20 mA	0.6 mm	1.2 mm	Clear	Chip LED		Red	Colorless	1.95 V	80 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm	0.6 mm
Kingbright APA1606ZGCK	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount	525 nm	515 nm	20 mA	0.6 mm	1.1 mm	Clear	2-SMD	0.7 mm	Green	Colorless	3.3 V	300 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm
Kingbright APA1606PBC/A	2-SMD No Lead	110 °	Standard	Right Angle Surface Mount	470 nm	468 nm	20 mA	0.6 mm	1.2 mm	Clear	Chip LED		Blue	Colorless	3.2 V	60 mcd	Rectangle with Flat Top	1.2 mm	1.6 mm	0.6 mm
