TMW-V86 Series

Catalog

BUZZER PIEZO 35.8MM PNL MNT

Part	Technology	Current - Supply [Max] [x]	Current - Supply [Min] [x]	Operating Mode	Port Location	Mounting Type	Driver Circuitry	Ingress Protection	Sound Pressure Level (SPL)	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Termination	Termination	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Input Type	Current - Supply [Max]	Current - Supply [Min]	Size / Dimension [diameter]
Floyd Bell Inc TMW-V86-530-Q(F)	Piezo	10 mA	2 mA	Warble Fast	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	5 VDC	30 V	UL UR	Quick Connect Tab	0.25 "	6.35 mm	1.25 "	31.75 mm	2.9 kHz	35.8 mm	1.409 in	DC

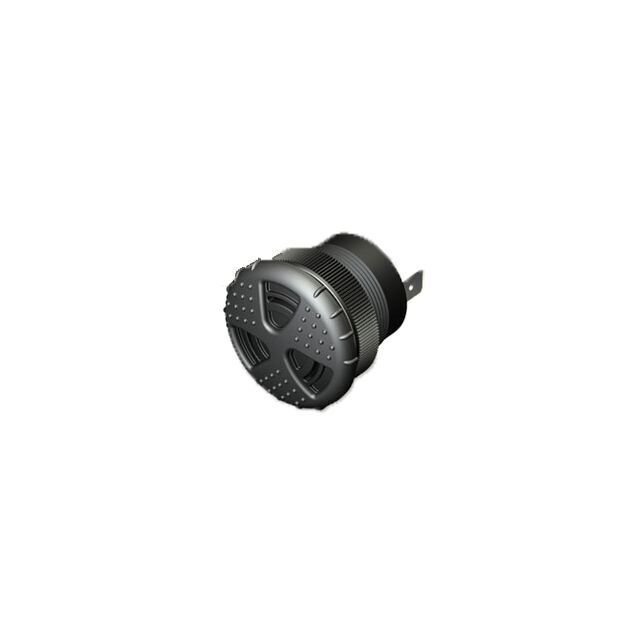

Floyd Bell Inc TMW-V86-201-S(S)	Piezo			Slow Warble	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	30 VDC	120 V	UL UR	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	1.25 "	31.75 mm	2.9 kHz	35.8 mm	1.409 in	AC	15 mA	2 mA
Floyd Bell Inc TMW-V86-530-Q(S)	Piezo	10 mA	2 mA	Slow Warble	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	5 VDC	30 V	UL UR	Quick Connect Tab	0.25 "	6.35 mm	1.25 "	31.75 mm	2.9 kHz		35.81 mm	DC			1.41 in
Floyd Bell Inc TMW-V86-948-Q(S)	Piezo	10 mA	2 mA	Slow Warble	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	9 V	48 V	UL UR	Quick Connect Tab	0.25 "	6.35 mm	1.25 "	31.75 mm	2.9 kHz		35.81 mm	DC			1.41 in
Floyd Bell Inc TMW-V86-530-W(S)	Piezo	10 mA	2 mA	Slow Warble	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	5 VDC	30 V	UL UR	Wire Leads			1.25 "	31.75 mm	2.9 kHz		35.81 mm	DC			1.41 in
Floyd Bell Inc TMW-V86-530-W(F)	Piezo	10 mA	2 mA	Warble Fast	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	5 VDC	30 V	UL UR	Wire Leads			1.25 "	31.75 mm	2.9 kHz		35.81 mm	DC			1.41 in
Floyd Bell Inc TMW-V86-531-Q(S)	Piezo			Slow Warble	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	5 VDC	24 V	UL UR	Quick Connect Tab	0.25 "	6.35 mm	1.25 "	31.75 mm	2.9 kHz		35.81 mm		15 mA	2 mA	1.41 in
Floyd Bell Inc TMW-V86-201-Q(S)	Piezo			Slow Warble	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	30 VDC	120 V	UL UR	Quick Connect Tab	0.25 "	6.35 mm	1.25 "	31.75 mm	2.9 kHz		35.81 mm	AC	15 mA	2 mA	1.41 in
Floyd Bell Inc TMW-V86-201-Q(F)	Piezo			Warble Fast	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	30 VDC	120 V	UL UR	Quick Connect Tab	0.25 "	6.35 mm	1.25 "	31.75 mm	2.9 kHz		35.81 mm	AC	15 mA	2 mA	1.41 in
Floyd Bell Inc TMW-V86-531-S(S)	Piezo			Slow Warble	Top	Panel Mount	Indicator Internally Driven	IP68 - Dust Tight Waterproof	95 dB	5 VDC	24 V	UL UR	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	1.25 "	31.75 mm	2.9 kHz		35.81 mm		15 mA	2 mA	1.41 in
